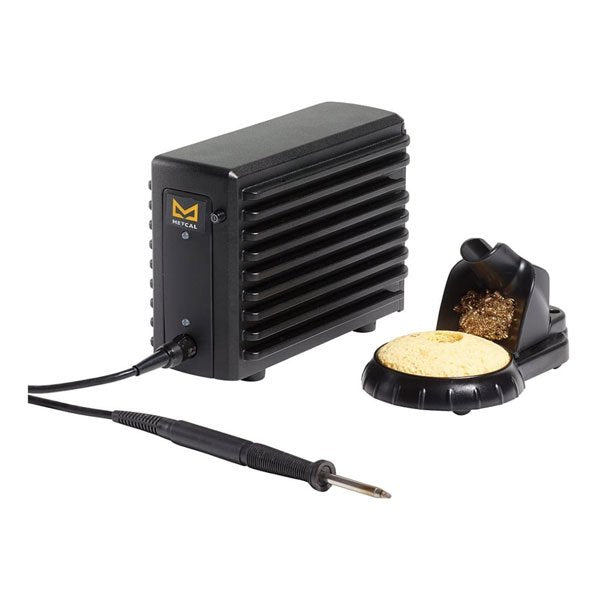

Metcal MFR-1160 SIngle Output Soldering & Rework System (Metal SSC Cartridge)

SKU: METMFR-1160

MFR-1160

$660.95

EX. GST
$727.05 including GST
Out of Stock: 4-6 Weeks Delivery

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Features
Shipping & Delivery

The MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1160 comes with a Cartridge Hand-piece especially designed for Metcal SSC cartridges. This system will allow users of the Metcal SP200 Soldering System to continue to use their Metcal SSC cartridges.

  • SmartHeat ® Technology provides exceptional power for high thermal demand applications.

  • Four hand-pieces available for increased application solutions for soldering and rework on one system

  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility

  • Hand-pieces are ergonomic for operator safety and comfort

  • Small Bench Top foot print

  • Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.

Metcal MFR-1160 SIngle Output Soldering & Rework System (Metal SSC Cartridge) Product Composition
  • MFR-PS1100 MFR Single Output Power Supply

  • MFR-H6-SSC SSC Cartridge soldering Hand-piece for the MFR Series

  • WS2 Soldering Workstand compatible with PS-HC3 Hand-piece

NOTE: No tip/cartridge included

Tips / Cartridges Series compatible with this system:

  • SSC Soldering Cartridges
Metcal MFR-1160 SIngle Output Soldering & Rework System (Metal SSC Cartridge) Technical Information
Power Supply

Ambient Operating Temperature:

10 - 40 °C (50 °F - 104 °F)

Maximum Enclosure Temperature:

55 °C (131 °F)

Input Line Voltage:

100 - 240 VAC

Input Line Frequency:

50/60 Hz grounded circuit

Power Consumption:

65 Watts maximum

Output Power:

60 Watts maximum

Output Frequency:

450 KHz

Power Cord:

(3-wire) 183 cm 18/3 SJT

Dimensions (approx.) W x D x H:

90mm (3.5â€) x 200mm (8â€) x 152.5mm (6â€)

Weight:

2.3kg (5.05 lbs)

Surface Resistivity:

105-109 Ohms

Certification / Marking:

cTUVus, CE

Handle and Workstand

Tip-to-Ground Potential:

< 2 mV RMS

Tip-to-Ground Resistance:

< 2 ohms

Idle Temperature Repeatability:

+/- 1.1 °C (2 °F) in still air

Handle Cord Assembly Length:

122cm - burn proof, ESD safe

Connector 8-pin circular DIN

Workstand W x D x H:

100mm x 200mm x 100mm (4" x 8" x 4")

Workstand Weight:

0.69 kg (1.51 lbs)
