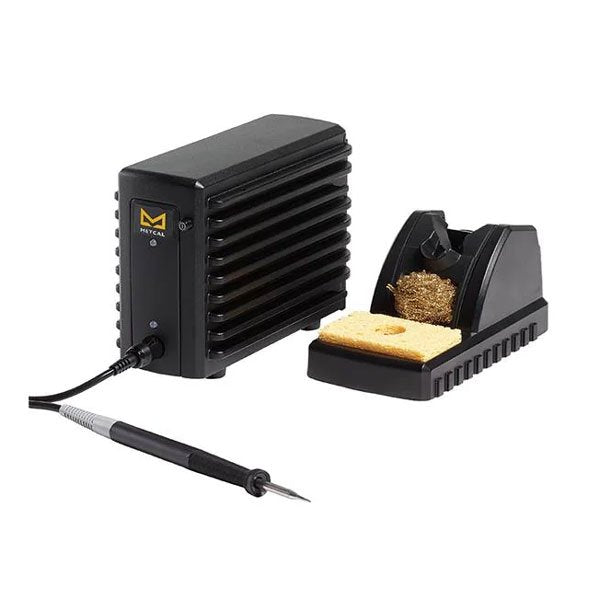

The MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1110 comes with one cartridge soldering hand-piece. The cartridge hand-piece uses small diameter cartridges for easy access and includes a full range of cartridges, including SMD rework.
SmartHeat ® Technology provides exceptional power for high thermal demand applications.
Four hand-pieces available for increased application solutions for soldering and rework on one system
Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
Hand-pieces are ergonomic for operator safety and comfort
Small Bench Top foot print
Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.
MFR-PS1100 MFR Single Output Power Supply
MFR-H1-SC2 MFR Soldering Cartridge Hand-piece
WS1 Soldering Workstand compatible with MFR-H1- SC Hand-piece
NOTE: No tip/cartridge included
Tips / Cartridges Series compatible with this system
SxP Soldering Cartridges
RxP Rework Cartridges
Ambient Operating Temperature:
10 - 40 °C (50 °F - 104 °F)
Maximum Enclosure Temperature:
55 °C (131 °F)
Input Line Voltage:
100 - 240 VAC
Input Line Frequency:
50/60 Hz grounded circuit
65 Watts maximum
60 Watts maximum
(3-wire) 183 cm 18/3 SJT
Dimensions (approx.) W x D x H:
90mm (3.5â€) x 200mm (8â€) x 152.5mm (6â€)
2.3kg (5.05 lbs)
Certification / Marking:
Handle and Workstand
< 2 mV RMS
< 2 ohms
Idle Temperature Repeatability:
+/- 1.1 °C (2 °F) in still air
Handle Cord Assembly Length:
122cm - burn proof, ESD safe
Connector 8-pin circular DIN
Workstand W x D x H:
100mm x 200mm x 100mm (4" x 8" x 4")
0.69 kg (1.51 lbs)
