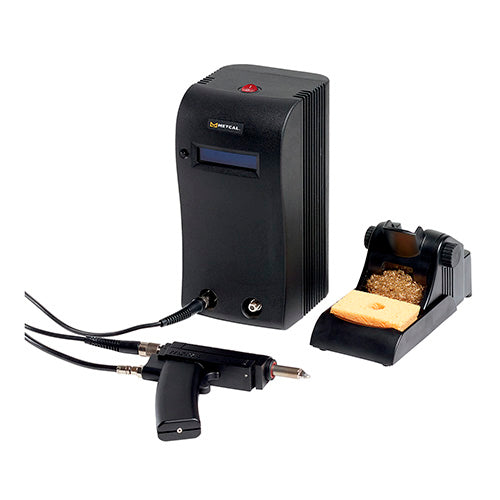

Image for Illustrative Purposes Only
Metcal MX-5250 Dual Port Simultaneous Desoldering System
SKU: METMX-5250
MX-5250
DESCRIPTION
Shipping & Delivery
Metcal MX-5250 Dual Port Simultaneous Desoldering System
*** Replaces the MX-5050 ***
New Dual Port Simultaneous Desoldering System designed for plated-through-hole component desoldering. The easy-to-grip handle allows the task to be completed quickly and comfortably. This "shop-air" hand tool, in combination with the new dual simultaneous power supply, provides unprecedented thermal performance on difficult ground planes and other high-mass applications.
Metcal System PS MX-DS1 HP Workstand & Access Features and Benefits- Can be operated with two hand-pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed.
- Configured with the Metcal Desoldering Gun Hand-piece.
- Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders.
- Improved ergonomics with lightweight hand-pieces.
- Greater process control with SmartHeat ® Technology.
- ESD safe with incoming AC ground monitoring circuitry.
- Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation.
- Metcal TipSaver™ Workstand improves tip life with its "Auto-Sleep" function.
NOTE: Unit requires shop air for desoldering.
| MX-PS5200 | Power supply, 100 to 240 VAC input, dual switch port with LCD Display | |
| MX-DS1 | Desoldering Gun Hand-piece with one cartridge removal pad | |
| MX-W5DS | Workstand for Desoldering Gun Hand-piece with one sponge and one brass pad | |
| AC-CB1 | Desolder Chamber Cleaning Brush | |
| AC-CB2 | Tube Cleaning Brush | |
| MX-DCF1 | Chamber Liner and Filter Pack | |
| AC-TC | Desolder Tip Cleaner | |
| MX-RM8E | Desoldering Cord | |
| MX-DAH4 | ESD Air Hose with Fitting |
NOTE: No tip/cartridge included
Tips / Cartridges Series compatible with this system:
- STDC Desoldering Cartridges
| Technical Information |
|
|
|
Ambient Operating Temperature: |
|
10- 40 °C (50 °F - 104 °F) |
|
Maximum Enclosure Temperature: |
|
55 °C (131 °F) |
|
Input Line Voltage: |
|
100- 240 VAC, grounded circuit |
|
Input Line Frequency: |
|
50/60 Hz |
| Power Consumption: | 125 Watts | |
| Output Power Maximum: | 80 Watts max. Per channel at 22 °C (when operated with two hand-pieces dynamically, the 80 watts output power is is shared based on demand) | |
| Output Frequency: | 13.56 MHzC | |
| Power Cord 3-Wire: | 183cm (18/3") SJT | |
| Dimensions (WxDxH): | 12.1cm x 13.0cm x 23.5cm (4.8" x 5.1" x 9.3") | |
| Certification / Marking: | cTUVus, CE | |
| Tip-to-Ground Potential: | < 2mV | |
| Tip-to-Ground Resistance: | < 2 ohms | |
| Idle Temperature Stability: | ± 1.1 °C (2 °F) in still air | |
| Hand-piece Cable Length: | L=122cm (48"), burn resistant, ESD safe | |
| Hand-piece Connector: | F connector | |
| Workstand Dimensions (WxDxH): | 8.6cm x 19.1cm x 8.3cm (3.4" x 7.5" x 3.3") | |
| Weight of the power supply: | 7.4 lbs (3.35 kg) | |
| Weight of the * workstand: | 1.05 lbs (0.476 kg) |
