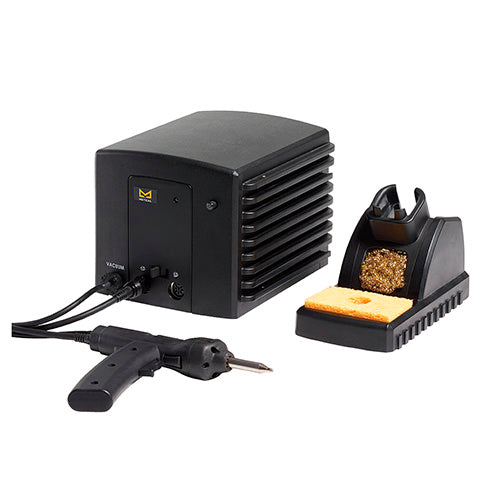

Metcal MFR-1350 Desoldering System with Internal Pump




$1,493.91 including GST
Only 1 left in stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

Product Composition
Shipping & Delivery

The Metcal MFR-1350 Desoldering System features an internal pump providing 0.7 bar of vacuum suction force combined with Smartheat ® technology that makes through-hole desoldering easy and keeps your products safe from board damage.

  • Self-contained powerful pump

  • 2 in 1 ergonomic and flexible hand-piece: pencil or pistol

  • Collection chamber with larger capacity

  • Smart collection chamber for quick and easy change

  • Dual switchable output

  • Powered by Smartheat ® Technology

  • MFR-PS1300 Switched Dual Output Power Supply with Internal Pump

  • MFR-H5-DS Desolder Hand-piece, with selectable grip, and cord

  • MFR-WSDSU Universal Workstand for Desolder Hand-piece

NOTE: No tip/cartridge included

Tips / Cartridges Series compatible with this system

  • DxP Desoldering Cartridges

Input Line Voltage:

100-240 VAC

Input Line Frequency:


Power Consumption:

110 Watts max. (Power Supply MFR-PS1300)

Output Power:

60 Watts Max (RF SmartHeat ® Power)

Output Frequency:

450 KHz

Idle Tip temperature stability:

+/- 1.1 °C (34 °F) in still air

Ambient Operating Temperature:

10 - 40 °C (50 - 104 °F)

Maximum Enclosure Temperature:

55 °C (131 °F)

Noise level:

< 55 dB

Vacuum suction force:

0.7 bar (21in Hg at Vacuum pump at sea level)

Power Cord (3-wire:

183cm (72")

Desolder Hand-piece cable length:

152 cm (60"), burn proof, ESD safe

Hand piece connector:

8 pin power connector

Tip to ground Potential:


Tip to ground resistance:

<2 Ohms

Surface Resistivity:

105 - 109 Ohms


cTUVus, CE

Dimensions (approx.) W x D x H:

170mm x 200mm x 152.5mm (7" x 8" x 6")

Workstand dimensions:

100mm x 200mm x 100mm (4" x 8" x 4")
