Metcal MFR Single Port System Desolder External Air (Venturi Box) MFR-1150
SKU: METMFR-1150
MFR-1150
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

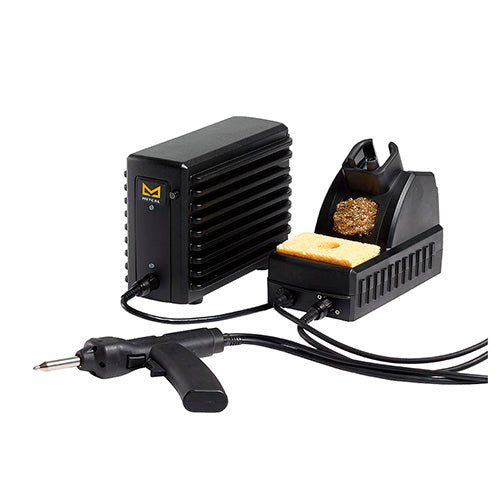

Metcal MFR Single Port System Desolder External Air (Venturi Box) MFR-1150
The MFR-1150 Desolder System with venturi workstand provides a compact and easy shop air option. Metcal’s MFR-1150 Desoldering System is a powerful, cost-effective system with a small footprint. The MFR-1150 has a powerful 0.85 bar vacuum built into the workstand which makes throughole desoldering clean and easy.
The MFR-1150 system includes a Desoldering Pistol with an easy-to-change, large-capacity solder collection chamber to ensure minimum downtime. The pistol can easily be converted to a pencil grip for additional control. Metcal offers a wide range of long-life desoldering tips that will keep your equipment working efficiently.
Discover the Metcal MFR Single Port System Desolder External Air (Venturi Box) MFR-1150 at Mektronics Australia – your trusted source for quality tools and equipment!
-
SmartHeat® Technology provides exceptional power for high thermal demand applications
-
Single or Dual simultaneous outputs allow for single/dual hand-piece use
-
Five hand-pieces available for increased application solutions for soldering
-
Desoldering (upgrade kit MX-UK5) and rework on one system
-
Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
-
Ergonomic handpieces for operator safety and comfort
-
MFR-PS1100 Soldering Station
-
MFR-H5-DS Hand-Piece
-
MFR-WSDSX Workstand
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 70 W max. |
| Output Power: | Variable, 60 W max.* |
| Output Frequency: | 450 KHz |
| Heating Method: | Induction, SmartHeat® |
| Connections: | Single Port |
| Power Supply Dim. W x D x H: | 90 x 200 x 152.5 mm (3.5" x 7.9" x 6") |
| Power Supply Weight: | 2.3 kg (5.05 lb) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 year |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
| Desolder-Pen Specificaton | MFR-H5-DS |
| Hand-Piece Cable Length: | 152 cm (60”), burn proof, ESD-safe |
| Hand-piece - Connector: | 8-pin circular DIN |
| Air Hose: | ESD-save |
