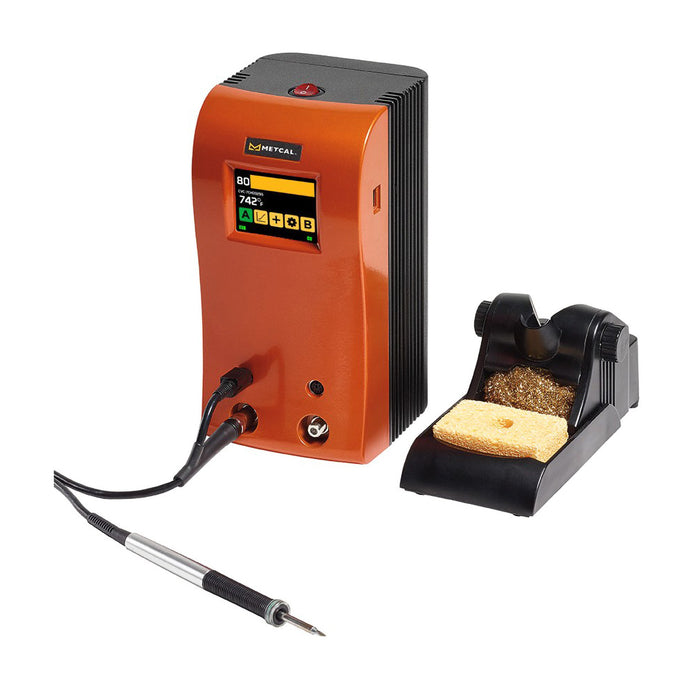

Metcal System CV-5210 Connection Validation Soldering Station
Metcal innovation has led the industry for decades, beginning with SmartHeat® technology that senses the thermal load and instantly delivers power on demand to the solder joint. The embedded self-regulating heater delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe, and repeatable process with no calibration required. The intermetallic compound thickness is critical in the formation of a solder joint.

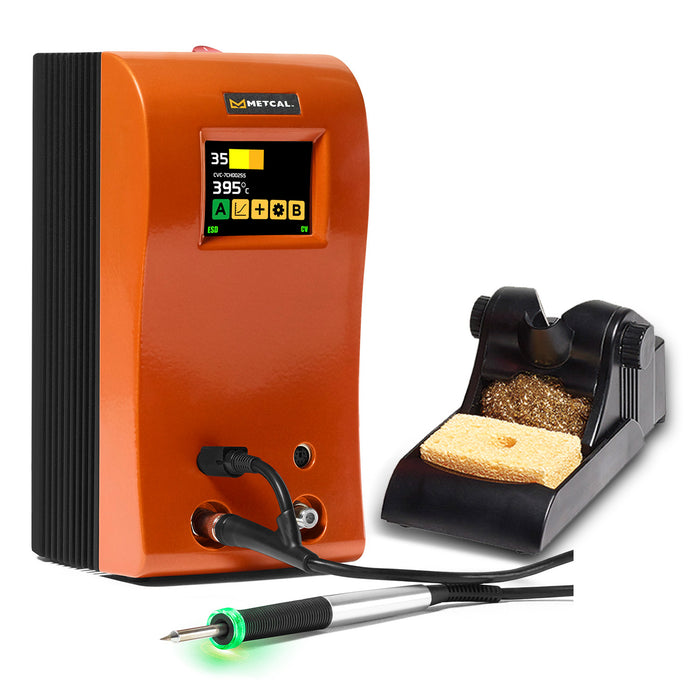

Connection Validation™ (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed-loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated into the handpiece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard for the soldering process.
Discover the Metcal System CV-5210 Connection Validation Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
SmartHeat® Power-on-Demand Technology
-
Patented Connection Validation™ IMC Formation Technology
-
2.8” color touchscreen with bold graphics
-
Communications Port for process traceability data and firmware upgrades
-
Precise tip temperature display
-
Integrated Net Power Meter and Power graph
-
Patented Chip-in-Cartridge technology
-
Closed loop bi-directional communication
-
Stores and records cartridge attributes
-
Provides traceability information
-
Protects power supply from non-conforming cartridges
-
Backwards compatible with MX Series power supplies
-
Password protection
-
CV-PS5200 Power Supply
-
CV-H1-AV Advanced Hand-Piece
-
CV-W1AV Tip Saver Work Stand
-
CV-CP1 Cartridge Removal Pad
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 125 W |
| Output Power: | Variable, 80 W max.* |
| Output Frequency: | 13.56 MHz |
| Heating Method: | Induction, SmartHeat® |
| Display: | 2.8” Color TFT Touch Display |
| Display Resolution: | 320*240 RGB |
| Display Size: | 2.8” Diagonal |
| Display Active Area: | 43.20 x 57.60 mm |
| Connections: | 2 connectors, single mode 80 Watt. Dual mode power is shared dynamically |
| Interface -Communication/Firmware Upgrade: | Via USB port and appropriate software with compatible computer and cables. |
| Power Supply Dim. W x D x H: | 121 x 130 x 235 mm (4.8" x 3.3" x 9.3") |
| Power Supply Weight: | 3.35 kg (7.4 lb) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm, ESD-save |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 5 years |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
