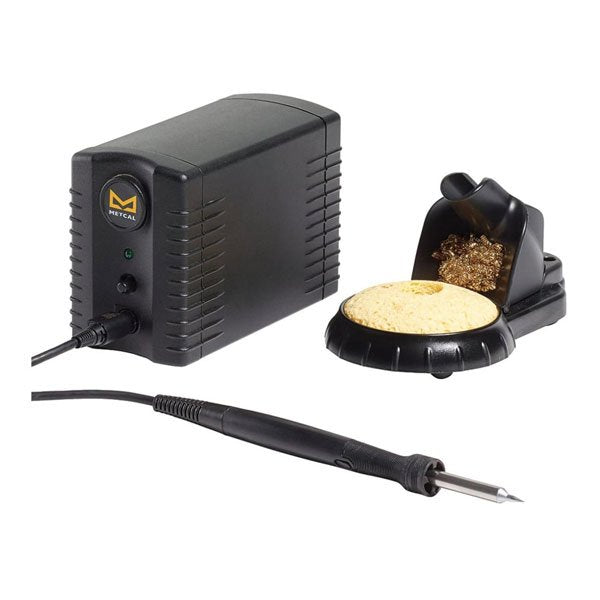

Metcal PS-900 Production Soldering System with Tip H/Piece
The PS-900 packs power into a small benchtop footprint, providing exceptional thermal control.
Discover the Metcal PS-900 Production Soldering System with Tip H/Piece at Mektronics Australia – your trusted source for quality tools and equipment!
-
SmartHeat ® temperature control
-
Ergonomic, lightweight handle
-
Rugged cast aluminum housing
-
Added plating thickness to tips
-
Low cost, quick-change heater coil
-
PS-PW900 Power Supply
-
PS-HC3 Hand-piece with Coil Assembly
-
SFV-CH15A Chisel soldering tip 1.5mm (.06")
-
WS2-NS Workstand
-
AC-CP2 Tip removal pad
Tips / Cartridges Series compatible with this system:
-
SxV Soldering Tips
-
CxV Blade Tips
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 90 W max. |
| Output Power: | Variable, 60 W max.* |
| Output Frequency: | 450 KHz |
| Heating Method: | Induction, SmartHeat® |
| Connections: | Single Port |
| Power Supply Dim. W x D x H: | 80 x 160 x 115 mm (3.1" x 6.3" x 4.5") |
| Power Supply Weight: | 1.4 |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 year |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
