Metcal Programmable Hot Air Convection Tool HCT-1000
SKU: METHCT-1000
HCT-1000
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

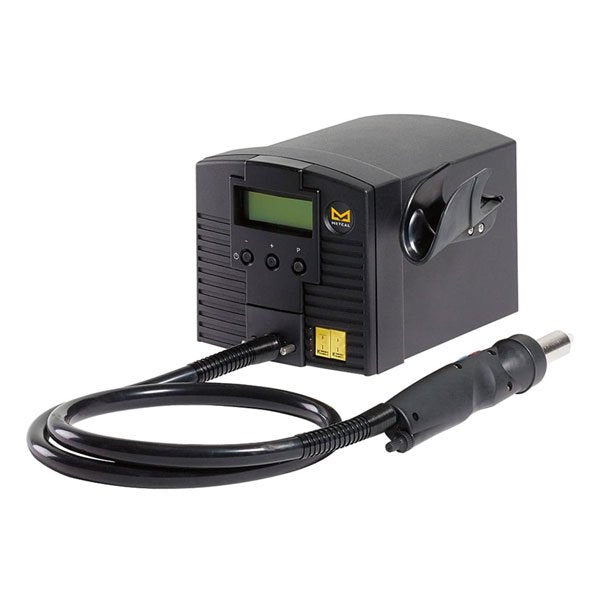

Metcal Programmable Hot Air Convection Tool HCT-1000
The HCT-1000 System is a fully programmable hand held convection rework tool that can both remove and place SMT components. It features digital controls, in-ternal or external thermocouple feedback control, program storage of up to 50 profiles and integrated vacuum pick-up for component placement and removal.
Discover the Metcal Programmable Hot Air Convection Tool HCT-1000 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Integrated vacuum pickup for easy component removal
-
Profile creation for operator repeatability and storage for up to 50 user defined profiles
-
Manual mode for quick setup
-
External thermocouple for process setup and verification
-
Hand-piece controls for heater and vacuum
-
Programmable, digitally controlled airflow for repeatable results
-
Multiples modes of operation: Manual, 4 zone heating (with the MRS-1100A system)
-
The HCT-1000 is connected to the PCT-1000 via a cable when used as part of the MRS system
-
May beused with ATH-1100A Adjustable Tool Holder
-
HCT-PS1000 Power Supply
-
HCT-HV1 Hand-piece
-

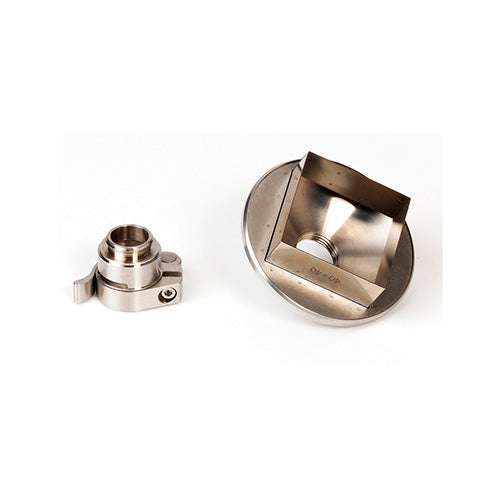

HN-J0005 Nozzle
-
HNA-1 Nozzle Adapter
| Input Voltage: | 100 - 240 VAC, 50/60 Hz |
| Rated Power: | 600 W |
| Source Temperature: | Up to 450 °C (840 °F) |
| Heating Method: | Convection |
| Airflow: | 5 - 25 l/min |
| Noise Level: | < 55 dBA at maximum airflow |
| Surface Resistivity: | 107 - 1011 Ohm |
| Vacuum Pump for Pick-Up Components: | 381 mm Hg (15" Hg) |
| Display: | LCD, 20 X 4 display segments |
| Operational Modes: | Setup, Run, Manual, Active Setup |
| Stoarable Solder Profiles: | 50 |
| Size W x D x H: | 178 x 229 x 152 mm ( 7" x 9" x 6") |
| Weight: | 5.4 kg (12 lb) |
| Certification/Marking: | TUV, CE |
| Storage Temperature: | 0 - 50 °C (32 - 122 °F) |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 Year |
