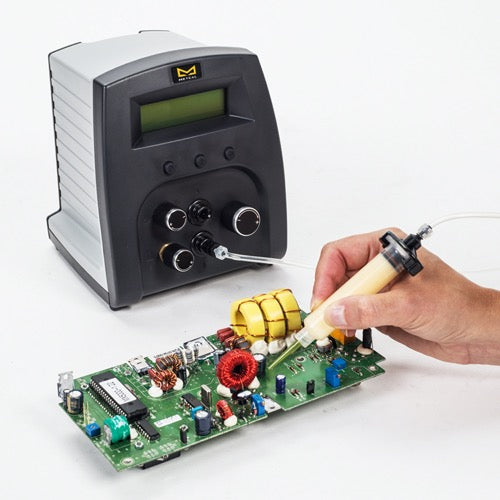

Metcal Programmable Digital Dispenser for Low to High Viscosity Medium 0-6.9 bar (0-100 psi) DX-350
SKU: METDX-350
DX-350
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Metcal Programmable Digital Dispenser for Low to High Viscosity Medium 0-6.9 bar (0-100 psi) DX-350
The dosing system DX-350/DX-355 offers the possibility to save up to 10 dispensing profiles. Time, pressure and adjustable vacuum suck-back are displayed digitally. The device is intuitive to use and offers a high level of accuracy for line or point dispensing. An infinitely vacuum suck-back prevents low-viscosity media from dripping between the dosing cycles and high viscosiy media from pulling threads. The set value is displayed digitally. A RS-232 interface enables connection to a PLC. The system is delivered ready for operation. The dispensing system is available in two versions: Working pressure from 0 - 6.9 bar for common applications (DX-350). Working pressure adjustable via precision valve from 0 - 1 bar for low-viscosity media (DX-355).
PLEASE NOTE: The TSD800-6 Air Filter (not included) must be installed with the dispenser to ensure proper air filtration. Please remember to purchase a TSD800-6 Air Filter together with the dispenser.
Discover the Metcal Programmable Digital Dispenser for Low to High Viscosity Medium 0-6.9 bar (0-100 psi) DX-350 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Small footprint and lightweight
-
10 programmable dispense routines and 4 operating modes
-
Digital timer, pressure and vacuum read-outs
-
Accurate reproduction of sequences of beads or dots
-
Adjustable vacuum suck backfeature for controlling drips of fluidbetween dispense cycles
-
Available in two versions of operating pressure: 0 to 100 psi for generalapplications, and 0 to 15 psi for specificlow viscosity applications
-

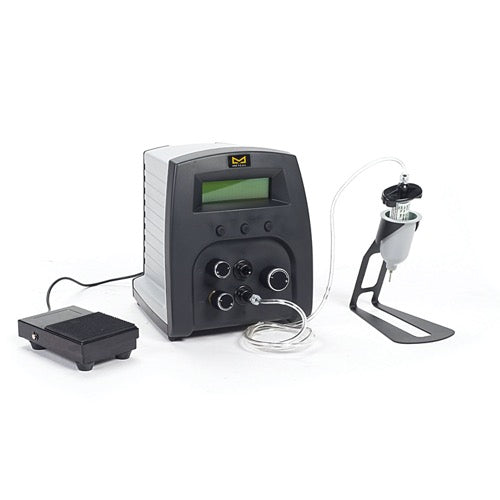

Packaged ready to use with: universal power supply, foot switch, air hose,sample tips, syringe barrels & adapter
-
/O Interface for robotic applications
-
Foot Switch
-
Power Supply
-
Sample Tip Kit
-
10cc Receiver Head Kit
-
Mounting Brackets
-
Receiver Head Air Hose Holder
-
Syringe Barrel Stand
| Input Voltage: | 100 - 240 VAC, 50/60 Hz |
| Operating Pressure: | 0 - 6.9 bar (0 - 100 psi) |
| Cycle Rate: | 1200 cyle/minute |
| Timing Range: | 0.008 - 60 seconds |
| Vacuum Suck-Back Control: | Steplessly variable |
| Timing Tolerances: | +/- 0.001 % |
| Cycle Mode: | TIMED, PURGE, INTERRUPT, TEACH |
| Dispensing DOT counter: | Yes |
| Memories: | 10 programmable |
| I/O Interface: | Initiated by voltage or contact closure |
| Certification: | CE, TUV-GS, NRTL |
| Size (W x L x H): | 152 x 165 x 1787 mm (6" x 6.5" x 7") |
| Weight: | 1.2 kg ( 2.6 lb) |
| Warranty: | 1 year |
