Metcal Power Supply MFR Switched Internal Pump MFR-PS1300
SKU: METMFR-PS1300
MFR-PS1300
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

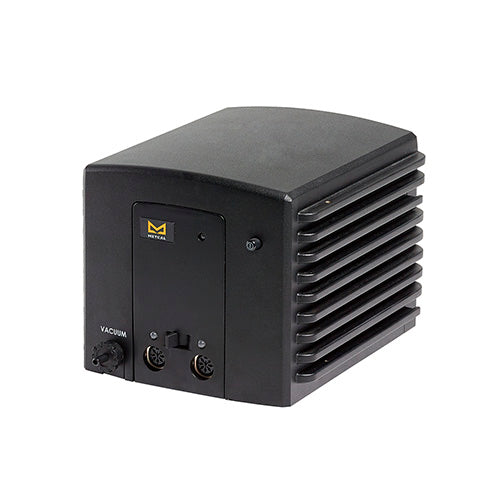

Metcal Power Supply MFR Switched Internal Pump MFR-PS1300
The MFR-1300 Series Desoldering and Rework Systems are standalone equipment. The power supply features an internal pump providing 0.7 bar pressure and 60 watts of SmartHeat® Technology that makes through-hole desoldering easy and keeps your products safe from board damage.
The handpiece has been designed to be used in two configurations. As standard, the MFR-H5-DS desolder tool is a pencil grip design and a clip-on grip enables the handpiece to be used in a pistol style. The solder collection chamber has a large capacity and the innovative replaceable tips enable reduced downtime and quicker changeover. Since the system has two switchable ports it can be used in addition to a soldering tip, cartridge, or tweezer handpiece.
Discover the Metcal Power Supply MFR Switched Internal Pump MFR-PS1300 at Mektronics Australia – your trusted source for quality tools and equipment!
-
SmartHeat® Technology provides exceptional power for high thermal demand applications
-
Single or Dual simultaneous outputs allow for single/dual hand-piece use
-
Five hand-pieces available for increased application solutions for soldering
-
Desoldering (upgrade kit MX-UK5) and rework on one system
-
Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
-
Ergonomic handpieces for operator safety and comfort
- MFR-PS1300
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 110 W max. |
| Output Power: | Variable, 60 W max.* |
| Output Frequency: | 450 KHz |
| Heating Method: | Induction, smartHeatR |
| Power Supply Dim. W x D x H: | 170 x 200 x 152.5 mm (6.7" x 7.9" x 6") |
| Power Supply Weight: | 3.9 kg (8.6 lb) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Vacuum Suction Force | 0.7 bar (21" Hg at Vacuum pump) |
| Noise Level | < 55 dB |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 year |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
