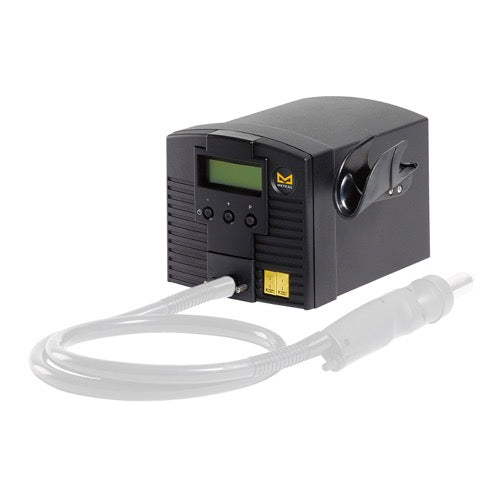

Metcal Power Supply 100-240 VAC HCT-1000 HCT-PS1000
HCT-1000 Base Unit Only.
The HCT-1000 System is a fully programmable hand-held convection rework tool that can both remove and place SMT components. It features digital controls, internal or external thermocouple feedback control, program storage of up to 50 profiles, and integrated vacuum pick-up for component placement and removal.
HCT-HV1 Hand-piece, HN-J0005 Nozzle, and HNA-1 Nozzle Adapter are sold separately.
Discover the Metcal Power Supply 100-240 VAC HCT-1000 HCT-PS1000 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Integrated vacuum pickup for easy component removal
-
Profile creation for operator repeatability and storage for up to 50 user defined profiles
-
Manual mode for quick setup
-
External thermocouple for process setup and verification
-
Hand-piece controls for heater and vacuum
-
Programmable, digitally controlled airflow for repeatable results
-
Multiples modes of operation: Manual, 4 zone heating (with the MRS-1100A system)
-
The HCT-1000 is connected to the PCT-1000 via a cable when used as part of the MRS system
-
May be used with ATH-1100A
-
Adjustable Tool Holder
| InputVoltage: | 100 - 240 VAC, 50/60 Hz |
| Rated Power: | 600 W |
| Surce Temperature: | Up to 450 °C (840 °F) |
| Heating Method: | Convection |
| Airflow: | 5 - 25 l/min |
| Noise Level: | < 55 dBA at maximum airflow |
| Surface Resistivity: | 107 - 1011 Ohm |
| Vacuum Pump for Pick-Up Components: | 381 mm Hg (15" Hg) |
| Display: | LCD, 20 X 4 display segments |
| Operational Modes: | Setup, Run, Manual, Active Setup |
| Stoarable Solder Profiles: | 50 |
| Size W x D x H: | 178 x 229 x 152 mm ( 7" x 9" x 6") |
| Weight: | 5.4 kg (12 lb) |
| Certification/Marking: | TUV, CE |
| Storage Temperature: | 0 - 50 °C (32 - 122 °F) |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 Year |
