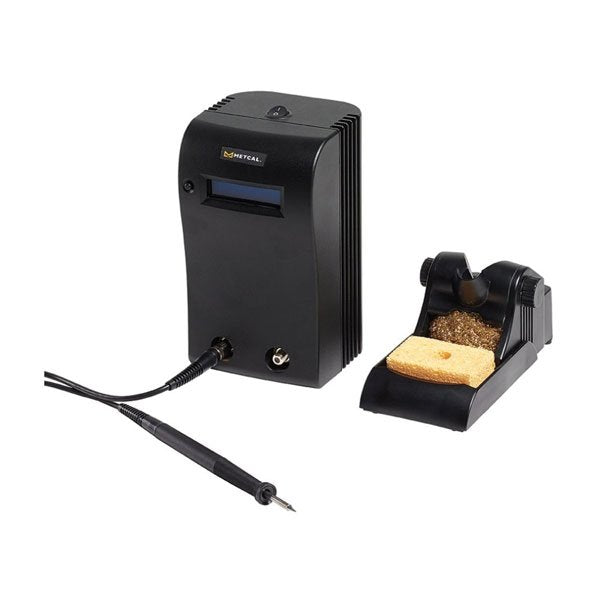

Metcal MX-500S Soldering & Rework System
SKU: METMX-500S
MX-500S
DESCRIPTION
Features & Benefits
Contents
Specifications
Resources
Shipping & Delivery
Metcal MX-500S Soldering & Rework System
The system utilizes SmartHeat® Technology, where each cartridge is equipped with a self-regulating heater that ‘senses’ its own temperature and closely maintains its preset idle temperature for the life of the heater tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required.
The MX-500 features a switchable dual port and 40W SmartHeat® Power.
NOTE: TIPS & CARTRIDGES SOLD SEPARATELY
Discover the Metcal MX-500S Soldering & Rework System at Mektronics Australia – your trusted source for quality tools and equipment!
-
A built-in Net Power Meter displays a graphical and numerical representation of the power applied to the cartridge.
-
User Programmable Power Save Mode - adjustable from 10 to 120 minutes.
-
Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system.
-
Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
-
Full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
-
MX-PS500 power supply
-
MX-RM3E Standard Handpiece for MX Systems
-
WS1 Tip Saver Workstand for MX-RM3E Handpiece
-
MX-SP1 Cartridge Removal Pad
-
Tips/Cartridges sold separately
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 70 W max. |
| Output Power: | Variable, 40 W max.* |
| Output Frequency: | 13.56 MHz |
| Heating Method: | Induction, SmartHeat® |
| Connections: | Dual Port, switchable |
| Power Supply Dim. W x D x H: | 121 x 121 x 220 mm (4.8" x 4.8" x 8.7") |
| Power Supply Weight: | 2.65 kg (5.8 lb) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Ground Detection: | Permanent |
| Surface Resistivity: | 105 - 109 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 4 years |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
| Handpiece Cable Length: | 183 cm (72”), burn proof, ESD-safe |
| Handpiece - RF Connector: | F-type power connector |
