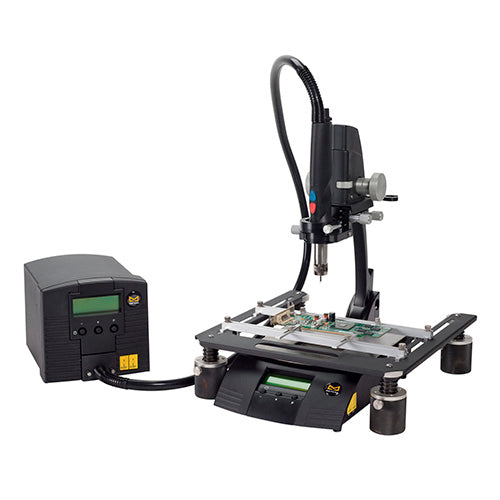

Metcal Modular Rework System Advanced MRS-1100A
The MRS-1100A Modular Rework System is an integrated convection rework system for the removal and reflow of BGA/CSP and SMT components. The MRS-1100A is comprised of a convection tool, a preheater, an adjustable tool holder, and a freestanding board holder to create a manually assisted rework system. A series of nozzles, targeting a variety of applications round out the product offering for this system. With standard features such as programmability, a digital display, program storage of up to 50 profiles, this system is not only versatile, but also easy and efficient to work with. A choice of board holders and accessories are available that make the system capable of handling multiple sizes of PCBs. The MRS-1100A allows you the choice of using either the embedded profiling capability that can be configured to operate at a fixed temperature, or a four-zone programming option. The unit also allows the temperature to be controlled either at the heat output (internal) or at the board (external). The “external” control function uses a thermocouple which can be placed on the board or a component.
Discover the Metcal Modular Rework System Advanced MRS-1100A at Mektronics Australia – your trusted source for quality tools and equipment!
-
Digital display for repeatable temperature settings and profile control
-
Automatic control of the preheater for simple operation
-
Easy profile creation for operator repeatability
-
Integrated vacuum pickup for easy component removal
-
Hand held or tool holder mounted for operator comfort
-
Manual mode for quick setup
-
External thermocouple for process setup and verification
-
Digital controlled airflow for repeatable results
-
X, Y, Z and Theta controls forcomponent alignment
-
Adjustable PCB holder for easychange outs
-
Automatic vacuum lift off at theend of the cycle
-
Password lockout of programmed profiles
The 4 components of the MRS-1100A are:
-
HCT-1000 Programmable Handheld Convection Tool.
-
PCT-1000 Programmable Pre-heater.
-
ATH-1100A Adjustable Tool Holder.
-
BH-2000 Freestanding boardholder
| Input Voltage: | 100 - 240 VAC, 50/60 Hz |
| Rated Power: | 600 W |
| Source Temperature: | Up to 450 °C (840 °F) |
| Heating Method: | Convection |
| Airflow: | 5 - 25 l/min |
| Noise Level: | < 55 dBA at maximum airflow |
| Surface Resistivity: | 107 - 1011 Ohm |
| Vacuum Pump for Pick-Up Components: | 381 mm Hg (15" Hg) |
| Display: | LCD, 20 X 4 display segments |
| Operational Modes: | Setup, Run, Manual, Active Setup |
| Stoarable Solder Profiles: | 50 |
| Size W x D x H: | 178 x 229 x 152 mm ( 7" x 9" x 6") |
| Weight: | 5.4 kg (12 lb) |
| Certification/Marking: | TUV, CE |
| Storage Temperature: | 0 - 50 °C (32 - 122 °F) |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 Year |
| InputVoltage: | 100 - 240 VAC, 50/60 Hz |
| Rated Power: | 1200 W |
| Surce Temperature: | 25 - 400 °C (77 - 752 °F) |
| Heating Method: | Convection |
| Airflow: | 538 l/min ( 19 cfm) |
| Noise Level: | Low |
| Display: | LCD, 20 X 4 display segments |
| Operational Modes: | Setup, Run, Manual, Active Setup |
| Size W x D x H: | 203 x 330 x 76 mm (8" x 13" x 3") |
| Weight: | 3.4 kg (7.5 lb) |
| Certification/Marking: | cTUVus, CE |
| Ambient Operating Temperature: | 0 - 50 °C (32 - 122°F) |
| Storage Temperature: | -10 - 60 °C (14 - 140 °F) |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 1 Year |
