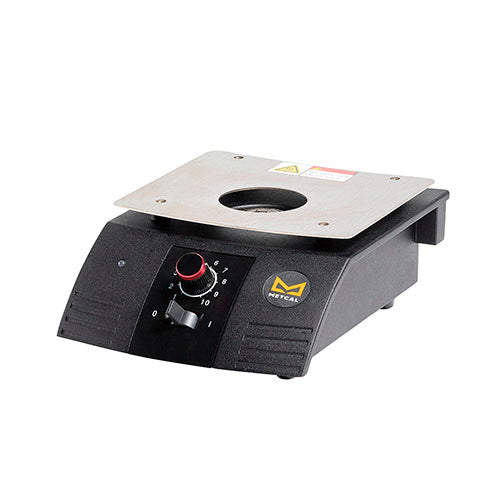

Metcal Focus Preheater 230V
SKU: METPCT-100-21
PCT-100-21
DESCRIPTION
Features & Benefits
Contents
Specifications
Shipping & Delivery

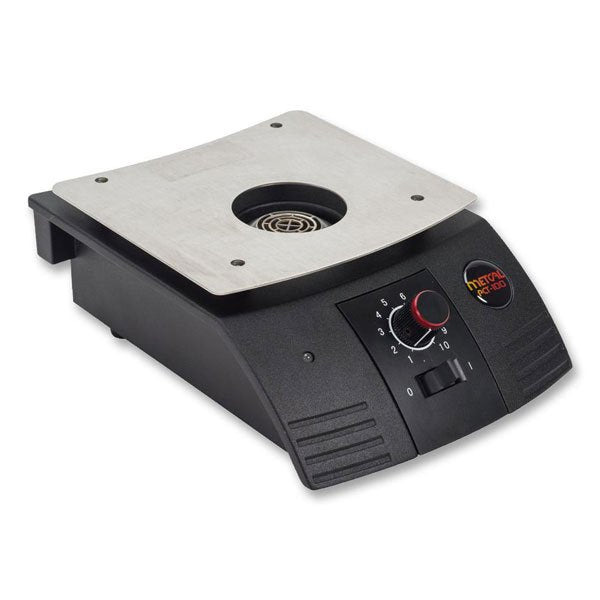

Metcal Focus Preheater 230V
The Metcal PCT-100 Focus Pre-heater targets heat for improved speed and efficiency for high thermal demand applications, including lead-free. Used for SMT and through-hole hand processes, the PCT-100 uses convection air heating to heat a PCB first, for better soldering, improved process control and increased productivity. The PCT-100 Focus Pre-heater adds heat volume, without turning up the temperature, to perform assembly tasks at the appropriate peak temperature without distorting the board.
Discover the Metcal Focus Preheater 230V at Mektronics Australia – your trusted source for quality tools and equipment!
-
Accelerates and enhances the lead-free SMT & through-hole rework process
-
Temperature ramps up quickly, maximizing productivity
-
Adjustable knob controls the required temperature to below 300 °C
-
Controlled cool-down eliminates thermal shock to PCB and components
-
Thermocouple feedback temperature control regulates output temperature
-
System safety feature automatically shuts off heating when fan is stopped
-
ESD safe
-
Focus Pre-heater
-
Power Cord
-
User Guide
|
Input Voltage |
230 V |
|
Heater Rating |
450W |
|
Environmental Temperature |
0 °C - 40 °C (32 °F-104 °F) |
|
Air Flow |
10.2 cfm (280 l/min) |
|
Control Temperature |
Variable up to 300 °C (572 °F) |
|
Surface Resistivity ESD |
106 Ohms - 1011 Ohms |
|
Certification/Approvals |
CE, cTUVus |
