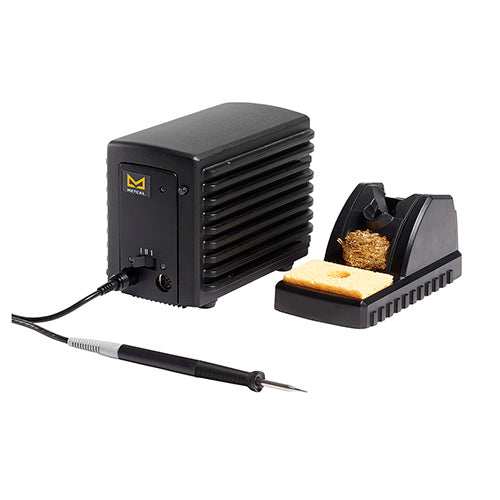

Image for Illustrative Purposes Only
Metcal Logo

Metcal MFR-2210 Dual Output Soldering & Rework System (Cartridge H/Piece)

SKU: METMFR-2210

MFR-2210

$1,009.52

EX. GST
$1,110.47 including GST
Only 1 left in stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Shipping & Delivery

Like the MFR-1100 Series, the MFR-2200 offers the same choice of multiple hand-pieces but with two ports. Flexibility can be increased by locking both systems together. The MFR-2210 includes a Soldering cartridge hand-piece which uses small diameter cartridges for easy access and includes a full range of cartridges, including SMD rework.

Metcal MFR-2210 Dual Output Soldering & Rework System (Cartridge H/Piece) Features
  • SmartHeat ® Technology provides exceptional power for high thermal demand applications.

  • Single or Dual simultaneous outputs allow for single or dual hand-piece use.

  • Four hand-pieces available for increased application solutions for soldering and rework on one system.

  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility.

  • Hand-pieces are ergonomic for operator safety and comfort.

Metcal MFR-2210 Dual Output Soldering & Rework System (Cartridge H/Piece) Product Composition
  • MFR-H1-SC Hand-piece, Soldering Cartridge (2)

  • MFR-PS2200 Power Supply, Dual Simultaneous Output

  • WS1 Auto Sleep Workstand (2)

NOTE: No tip/cartridge included

Tips / Cartridges Series compatible with this system:

  • SxP Soldering Cartridges

  • RxP Rework Cartridges

Metcal MFR-2210 Dual Output Soldering & Rework System (Cartridge H/Piece) Technical Information

Input Line Voltage / Frequency:

100- 240 VAC , 50/60 Hz grounded circuit

Power Consumption:

130 Watts maximum

Output Power Maximum:

60 Watts max. at 22 °C per output (two outputs)

Idle Temperature Stability:

± 1.1 °C (2 °F)

Ambient Operating Temperature:

10- 40 °C (50 °F - 104 °F)

Maximum Enclosure Temperature:

55 °C (131 °F)

Power Cord 3-Wire:

183cm (18/3") SJT (S = 600 Volt Service Cord, J = JuniorService - 300 Volt, T = Thermoplastic)

Hand-piece Cable Length:

L=122cm (48"), burn resistant, ESD safe

Hand-piece Connector:

8-pin cicular DIN

Tip-to-Ground Potential:

< 2mV

Tip-to-Ground Resistance:

< 2 ohms

Certification / Marking:

cTUVus, CE

Power Supply Dimensions (WxDxH):

170mm x 200mm x 152.5mm (7" x 8" x 6")

Workstand Dimensions (WxDxH):

100 mm x 200 mm x 100 mm (4" x 8" x 4")

Surface Resistivity

105-109 Ohms
