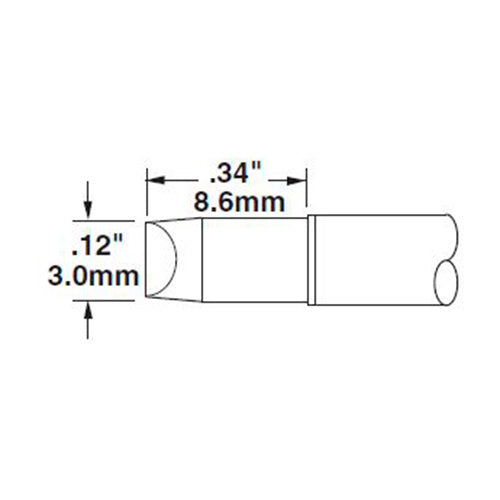

Metcal Cartridge Chisel 3mm (0.12") 90 Deg STTC-103




In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

Shipping & Delivery

Metcal Cartridge Chisel 3mm (0.12") 90 Deg STTC-103

M7CH180 Thermaltronics soldering tip Chisel 90° 3.0mm STTC-103 (0.12″) can be used with the following soldering systems:

  • Thermaltronics TMT-9000S-1
  • Thermaltronics TMT9000S-2
  • Metcal® MX-500
  • Metcal® MX-5000
  • Metcal® MX-5200

M7CH180 Thermaltronics soldering tip Chisel 90° 3.0mm STTC-103 uses Curie point technology to ensure that the temperature is guaranteed to be consistent and calibration is not required. With today’s delicate and complex electronic assemblies, temperature accuracy is a consistent challenge. Component density, lead size and thermally sensitive components all combine to increase process control demands, criteria which many systems fail to meet.

Thermaltronics CHT (Curie Heat Technology) is different, it responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.

Discover the Metcal Cartridge Chisel 3mm (0.12") 90 Deg STTC-103 at Mektronics Australia – your trusted source for quality tools and equipment!

  • Uses Curie point technology
  • Quick and safe to use
  • No calibration required
  • Colour coded band for easy recognition
  • Temperature range for 700 Series tips is 350ºC- 398ºC
  • For use with Thermaltronics TMT-9000S-1, Thermaltronics TMT-9000S-2 soldering systems
  • Compatible with Metcal® MX-500, Metcal® MX-5000, Metcal® MX-5200
  • Not a Metcal copy tip, but equivalent product to Metcal® STTC-103
  • Other temperature ranges available, please see M6CH180 and M8CH180
  • All Thermaltronics products are produced in accordance with ISO 9000 & ISO 14000 standards and meet either GS, CE or NRTL safety requirements
