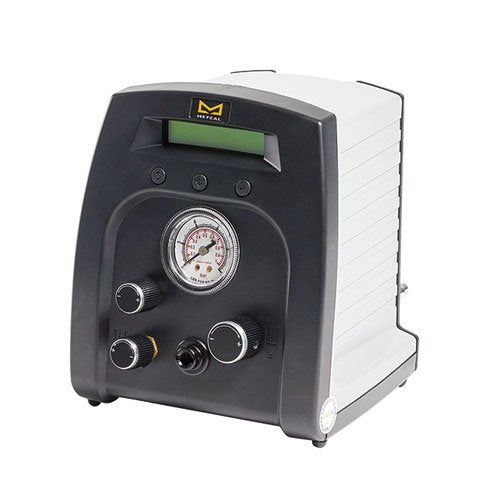

Metcal Basic Dispenser 0-6.9 Bar (100 psi) DX-250
SKU: METDX-250
DX-250
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Metcal Basic Dispenser 0-6.9 Bar (100 psi) DX-250

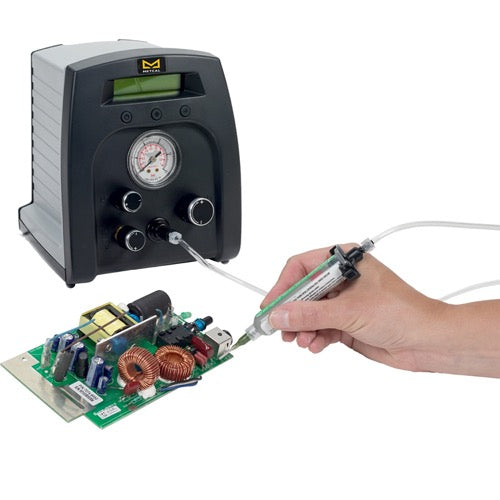

The DX-250/255 series controllers are economical, highly precise and repeatable. They are equipped with a digital timer and an continuously adjustable vacum suck-back, to prevent dripping of low-viscosity media and high viscosiy media from pulling threads. A RS-232 interface enables connection to a PLC. The dispensing system is available in two versions: Working pressure adjustable from 0 - 6.9 bar for common applications (DX-250). Working pressure adjustable via precision valve from 0 - 1 bar for low-viscosity media (DX-255).
PLEASE NOTE: The TSD800-6 Air Filter (not included) must be installed with the dispenser to ensure proper air filtration. Please remember to purchase a TSD800-6 Air Filter together with the dispenser.
Discover the Metcal Basic Dispenser 0-6.9 Bar (100 psi) DX-250 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Small footprint and lightweight Economical dispenser
-
Highly accurate and repeatablemicro-air dispensing
-
Digital timer and vacuum controls
-
Available in two versions of operating pressure: 0 to 100 psi for general applications, and 0 to 15 psi for specific low viscosity applications
-

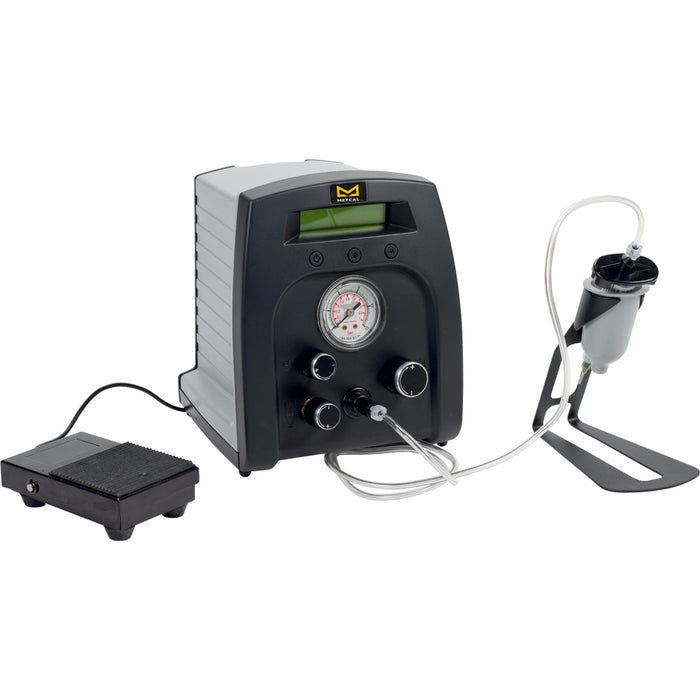

Packaged ready to use with: universal power supply, foot switch, air hose, sample tips, syringe barrels & adapter
-
O Interface for robotic applications
-
Foot Switch
-
Power Supply
-
Sample Tip Kit
-
10cc Receiver Head Kit
-
Mounting Brackets
-
Receiver Head Air Hose Holder
-
Syringe Barrel Stand
| Input Voltage: | 100 - 240 VAC, 50/60 Hz |
| Operating Pressure: | 0 - 6.9 bar (0 - 100 psi) |
| Cycle Rate: | 600 cyle/minute |
| Timing Range: | 0.020 - 60 seconds |
| Vacuum Suck-Back Control: | Steplessly variable |
| Timing Tolerances: | +/- 0.001 % |
| Cycle Mode: | TIMED, PURGE |
| Dispensing DOT counter: | Yes |
| I/O Interface: | Initiated by voltage or contact closure |
| Certification: | CE, TUV-GS, NRTL |
| Size (W x L x H): | 152 x 165 x 1787mm (6" x 6.5" x 7") |
| Weight: | 1.2 kg ( 2.6 lb) |
| Warranty: | 1 year |
