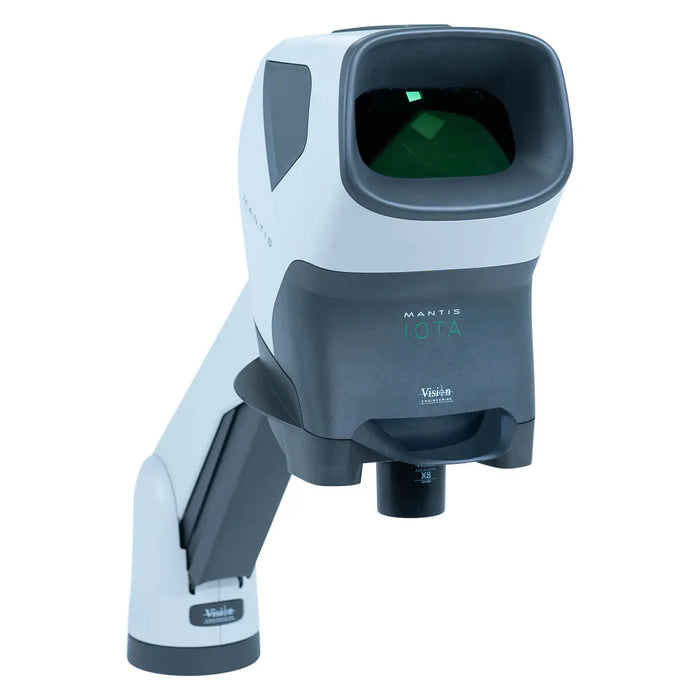

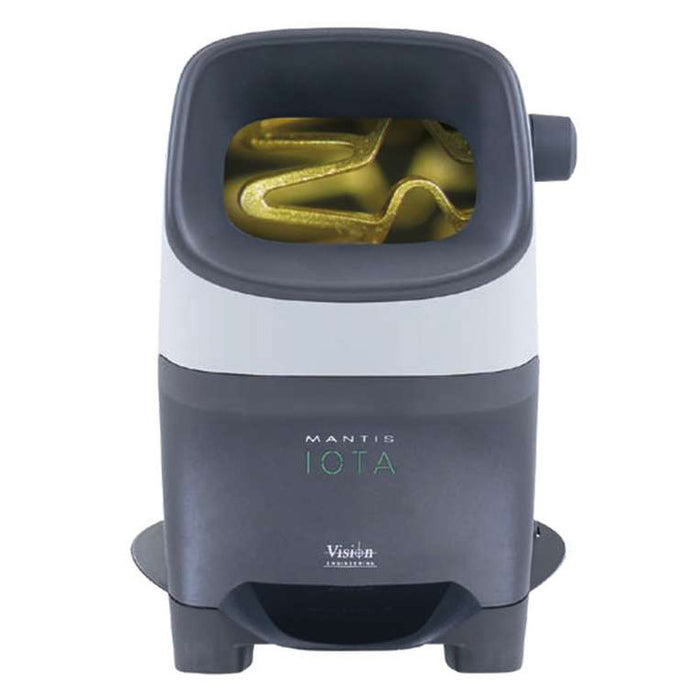

Mantis IOTA Head (Requires Stand & Objective)

• high quality optical stereo image

• ergonomic working position

• long working distance

• Magnification 3x - 8x

• Ability to use interchangeable lenses

• Synchronised LED lighting

Electronics: Improved hand-eye coordination and lower operator fatigue makes tasks such as soldering, PCB inspection and rework easy, especially for extended periods.

Precision Engineering: Mantis’ clear stereo view and low operator fatigue make it perfect for precision engineering  inspection tasks such as component finishing, anodising or hardening defect detection, and tasks which need the use of tools, such as deburring.

Medical Devices: Bright imaging and ease of use makes Mantis a great choice for the inspection of stents, catheters and other medical products.

Plastics and Rubber: Mantis makes the quality control of rubber seals and plastic components – and inspection and rework, such as the removal of flash and other injection moulding defects – easier and quicker.

Watchmaking and Jewellery: Depth perception and hand-eye coordination make Mantis ideal for watch and jewellery making. Assembly and finishing of the smallest movements or the setting of stones is done with confidence and precision.

Laboratories and Life Sciences: High-concentration applications, which require long periods of intense focused working, such as sample preparation, dissection and manipulation can performed in comfort. Safety glasses can be worn, and Mantis stereo microscope can be used effectively in a laminar flow cabinet.

Dental: Mantis is a good choice for precision work such as tailoring dental prosthetics which requires magnification for inspecting the moles, for rework and colour-matching the final product.

UV Fluorescing Coatings & Dyes: Mantis is ideal for working with UV fluorescing subjects. Coatings, dyes, masking and other subjects can be viewed with white light or excited with UV illumination to fluoresce and viewed easily by the user.

Optical

Illumination

ADDITIONAL COST APPLIES TO ALL ADDITIONAL OPTIONS LISTED BELOW

Your choice of objectives

Select the objectives most suitable for your application. Super long working distance
objective lenses available for when the maximum working distance is required.

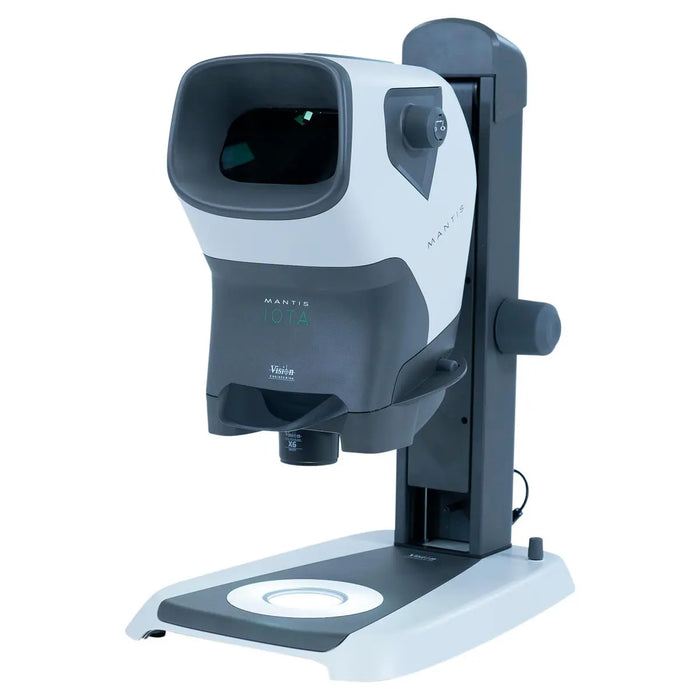

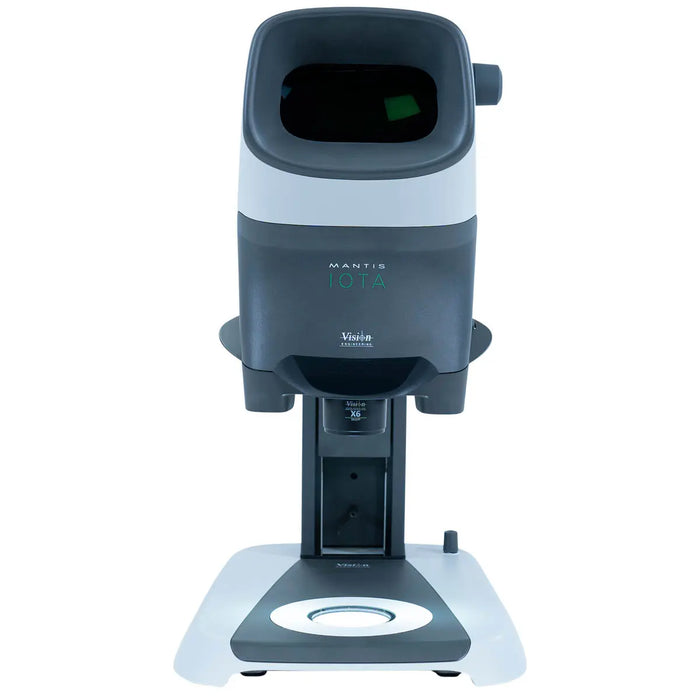

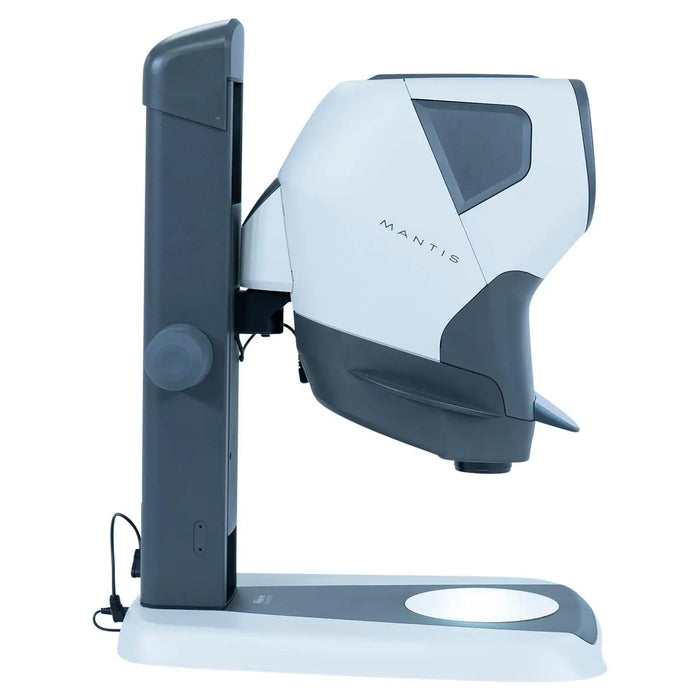

Stabila Stand

Counter sprung for ease of use, Stabila’s compact, stable design features long range of focus travel and an optional illuminated base.

Dimensions:

• Focus travel – 150 mm

• Throat depth – 218 mm

• Max. subject height – 146 mm

Pilot Stage for Stabila Stand

100mm x 100mm travel stage with autolock to prevent unwanted movement.

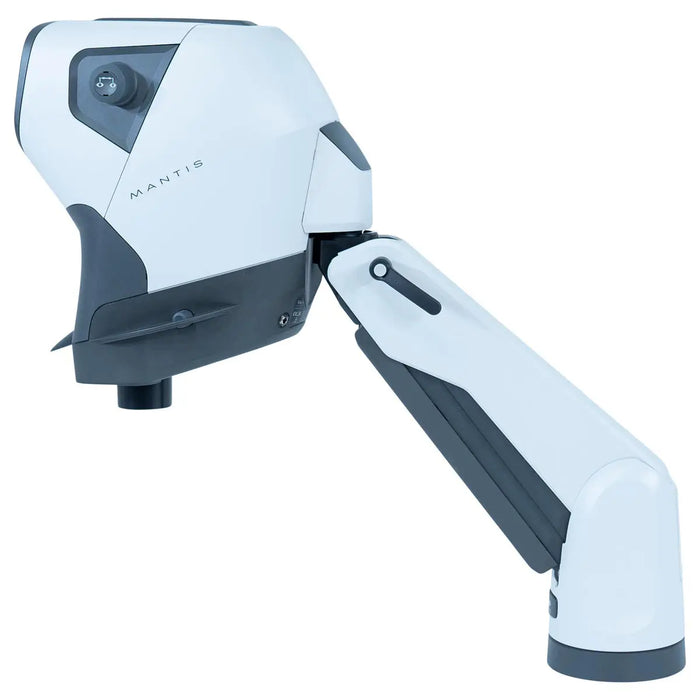

Verso Stand

Versatile lift and lower Verso stand enables any Mantis to be swung in and out of position when needed.

Dimensions:

• Focus travel – 230 mm

• Throat depth – 380 – 505 mm

• Max. subject height – 166 mm

Verso Stand Extension

Adds extra stand reach with pivot point, rotation 270°.

Dimensions:

• Throat depth – 630 – 755 mm

• Max. subject height – +10 mm
