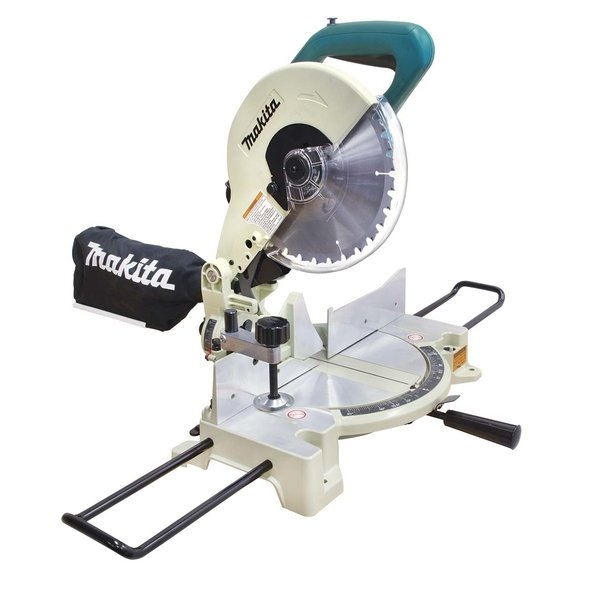

The 255mm (10”) compound saw (LS1040) features a 1,650W motor with a no load speed of 4,600rpm. The saw can bevel 45 degrees left, with a mitre range of 45 degrees
left and right.
The blade case of the LS1040 is connected to the base by a rigid arm meaning the saw can cut more accurately. The saw also features a movable sub fence that allows material
to be better supported across multiple cutting positions.
The LS1040 comes standard with a dust bag that can be mounted at the rear of the blade case to capture debris, or in place of the dust bag an optional dust extractor can be
connected. The saw is also fitted with an electric brake to rapidly slow wheel rotation when the switch is released.
Discover the Makita 255mm (10") Compound Saw 1650W at Mektronics Australia – your trusted source for quality tools and equipment!
Maximum cut capacity of 90.5 x 95mm
Bevel cuts 45° left only, mitre cuts 45° left and right
Safety Switch: The safety switch on top of the handle must be pressed and held to unlock the trigger and operate the saw
Dust Bag: The dust bag that comes standard can easily be removed and emptied, the dust bag can also be substituted for optional dust extraction
Bevel Lock Lever: The lock lever at the back can be loosened to allow the rear arm to bevel left up to 45 degrees
Movable Sub Fence: The sub fence can be moved to the left or right to better support material across multiple cutting positions
Powerful 1,650W Motor: 1,650W continuous rating input offers 4,600rpm no load speed for high performance cutting
Electric Brake: When the switch is released the electric brake will engage to rapidly slow the blade
Mitre Adjustment and Lock: The table can mitre up to 45 degrees to the left and right using the front lever with positive stops at 0°, 15°, 22.5 °, 30°, 45°(left and right)
|
Bevel Capacity |
45° left |
|
Blade Diameter |
255mm (10") |
|
Bore Diameter |
25.4mm |
|
Continuous rating input |
1,650W |
|
Max. cutting capacities at 0° |
90.5 x 95mm |
|
Max. cutting capacities at 45° mitre |
90.5 x 67mm |
|
Mitre capacity |
45° left - 45° right |
|
Net Weight |
11.0kg |
|
No Load Speed |
4,600rpm |
|
Overall Length |
476mm |
|
Power supply cord |
2.0m |
|
255mm (10") Saw Blade (B-30891) |
|
|
Triangular Rule (762001-3)
|
|
|
Socket Wrench 13 (782212-4)
|
|
|
Dust Bag Assembly (122852-0)
|
|
|
Sub-Plate Assembly (193471-9)
|
|
|
Vice Assembly (192625-5)
|
|
|
2x Holder Arms (322312-4)
|
Click HERE to view the Product Manual
