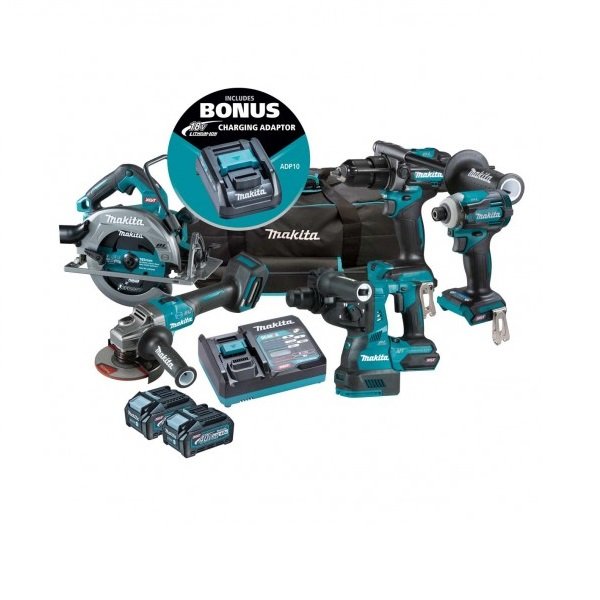

Makita 40V Brushless 5-Piece Combo Kit
SKU: MAKDK0144G501
DK0144G501
Features
Inclusions
Shipping & Delivery
-
HP001GZ - 40V Max Brushless Hammer Driver Drill
-
TD001GZ - 40V Max Brushless Impact Driver
-
GA005GZ - 40V Max Brushless 125mm (5") Slide Switch Angle Grinder
-
HR001GZ - 40V Max Brushless AWS* 28mm Rotary Hammer
-
HS003GZ - 40V Max Brushless AWS* 185mm (7-1/4") Circular Saw
-
BL4040 x2 - 40V Max 4.0Ah Battery
-
DC40RA - 40V Max Single Port Rapid Charger
-
832367-6 - Tool Bag
-
BONUS: 18V Charging Adaptor - ADP10
*AWS receiver sold separately
Discover the Makita 40V Brushless 5-Piece Combo Kit at Mektronics Australia – your trusted source for quality tools and equipment!
HP001GZ - 40V Max Brushless Hammer Driver Drill
Features:
-
Heavy duty power with 141Nm peak torque
-
Active feedback sensors shut down the tool in the event of a kickback
-
Massive drilling capacity with 152mm hole saw & 50mm auger bit capacity
-
35% faster drilling speed compared with the equivalent 18V model
-
Electronic clutch for selecting between 41 torque range settings
Specifications:
|
Impact Rate |
Hi: 0 - 39,000ipm / Lo: 0 - 9,750ipm |
|
Max. drilling capacities in masonry |
20mm |
|
Max. drilling capacities in steel |
20mm |
|
Max. drilling capacities in wood |
Auger bit: 50mm, Self-feeding bit: 76mm, Hole saw: 152mm |
|
Max. lock torque |
125Nm |
|
Max. peak torque |
141Nm |
|
Max. tightening torque |
Hard: 140Nm / Soft: 68Nm |
|
No Load Speed |
Hi: 0 - 2,600rpm / Lo: 0 - 650rpm |
|
Overall Length |
182mm |
|
Skin weight |
2.0kg |
|
Voltage |
40V Max |
|
Weight (with battery) |
3.0kg (BL4040) |
Inclusions:
- Grip assembly (127551-9)
- Belt hook assembly (346317-0 & 251314-2)
- +- BIT 2-45 (784637-8)
- Bit holder (452947-8)
- Stopper pole assembly (122576-8)
TD001GZ - 40V Max Brushless Impact Driver
Features:
-
Heavy duty power with 220Nm max. torque
-
Precision fastening with enhanced anvil stability for less bit wobble
-
Optimised application selector with 6 modes adapting speed and impacts for each task
-
Single hand quick change trigger allows user to change between speeds and modes at the touch of a button
-
Constant speed control allows tool to operate at the same speed regardless of battery capacity
- Belt hook assembly (346317-0 & 251314-2)
Specifications:
|
Drive Shank |
6.35mm (1/4") Hex |
|
Impact Rate |
Max.: 0 - 4,400ipm / Hard: 0 - 3,600ipm / Med: 0 - 2,600ipm / Soft: 0 - 1,100ipm |
|
Max. capacities high tensile bolt |
M5 - M14 |
|
Max. capacities standard bolt |
M5 - M16 |
|
Max. tightening torque |
Max.: 220Nm / Hard: 170Nm / Med: 50Nm / Soft: 20Nm |
|
No Load Speed |
Max.: 0 - 3,700rpm / Hard: 0 - 3,200rpm / Med: 0 - 2,100rpm / Soft: 0 - 1,100rpm |
|
Overall Length |
120mm |
|
Skin weight |
1.0kg |
|
Voltage |
40V Max |
|
Weight (with battery) |
1.7kg (BL4025) |
GA005GZ - 40V Max Brushless 125mm (5") Slide Switch Angle Grinder
Features:
-
Heavy duty power cutting 40% faster than the 18V equivalent model
-
High durability with advanced protection against heat and dust
-
Active feedback sensors shut down the tool in the event of a kickback
-
Enhanced safety features including an electric brake, soft start and anti-restart
-
Improved heat dissipation capacity allows for continuous heavy duty use
Specifications:
|
AWS Compatible |
No |
|
Electric Brake |
Yes |
|
No Load Speed |
8,500rpm |
|
Overall Length |
410mm |
|
Skin weight |
2.2kg |
|
Switch Type |
Slide Switch |
|
Voltage |
40V Max |
|
Weight (with battery) |
3.2kg (BL4040) |
|
Wheel diameter |
125mm (5") |
Inclusions:
-
Side Handle (158237-4)
-
Grinding Wheel (A-80656)
-
Lock Nut Wrench (782423-1)
HR001GZ - 40V Max Brushless AWS* 28mm Rotary Hammer
Features:
-
Heavy duty power 2.8j** of impact force
-
Anti-vibration technology provides extremely low vibration of 7.0m/s²
-
Active feedback sensors shut down the tool in the event of a kickback
-
Compatible with AWS for wireless connectivity with compatible dust extraction
-
Dust management compatible with multiple options for various environments
*AWS receiver sold separately
**Rating in accordance with EPTA 05/2009
Specifications:
|
Chuck Type |
Standard |
|
Impact energy |
2.8j |
|
Impact Rate |
0-5,000ipm |
|
Max. drilling capacities in masonry |
TCT Bit: 28mm, Core Bit: 54mm, Diamond Core Bit: 65mm |
|
No Load Speed |
0-980rpm |
|
Overall Length |
373mm |
|
Skin weight |
3.2kg |
|
Sound pressure level |
95dB(A) |
|
Vibration |
7.0m/s² |
|
Voltage |
40V Max |
|
Weight (with battery) |
4.2kg (BL4040) |
Inclusions:
-
Depth Gauge (331886-4)
-
Grease (194683-7)
-
Cloth (443122-7)
HS003GZ - 40V Max Brushless AWS* 185mm (7-1/4") Circular Saw
Features:
-
Heavy duty power with cutting speeds faster then the equivalent 240V model
-
Safety protection with electric brake and soft start for user safety
-
Innovative technology with automatic torque drive optimising cutting speed & torque
-
Compatible with AWS* for wireless connectivity with compatible dust extraction
-
Lightweight design and optimised balance improving the tools manoeuvrability
*AWS receiver sold separately
Specifications:
|
Bevel Capacity |
0°- 56° |
|
Blade Diameter |
185mm (7-1/4") |
|
Bore Diameter |
20mm |
|
Max. cutting capacities at 0° |
66mm |
|
Max. cutting capacities at 45° |
45.5mm |
|
Max. cutting capacities at max bevel |
34mm |
|
No Load Speed |
6,000rpm |
|
Overall Length |
331mm |
|
Skin weight |
3.4kg |
|
Voltage |
40V Max |
|
Weight (with battery) |
4.4kg (BL4040) |
Inclusions:
-
185mm Efficut Wood Blade (B-62044)
-
Dust Nozzle Set (196520-1)
-
Hex Wrench 6 (783204-6)
-
Rafter Hook (199386-8)
BL4040 x2 - 40V Max 4.0Ah Battery
Features:
-
Digital communication between the tool & battery for optimised performance
-
Heavy duty cell casing significantly improves the batteries impact resistance
-
Battery ventilation system maximises battery life
-
Short circuit prevention structure protects terminals from dust and moisture
-
3-layer moisture protection shields cells from water ingress
Specifications:
|
Cell Capacity |
4.0Ah |
|
Charge Time |
45mins |
|
Energy Capacity |
144Wh |
|
Net Weight |
1.0kg |
|
Voltage |
40V Max |
DC40RA - 40V Max Single Port Rapid Charger
Features:
-
Rapid charging system communicates data between battery and charger for optimum charging
-
Equipped with dual cooling fans, cooling the battery & charging circuit for rapid charging
-
Compatible with ADP10 adaptor (optional accessory) for charging 18V LXT batteries
-
Large charging status indicator light & selectable full charge melody
Specifications:
|
Charge Time |
45mins (BL4040), 28mins (BL4025), 40mins (BL1860B using APD10) |
|
Net Weight |
1.0kg |
|
Voltage |
40V Max |
18V Charging Adaptor - ADP10
Features:
-
Adapts to DC40RA for rapid charging of 18V LXT batteries
-
Rapid charge an 18V 6.0Ah battery in 40mins
