Kukko HD 2-Armed Lug Puller with Oscillating & Height-Adjustable Legs
SKU: KUK205-01
205-01
DESCRIPTION
Application
Benefits
Operation
Resources
Shipping & Delivery

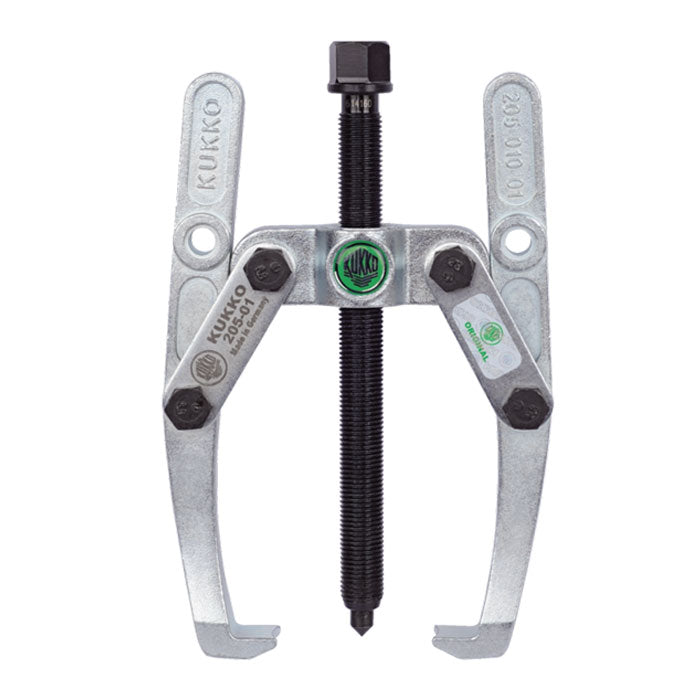

Kukko HD 2-Armed Lug Puller with Oscillating & Height-Adjustable Legs
The heavy, 2-armed lug puller with oscillating and height-adjustable puller legs is used for centric pulling off of large bearings, gear wheels and discs in all common sizes for handicraft, workshop and industry. It can be used to loosen any component that sits on a shaft and is freely accessible from the outside. The oscillating puller legs adapt to any installation situation and can be used universally due to the possibility of adjusting the clamping depth. The claw shape differs depending on the version.
Discover the Kukko HD 2-Armed Lug Puller with Oscillating & Height-Adjustable Legs at Mektronics Australia – your trusted source for quality tools and equipment!
For centric extraction of large bearings, gear wheels & discs
-
Adjustable puller legs for individual adjustment of the clamping depth
-
Oscillating puller legs offer a wide range of adjustment options
-
Pulling legs with different claw shape for flexible working
-
Claw end with slot provides hold for screw for additional support when pulling off
-
Safe positioning of the spindle due to rotatable spindle tip both on smooth surfaces and for centring (Switch Technology)
-
Anti-slip device on the spindle head for safe working with spanners
-
Spindle run-out to protect the thread
-
Apply the puller leg to the part to be removed from the outside
-
Swing the claws under the part
-
Pull the spindle manually to fix it
-
Move the hexagon on the spindle head with a ratchet or a combination spanner until the component is loosened
