Kukko Handy 2-Arm Puller with Power-Transmitting Self-Centring Puller Legs and Grease-Hydraulic Spindle
SKU: KUK844-1-B
844-1-B
DESCRIPTION
Application
Benefits
Specifications
Resources
Shipping & Delivery

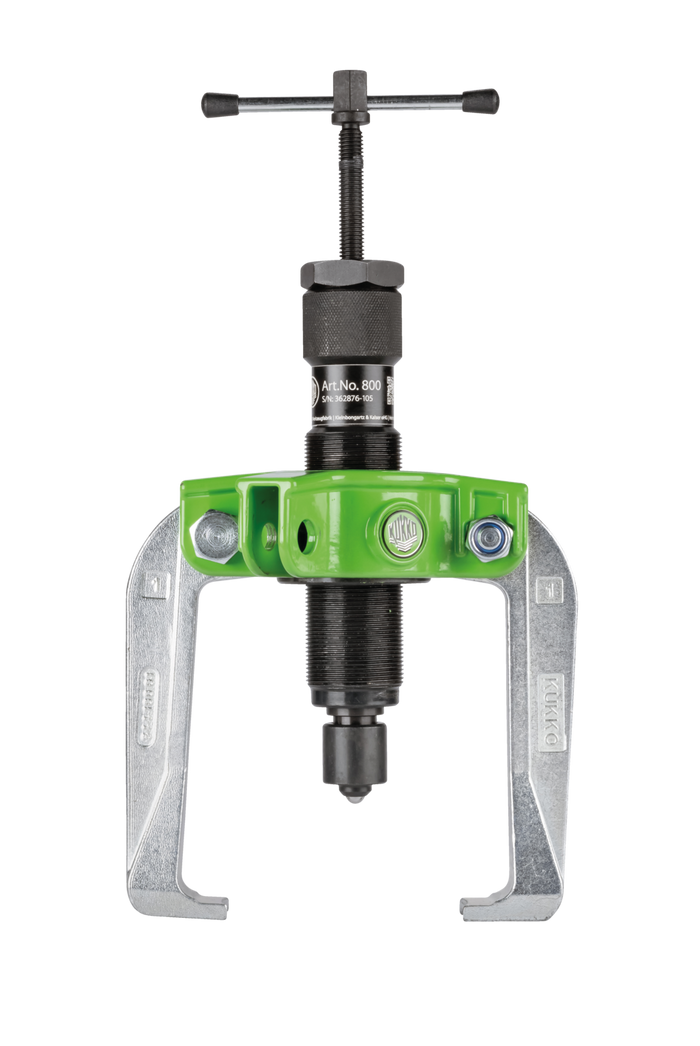

Kukko Handy 2-Arm Puller with Power-Transmitting Self-Centring Puller Legs and Grease-Hydraulic Spindle
The handy, 2-arm puller with power-transmitting, self-centring puller legs and grease-hydraulic spindle is used for pulling particularly tight bearings, gears and discs in all standard sizes for trade, workshop and industry. The puller legs are automatically centred when the spindle is tightened. The grease-hydraulic spindle of the 800 series is the motor of the puller and achieves a pulling force of 10 tonnes. As a true powerhouse, the spindle impresses with its compact design, ease of use and transportability. The spindle is ribbed on the sides to provide a particularly good grip for the fingers when repositioning.
Discover the Kukko Handy 2-Arm Puller with Power-Transmitting Self-Centring Puller Legs and Grease-Hydraulic Spindle at Mektronics Australia – your trusted source for quality tools and equipment!
-
For pulling off particularly tight bearings, gearwheels and pulleys
-
Self-centring of the legs by manually tightening the spindle (Autogrip Technology)
-
Spindle extensions enable quick customisation to a wide range of requirements
-
Hydraulic spindle guarantees easy and controlled removal of particularly tight parts with little effort
-
Slim design of the legs makes it possible to reach places that are difficult to access
-
No further tools are required for the pulling process
-
Total width: 156mm
-
Total depth: 67mm
-
Total height: 260mm
-
Net weight: 3.39kg
-
Span outside pull-off (min): 26mm
-
Span outside pull-off (max): 100mm
-
Clamping depth outside pull-off: 100mm
-
Hook root thickness at the tip (claw thickness): 6.5mm
-
Hook base width (claw width): 25.5mm
-
Hook base depth usable (claw depth usable): 40mm
-
Total hook root depth (total claw depth): 40mm
-
Total claw thickness (claw distance to base surface): 6.5mm
-
Max torque (Nm): 40Nm
-
Material: Tool steel
-
Scale division: No
