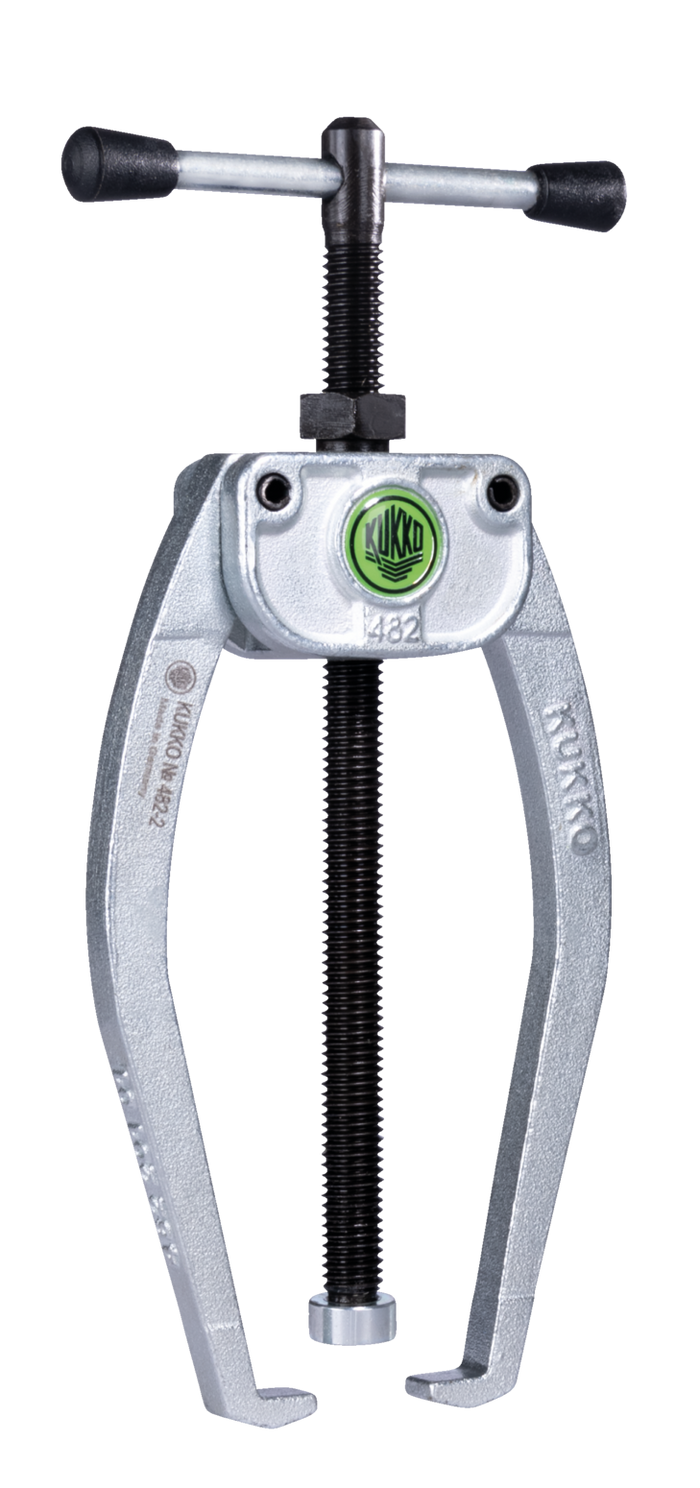

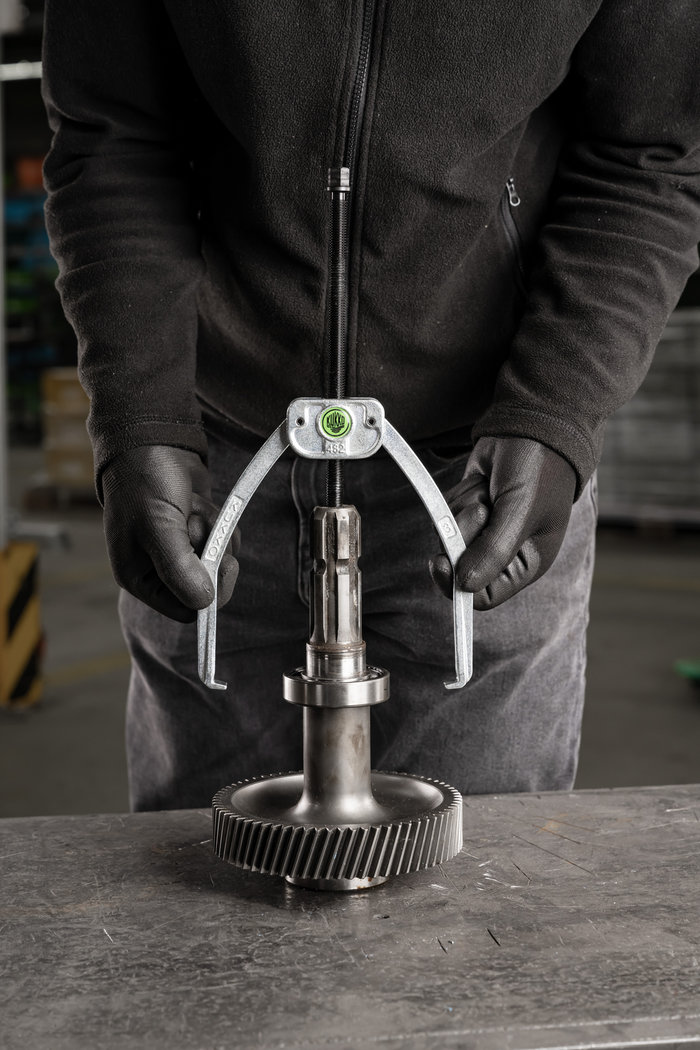

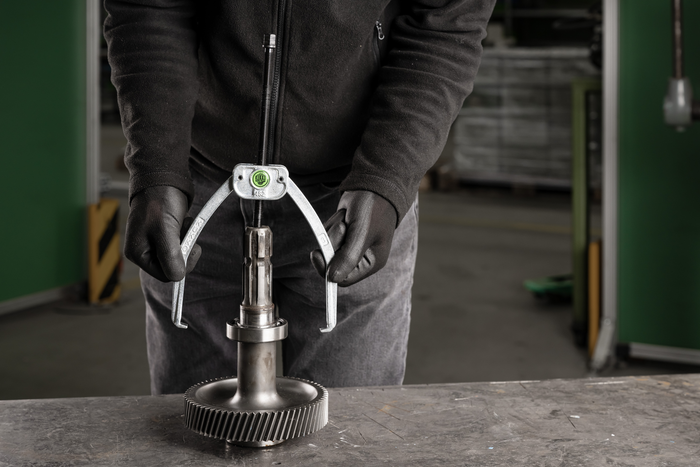

The handy, 2-arm puller with power-transmitting, self-centring and clamping puller legs is used to pull bearings, gears and discs for narrow and hard-to-reach spaces. It can be used to remove any component that sits on a shaft and is freely accessible from the outside. Thanks to the integrated force transmission with spring mechanism, the clamping force increases in proportion to the extraction force. The puller legs are automatically centred when the spindle is tightened. The free-moving pin on the T-handle guarantees comfortable, one-handed tightening of the spindle in the tightest of spaces.
Discover the Kukko Handy 2-Arm Puller with Power-Transmitting Self-Centring and Clamping Puller Legs at Mektronics Australia – your trusted source for quality tools and equipment!
For pulling off bearings, gears and discs for narrow and poorly accessible gaps
Self-centring of the legs by manually tightening the spindle (Autogrip Technology)
Integrated, free-moving pin on the T-handle guarantees manual spindle drive in the tightest of spaces
Slim design of the legs makes it possible to reach places that are difficult to access
Thread form enables quick tightening of the spindle as fewer turns are required
No further tools are required for the pulling process
Total width: 105mm
Total depth: 21mm
Total height: 150mm
Net weight: 0.275kg
Span outside pull-off (min): 4mm
Span outside pull-off (max): 85mm
Clamping depth outside pull-off: 90mm
Hook root thickness at the tip (claw thickness): 2.5mm
Hook base width (claw width): 8mm
Hook base depth usable (claw depth usable): 8mm
Total hook root depth (total claw depth): 18mm
Total claw thickness (claw distance to base surface): 5mm
Scale division: No
