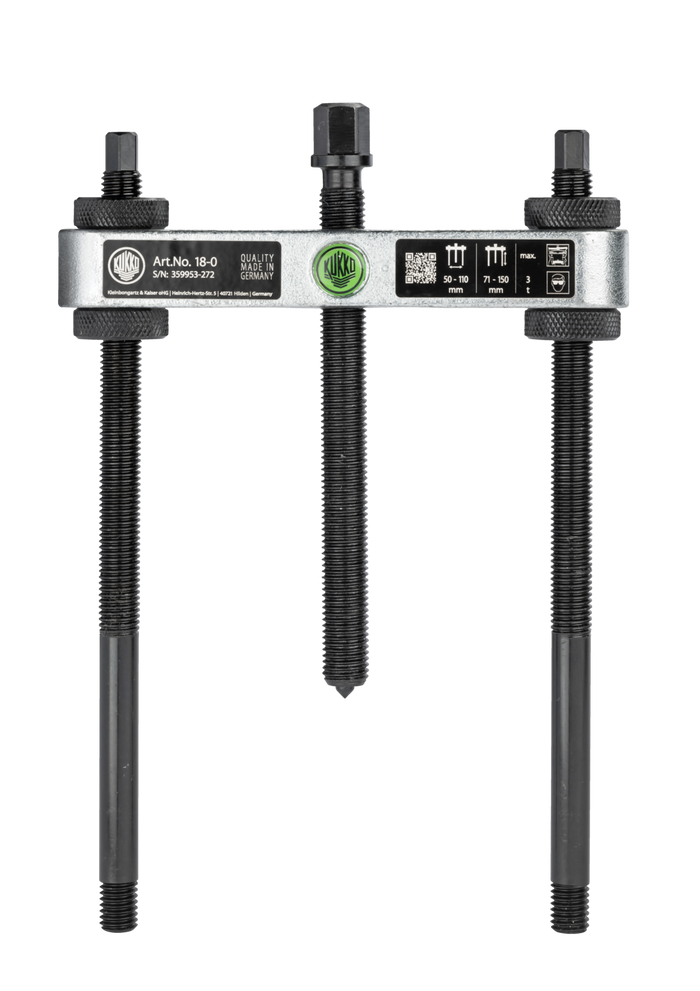

Kukko Puller

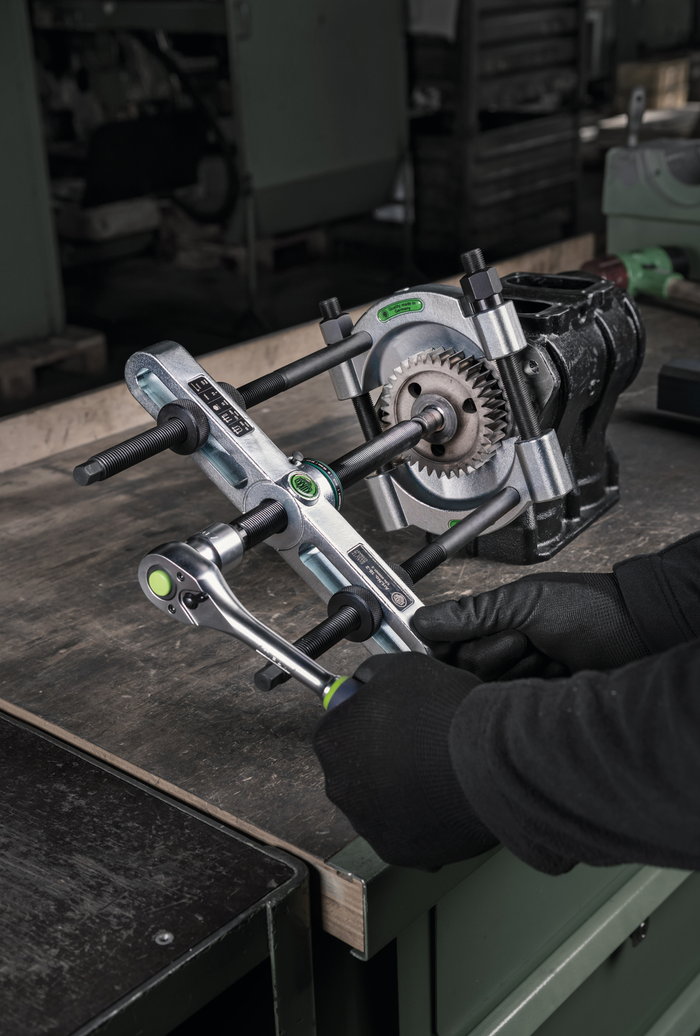

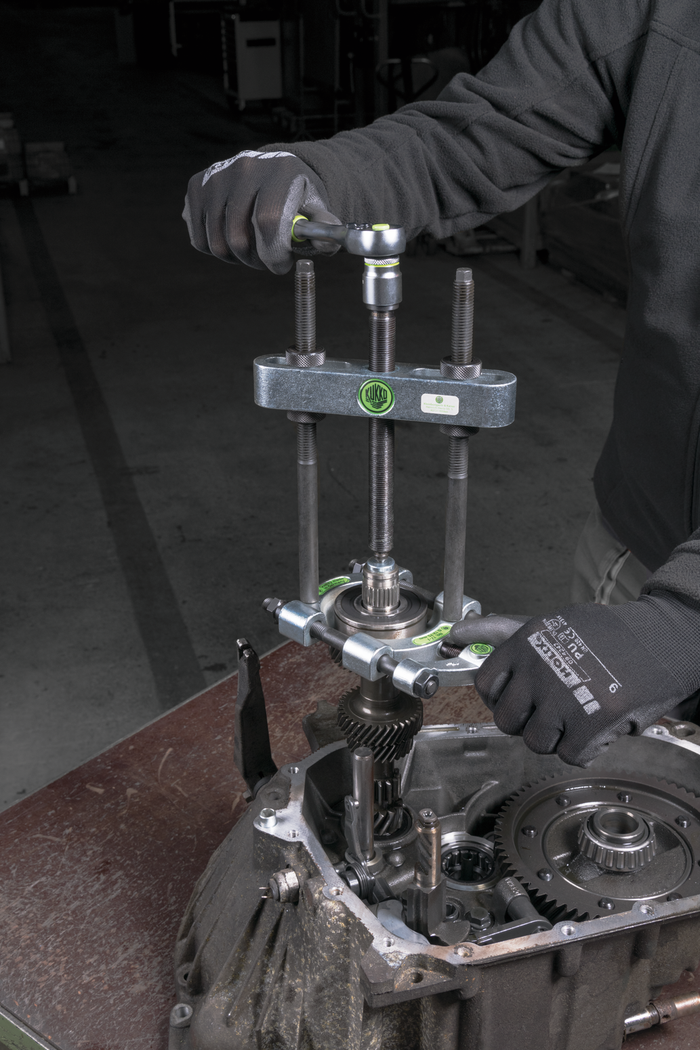

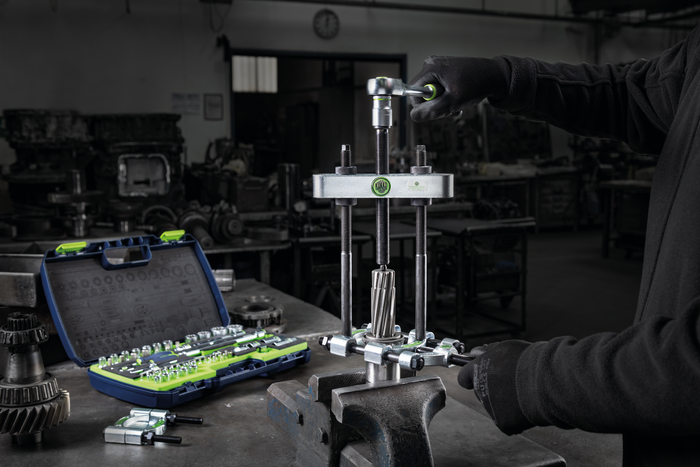

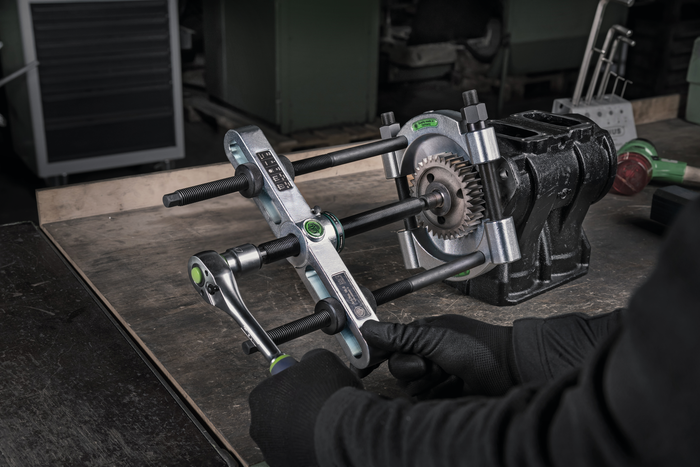

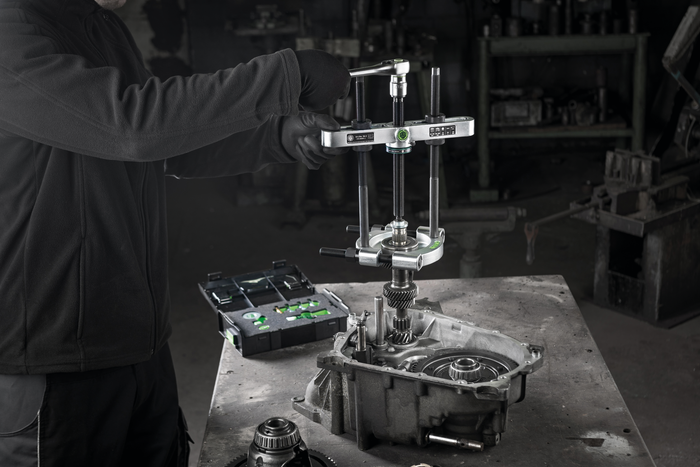

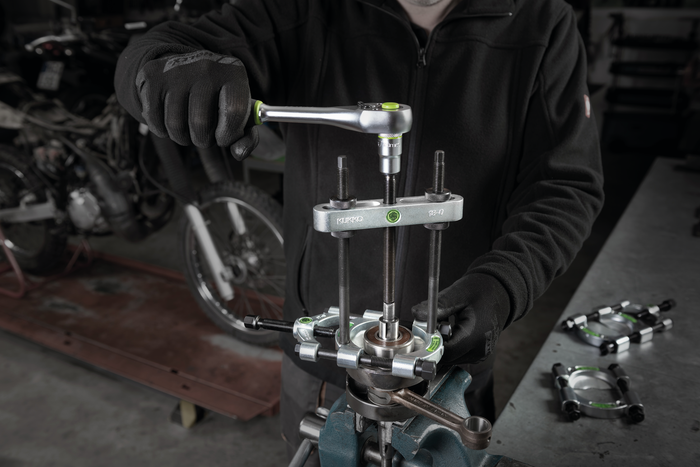

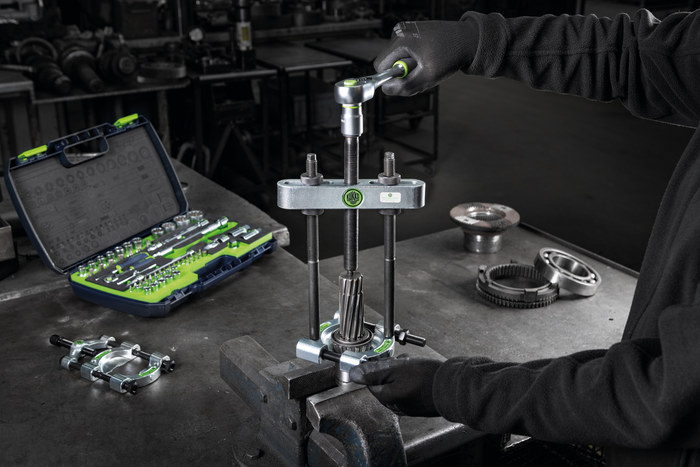

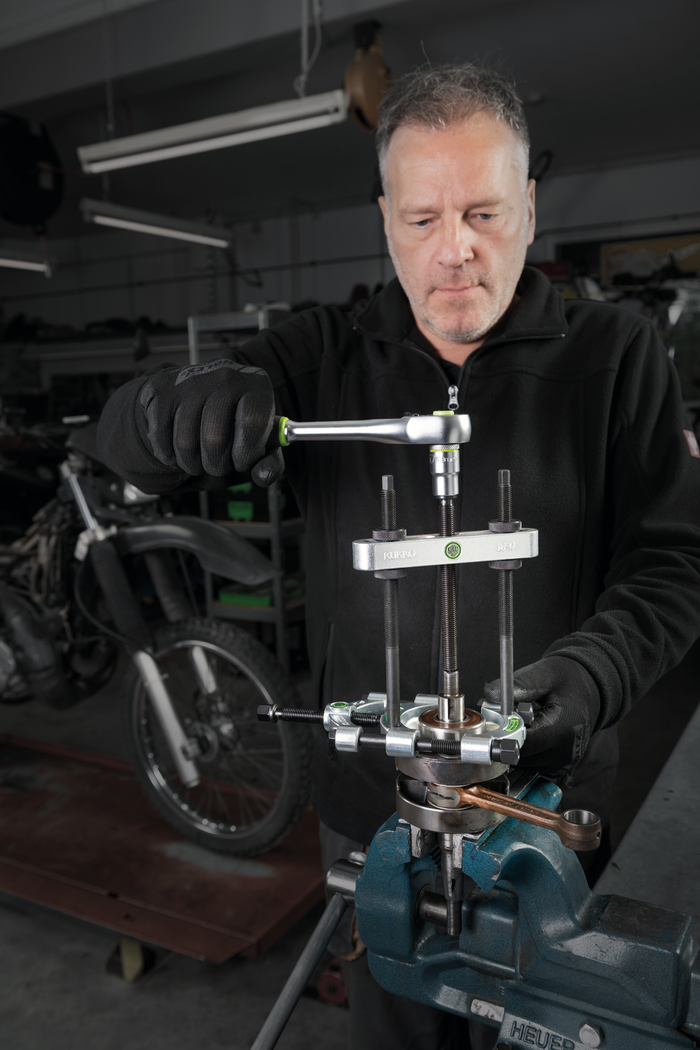

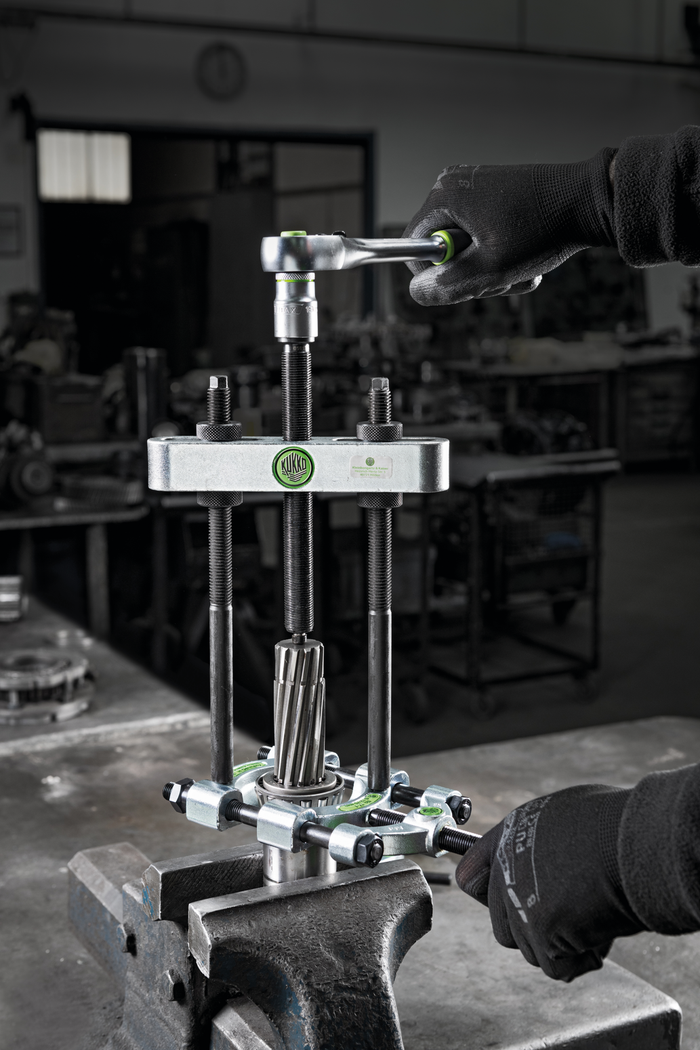

The Series 18 pullers are used together with the Series 15 and 17 separators to pull off flat or thin-walled parts in trade, industry and workshops when there is not enough space for pulling hooks. The separating-pulling process is able to gently separate these parts before they can be pulled off from the outside.
Discover the Kukko Puller at Mektronics Australia – your trusted source for quality tools and equipment!
-
Together with the separating devices of series 15 and 17 for the removal of flat or thin-walled parts
-
The screw connection between the separating and extracting device ensures maximum stability during extraction
-
If the separating jaws are screwed into the tightening device the other way round, the contact surface is enlarged and pulled off more gently
-
Thanks to its simple design, special separating devices can also be easily created for the 18 series for in-house use
-
Total width: 144mm
-
Total depth: 26mm
-
Net weight: 0.825kg
-
Width across flats: 13mm
-
Max torque (Nm): 40Nm
-
Material: Tool steel
-
Clamping depth: 150mm
-
Total length of the spindle: 150mm
-
Width across flats: 8mm
-
Mounting thread for separator (nominal dimension): M10
-
Diameter of the thrust piece: 5mm
-
Puller span (min-max): 32mm-114mm
-
Puller span (min): 32mm
-
Clamping width of puller span (max): 114mm
