Kukko Ball Joint Ejector with Lever Transmission Medium/Heavy Trucks Buses/Construction Vehicles

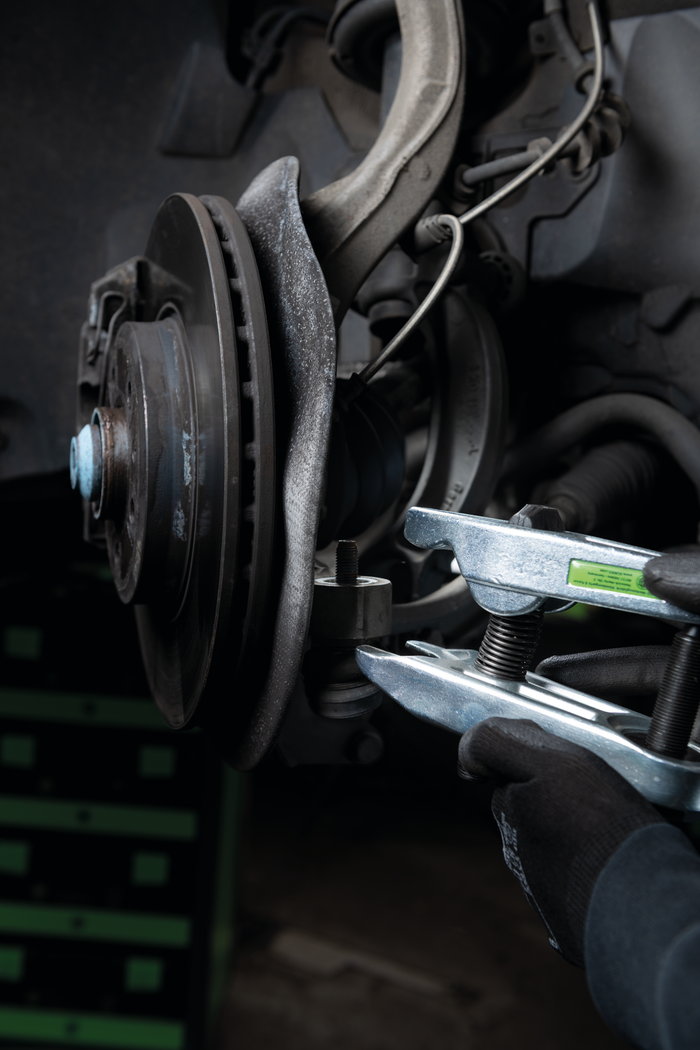

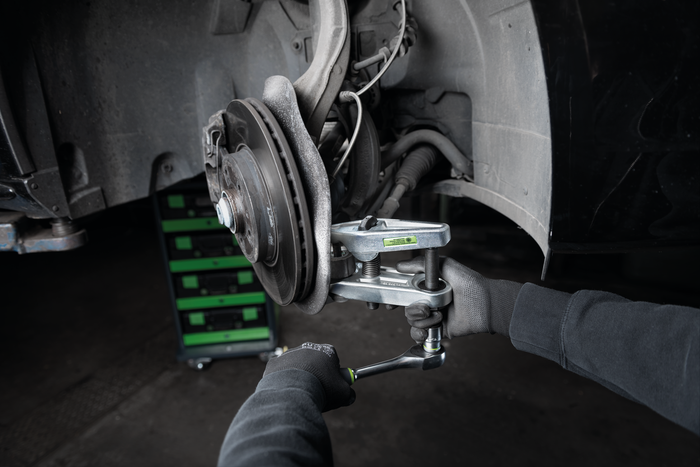

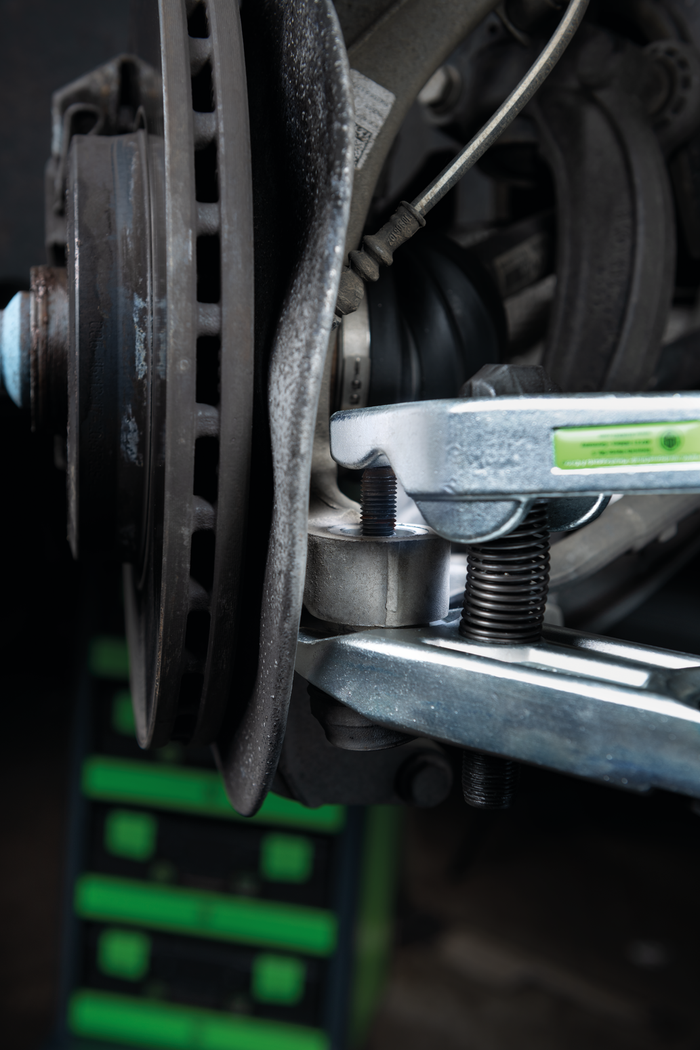

The Series 129 ball joint extractor with lever transmission is used to press out ball studs when removing ball joints and track rod knobs on track rods for medium and heavy trucks, buses and construction vehicles. Thanks to its lever transmission, the ball joint extractor can also apply a lot of force where there is hardly any access space. The 129 series impresses with its wide range of applications. Different versions enable optimum application in every situation.
Discover the Kukko Ball Joint Ejector with Lever Transmission Medium/Heavy Trucks Buses/Construction Vehicles at Mektronics Australia – your trusted source for quality tools and equipment!
-
For pushing out the ball studs when removing ball joints as well as tie rod knobs on tie rods, for medium and heavy trucks, buses and construction vehicles
-
Better feel thanks to modern and ergonomic design
-
Low force required for high extraction performance
-
The clamping depth can be easily adjusted using a spring mechanism
-
The bolt can be adjusted to flexibly adapt the clamping range
-
Total width: 68mm
-
Total depth: 177mm
-
Total height: 160mm
-
Net weight: 3.26kg
-
Width across flats: 19mm
-
Max torque Nm: (125Nm)
-
Material: Tool steel
-
Fork thickness at the tip: 4.4mm
-
Fork opening (jaw opening): 40mm
-
Fork height (jaw height): 28mm
-
Level clamping range: 85mm
