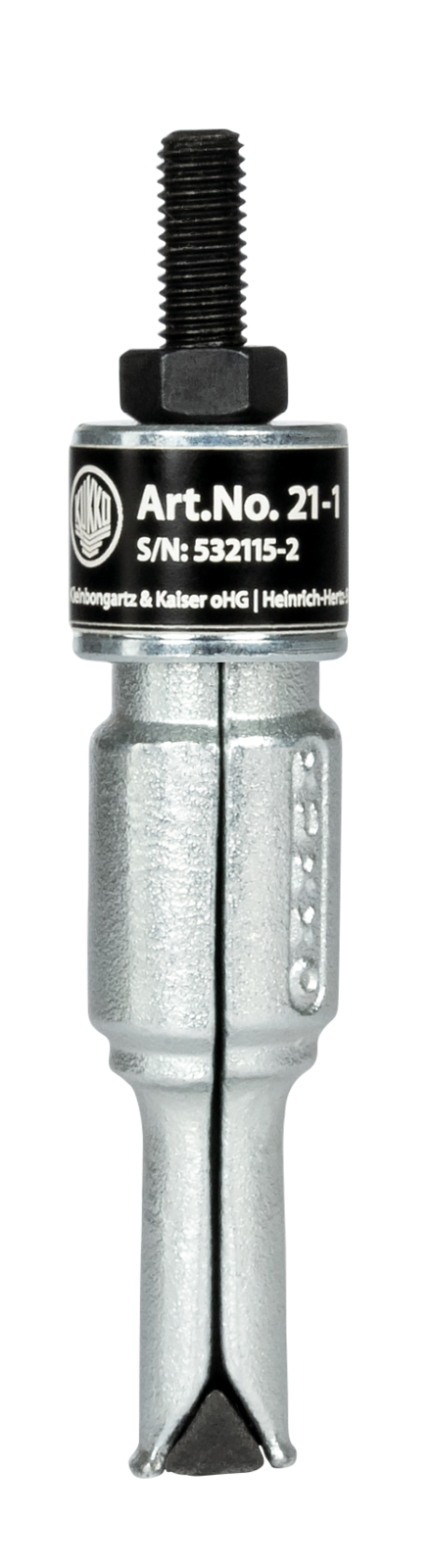

Kukko 2-Shell Internal Extractor 21-1

For extracting internal bearings, bearing outer rings and bushes

• The powerful design and built-in spindle stop ensure not only strong but also safe work

• Thanks to the extraordinary clamping effect and the mechanical spindle, even bearings that are tightly seated on the rear wall are pulled out safely and quickly

• Shaping ensures a secure grip when mounting and swivelling out bearings or inner rings that form a blind hole

• The thread adapters for internal extractors that may be required are included in the scope of delivery of the counter stays and slide hammers

• Determine the internal diameter of the ball bearing and select a suitable internal extractor

• Insert the internal extractor into the bore and tighten the clamping nut

• If a support surface is available, select a counter stay, otherwise select a slide hammer

Operation with counter stay:

• Support the counter stay on the housing and screw it onto the wedge spindle of the internal extractor

• Hold the handle of the counter stay and pull out the bearing safely by tightening the nut

• Retighten the clamping nut when pulling out

Operation with slide hammer:

• Screw the slide hammer rod onto the wedge spindle of the internal extractor

• Use the slide hammer with a striking motion to pull out the bearing

• Total Height: 96mm

• Width Across Flats: 13mm

• Span inside pull-out (min.): 12mm

• Span inside pull-out (max): 16mm

• Max. tractive force [US t. sh.]: 0.00 tn sh

• Diameter of the extractor: 17mm

• Insert Depth: 25mm

• Country of Origin: Germany

• Material: Tool steel

• Series: 21

• Net Weight: 0.11 kg
