Kukko 2-Arm Puller with Self-Clamping Intersection Puller Legs
SKU: KUK14-3
14-3
DESCRIPTION
Application
Benefits
Specifications
Resources
Shipping & Delivery
Kukko 2-Arm Puller with Self-Clamping Intersection Puller Legs

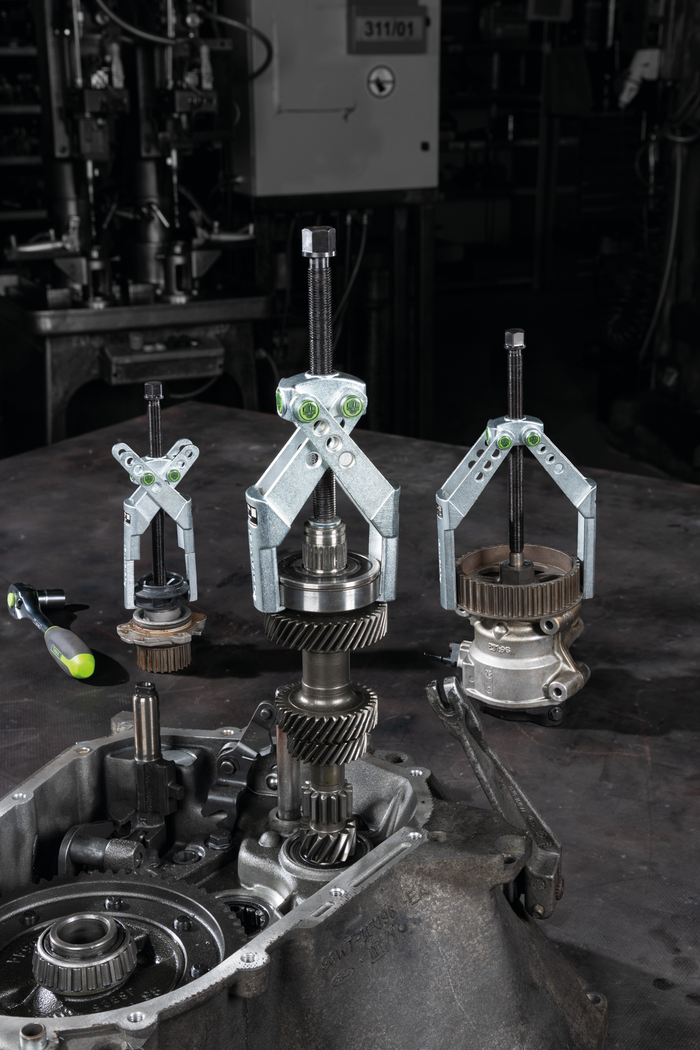

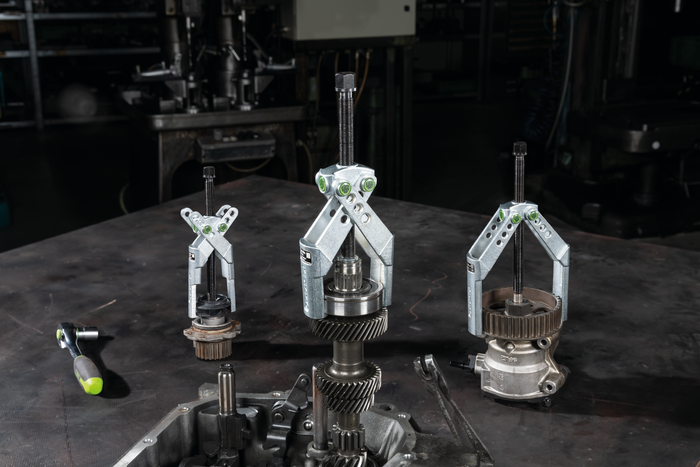

The 2-arm puller with self-clamping, intersecting puller legs is used to pull pinions, pulleys, bearings and similar components for narrow gaps. Self-locking retaining pins guarantee quick and easy adjustment for variable clamping width ranges. The puller is self-tightening and easy to use. During the extraction process, the scissor-like leg guide presses the claws firmly against the part to be extracted. This ensures a secure hold at all times.
Discover the Kukko 2-Arm Puller with Self-Clamping Intersection Puller Legs at Mektronics Australia – your trusted source for quality tools and equipment!
-
For pulling off pinions, pulleys, bearings and similar components for narrow gaps
-
Quick and easy mounting of the puller legs
-
Extremely wide span range due to variable mounting of the puller legs
-
Span width and clamping depth can be customised
-
If space is limited, the two puller legs can be fitted first and then
-
fixed in place with the crossbar and retaining pins in the second step
-
Self-locking retaining pins that do not fall out during work thanks to ball lock
-
Puller legs can be reversed, increasing the clamping range many times over
-
Total width: 166mm
-
Total depth: 51mm
-
Total height: 220mm
-
Net weight: 1.28kg
-
Width across flats: 17mm
-
Span outside pull-off (min): 5mm
-
Span outside pull-off (max): 140mm
-
Clamping depth outside pull-off: 160mm
-
Hook root thickness at the tip (claw thickness): 4mm
-
Hook base width (claw width): 30mm
-
Hook base depth usable (claw depth): 5mm
-
Total hook root depth (total claw depth): 18mm
-
Total claw thickness (claw distance to base surface): 4mm
-
Max torque (Nm): 100Nm
-
Material: Tool steel
-
Scale division: No
