Knipex VDE Snipe Nose Side Cutting Pliers 200mm
SKU: KNI2616200
26 16 200
DESCRIPTION
Features
Specifications
Shipping & Delivery

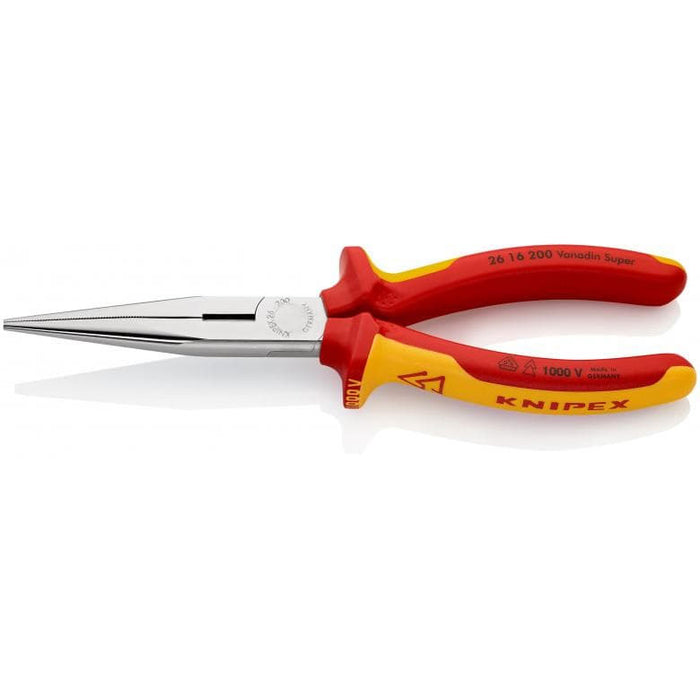

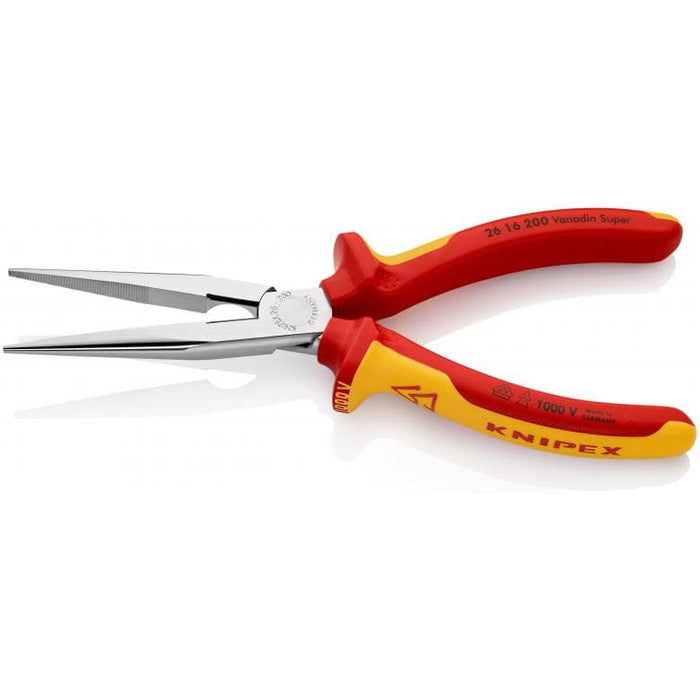

Knipex VDE Snipe Nose Side Cutting Pliers 200mm
The Knipex 26 16 200 is primarily used by electricians carrying out installation, wire feeding and assembly work and who also want a professional cutting function on the pliers. The cutting edges of the pliers are shaped to produce a bite type cut. The cutting edges are additionally induction hardened to approx. 61 HRC so that the pliers can even be used to cut hard wire.
The precision tips made of vanadium electric steel are elastic and stable when twisted. This allows the manual force deployed using these pliers to be well measured, which is a particular benefit with delicate components. The needle nose pliers can also be used for powerful gripping and holding – and for cutting. Thanks to the position of the cutting edges near the joint which is advantageous for the transmission of force, good cutting capacities are achieved. Medium-hard wire can be cut up to Ø 3.2 mm and hard wire up to Ø 2.2 mm.
In the control cabinet, on a machine, on an electric motor, when feeding and connecting wire to terminals, in junction boxes, in control cabinet construction: the VDE tested Knipex 26 16 200 is in its element wherever space is tight. The qualities of the snipe nose side cutting pliers from Knipex will be immediately apparent when lines and wires need to be held, fed and cut. The quality chrome plating offers good protection against dirt and corrosion. This corrosion resistance makes special sense when the pliers are kept permanently in the service vehicle, where they may be exposed to condensation caused by temperature changes.
Discover the Knipex VDE Snipe Nose Side Cutting Pliers 200mm at Mektronics Australia – your trusted source for quality tools and equipment!
-
Elastic tips: dimensionally stable even when twisted
-
Distortion-tolerant, elastic precision tips
-
Half-round, long, tapered jaws
-
With cutting edges for soft, medium-hard and hard wire
-
Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
-
Straight jaws
-
Vanadium electric steel, forged, multi stage oil-hardened
-
Multi-component grips
-
Surface: chrome-plated / zinc-plated / nickel-plated
-
Article No: 26 16 200
-
EAN: 4003773022831
-
Pliers: chrome-plated
-
Head: chrome-plated
-
Handles: insulated with multi-component grips, VDE-tested
-
Weight: 206 g
-
Dimensions: 200 x 56 x 19 mm
-
Standard: DIN ISO 5745 DIN EN 60900 IEC 60900
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacities medium hard wire (diameter): Ø 3.2 mm
-
Cutting capacities hard wire (diameter): Ø 2.2 mm
-

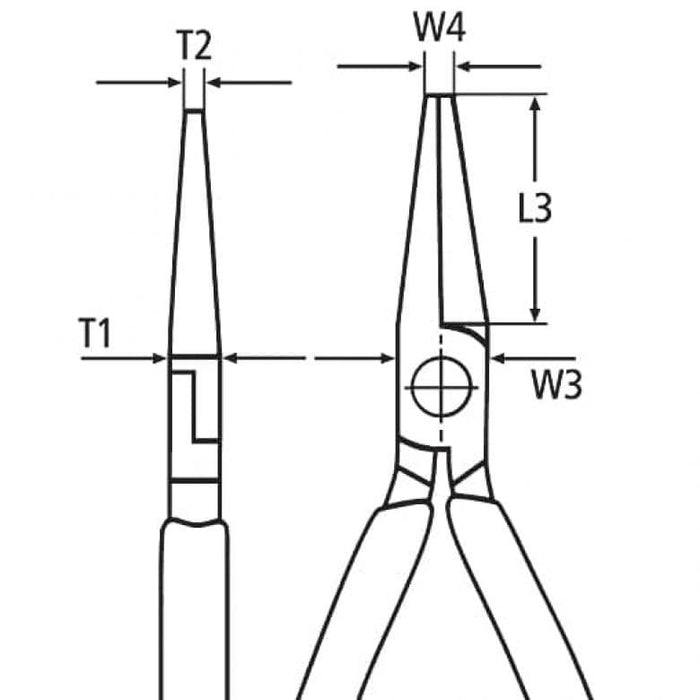

Jaw thickness (joint) (T1): 9.5 mm
-
Tips width (W4): 3.0 mm
-
Tips thickness (T2): 2.5 mm
-
Jaw length (L3): 73.0 mm
-
Head width (W3): 18 mm
-
VDE tested: yes
