Knipex 97 53 18 Twistor16 Self-Adjusting Crimping Pliers for Wire Ferrules with Rotatable Die Head
SKU: KNI975318
97 53 18
DESCRIPTION
Features
Specifications
Shipping & Delivery
Knipex 97 53 18 Twistor16 Self-Adjusting Crimping Pliers for Wire Ferrules with Rotatable Die Head
Firstly, you can work faster thanks to the self-adjusting adaptation to the wire ferrule size. Secondly, you also work more effortlessly thanks to the ingenious toggle lever mechanism (good force transmission), two-component grips (ergonomics!) and low weight (only 478 grams). And thirdly, the releasable forced locking mechanism of the Twistor16® guarantees consistently high crimping quality. Fourthly, with the unique design of the Twistor16®, crimping is possible even in tricky workspaces. One more thing: The special quality, oil-hardened crimping pliers made of chrome vanadium electric steel are extremely hard wearing. The result: a long service life!
Crimps wire ferrules from 0.14 to 16mm² – from any direction!

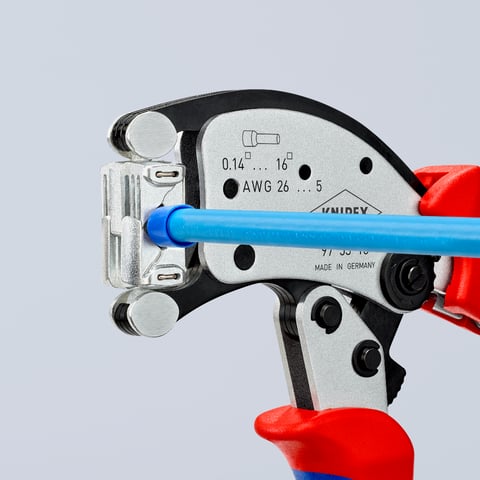

Difficult-to-reach cable ends? These no longer pose a problem with the Twistor16®. These crimping pliers from KNIPEX crimp wire ferrules from almost any working position. The secret: The slim crimping die, which can be freely rotated 360°, can be used from both sides, thus ensuring a great deal of flexibility and even more time saved during electrical installation work. Because the square crimp profile automatically adapts to the different cross-sections in the capacity range from 0.14 to 16 mm², no manual adjustment is required: Simply turn the crimping die towards the wire with ferrule as required, then insert, press, done!
Jack of all trades for practically every crimping task
The KNIPEX Twistor16® not only crimps single cables with all common cross-sections up to 16 mm², but also twin wire ferrules up to 2 x 6 mm². It crimps wire ferrules up to 16 mm in length in a single operational step. Longer wire ferrules can be crimped using the crimping die accessible from both sides (no depth limit!) by simply pushing the ferrule forward for a second crimping stroke.
Discover the Knipex 97 53 18 Twistor16 Self-Adjusting Crimping Pliers for Wire Ferrules with Rotatable Die Head at Mektronics Australia – your trusted source for quality tools and equipment!
-

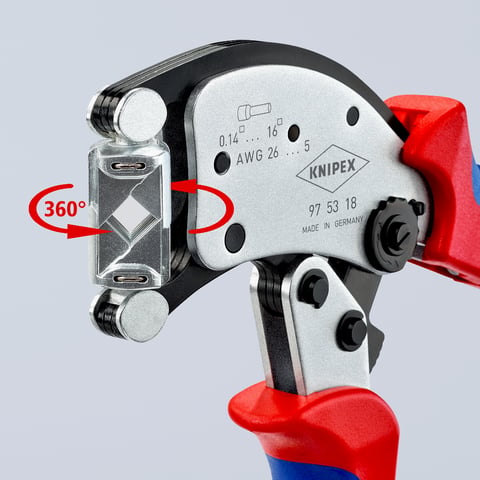

Crimp head can be rotated 360°, with 8 locking positions
-

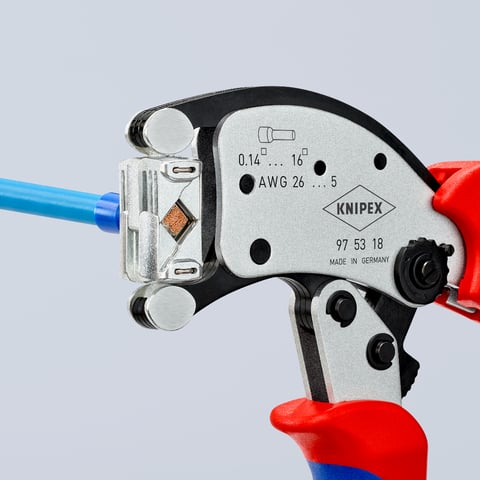

Square crimp profile, high capacity range from 0.14 to 16 mm²
-

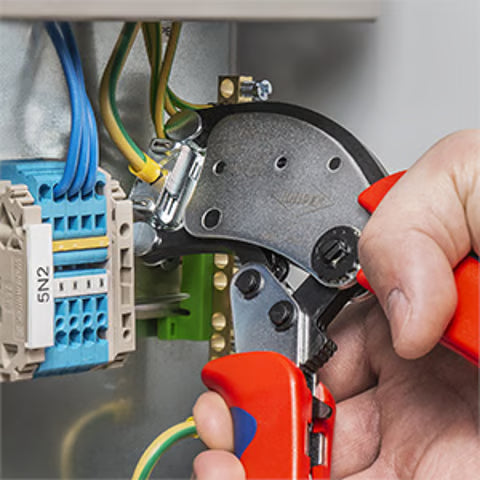

Wire ferrules can be crimped from almost any working position
-
Crimping pliers adjust automatically to different cross-sections
-

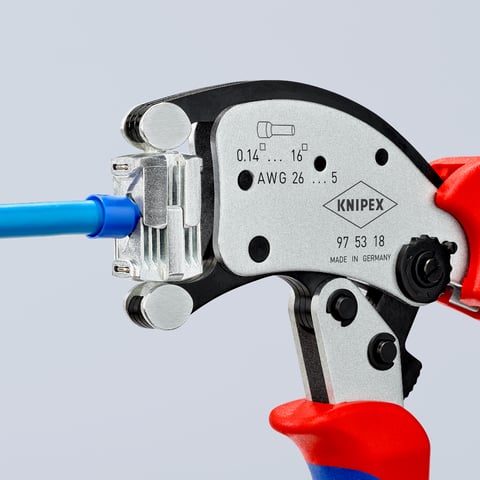

Crimp opening accessible from both sides, extra-long wire ferrules can be fed in
-
Crimping of Twin wire ferrules up to 2 x 6 mm² possible
-
Repetitive, high crimping quality due to ratchet mechanism (unlockable)
-
Light and handy tool, manual force reinforced by toggle lever mechanism
-
Self-adjusting to the desired wire ferrule size: no crimping errors due to incorrect setting
-
Twin wire ferrules up to 2 x 6 mm² can be crimped
-
Slim head for optimal access
-
The crimping pressure is precision-adjusted (calibrated) at the factory and can be re-adjusted
-
High operating comfort due to the handy design, smart toggle lever mechanism and low weight
-
Part No: 97 53 18
-
EAN: 4003773082729
-
Pliers: chrome-plated
-
Head: chrome-plated
-
Handles: with multi-component handles
-
Weight: 478g
-
Dimensions: 200 x 80 x 26mm
-
REACH compliant: contains SVHC
-
RoHS compliant: not applicable
-
Application: Wire ferrules
-
Capacity in square milimetres: 0.14 — 16mm²
-
AWG: 26 — 6
- Number of crimp profiles: 1
