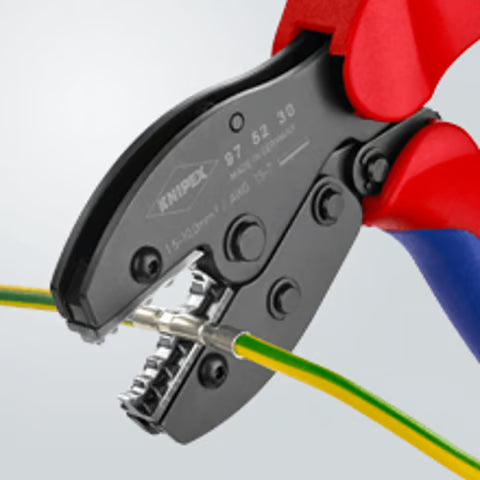

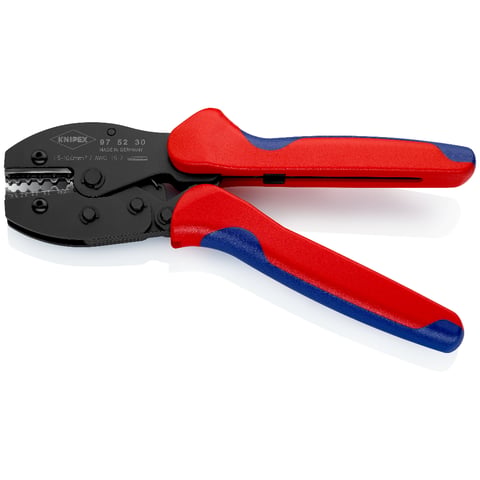

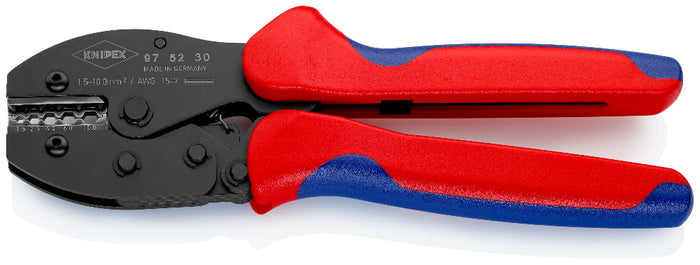

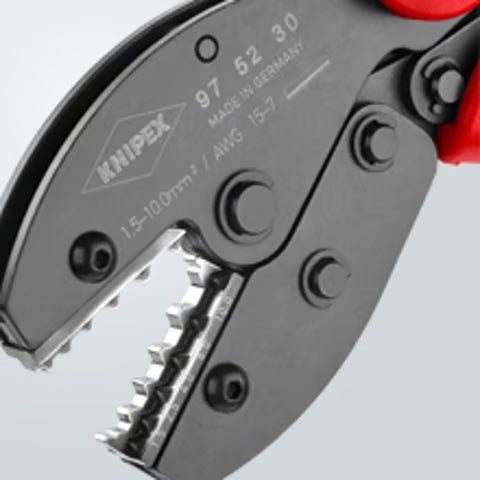

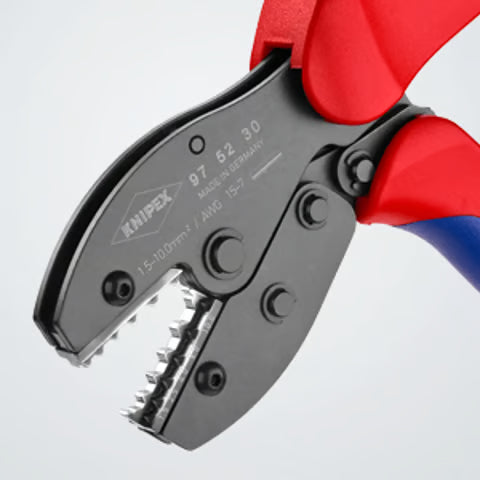

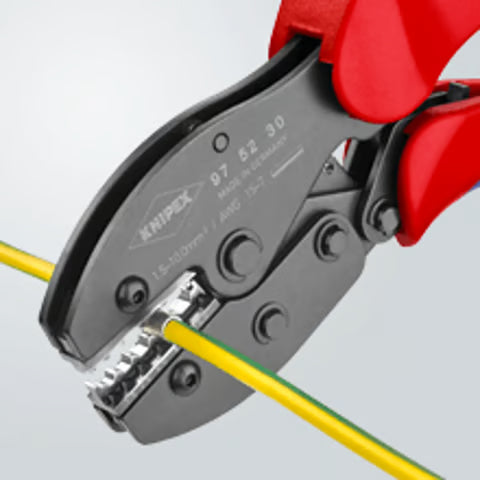

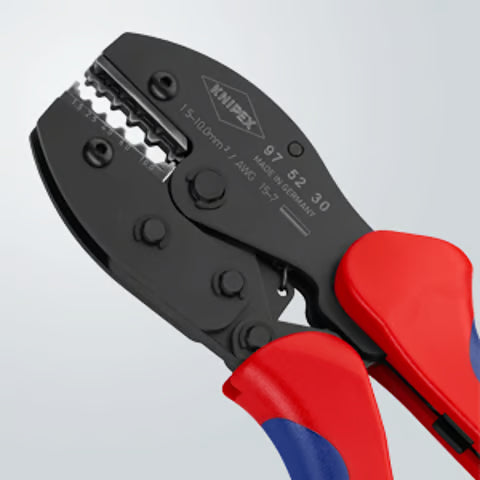

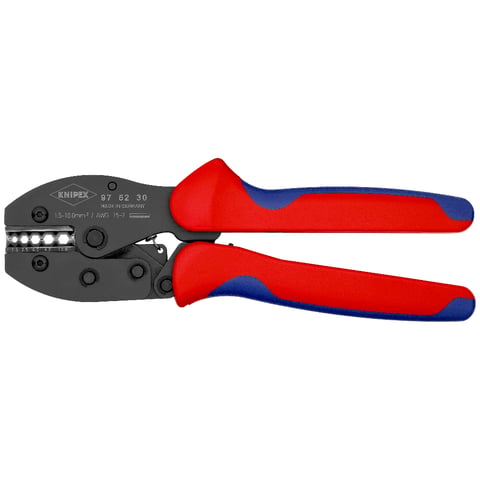

Knipex 97 52 30 Crimp Lever Pliers PreciForce
SKU: KNI975230
97 52 30
DESCRIPTION
Features
Specifications
Shipping & Delivery
Knipex 97 52 30 Crimp Lever Pliers PreciForce
Knipex offers an extensive range of quality universal and special pliers for crimping. Those who use tools a lot and professionally every day expect a quality that permits simple and safe work and which lasts for many years of hard use.
We produce our tools from quality materials, machine them with great precision on up-to-date machinery, and harden them carefully using repeated heat treatment.
Every pair of Knipex pliers represents more than 130 years of specialist know-how.
Precise crimping – which is why they are called Knipex PreciForce
Crimping is high-precision work. Crimp profile and crimping pressure must be precisely matched to the connectors and cable used to create a connection that is permanently mechanically and electrically safe and secure.
All pliers in the Knipex PreciForce range have a light, compact design with toggle lever reinforcement of manual force and precision crimp profile. The result: the ideal, hand-friendly amount of pressure is exerted with precision on the connector being connected to the cable.
Integral lock only opens pliers when the optimal crimping pressure has been reached
The Knipex PreciForce relieves strain for the user by doing the job of measuring manual force for him. The Knipex 97 52 30 is ideally set (calibrated) in the factory to press connectors with a capacity from 1.5 to 10.0 mm². The integral lock blocks premature opening of the pliers before the set upper limit has been achieved using hand pressure, enabling the user to concentrate completely on crimping. The integral lock can optionally be released manually, and the pressure of the pliers can be adjusted by the user if need be.
Accurately machined, durable crimp profiles each for a specific application
With the Knipex PreciForce series, every crimp application has its own version with specially machined crimp profile. One specialist pair of pliers, one application. The Knipex PreciForce is manufactured from special high-grade chrome vanadium electric steel and is oil-hardened. The Knipex PreciForce 97 52 30 is therefore a purchase that will last for a long time and for a special field of application: the crimping of non-insulated press connectors.
Discover the Knipex 97 52 30 Crimp Lever Pliers PreciForce at Mektronics Australia – your trusted source for quality tools and equipment!
-
Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
-
Precise, factory calibrated crimping pressure
-
Efficient lever action ensures a high crimping force
-
Good handling due to favourable handle position, low weight, short design and ergonomically shaped handles
-
Crimping die is not exchangeable
-
Crimping pliers for crimping non-insulated press connectors with open cable entry
-
Crimping pressure accurately calibrated in the factory, and adjustable where necessary
-
With integral lock, release mechanism
-
Manufactured from high-grade chrome vanadium electric steel, oil-hardened
- With multi-component grips
-
Part No: 97 52 30
-
EAN: 4003773051855
-
Pliers: burnished
-
Handles: with multi-component handles
-
Weight: 477g
-
Dimensions: 220 x 70 x 31mm
-
REACH compliant: contains SVHC
-
RoHS compliant: not applicable
-
Application: non-insulated terminals in accordance with DIN 46235 and crimp connectors in accordance with DIN 46267
-
Capacity in square millimetres: 1.5 — 10.0 mm²
-
Number of crimp profiles: 5
- AWG: 16 — 8
