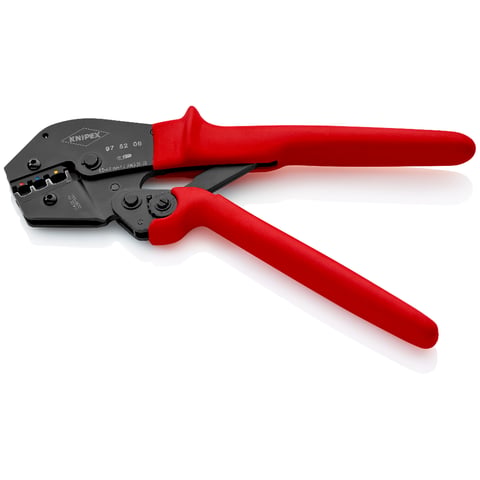

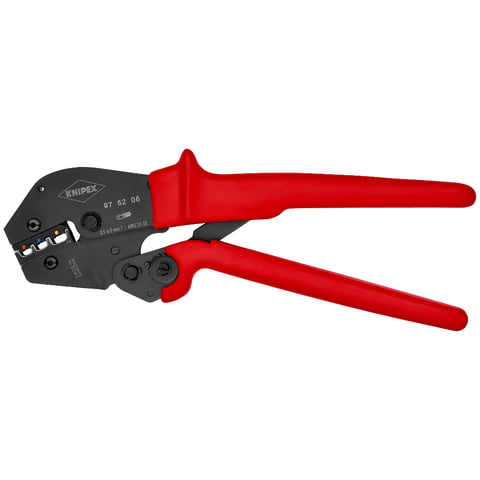

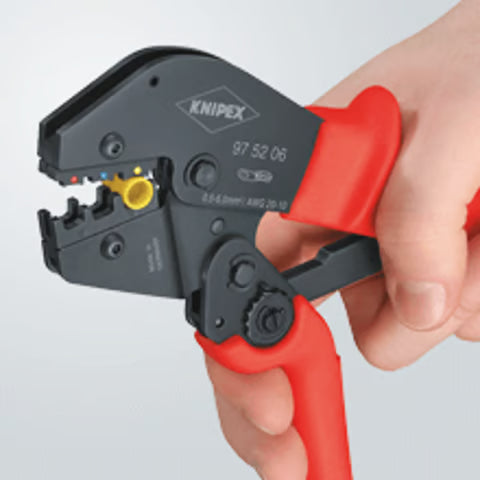

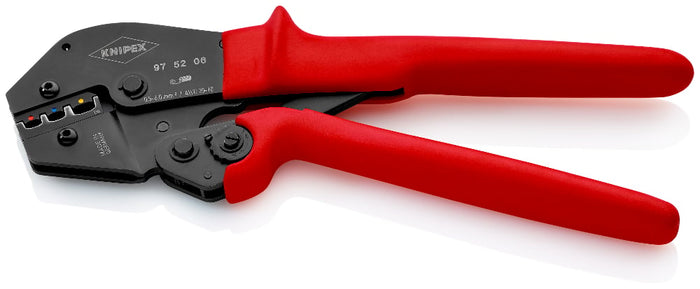

Knipex 97 52 06 Crimp Lever Pliers
SKU: KNI975206
97 52 06
DESCRIPTION
Features
Specifications
Shipping & Delivery
Knipex 97 52 06 Crimp Lever Pliers
Professional crimping results –the ideal crimping pressure automatically
The crimping of connectors normally requires a fair amount of attention in order to create connections that are electrically and mechanically safe and secure. Things are different when using the Knipex 97 52 06 crimping pliers, which give the user a tool that intuitively enables him to do everything right. Insulated cable lugs, plug connectors and butt connectors are crimped to the conductors reliably in the precision-machined crimp profiles.
The integral lock ensures that the pliers only open once the optimal crimping pressure set in the factory has been reached. The crimping pressure can be adjusted; the integral lock can be released where necessary.
30 % less effort required – the leverage principle is used twice
Double use of the leverage principle – continuous relief from strain: up to 30 % less effort required compared to conventional crimping pliers, made possible by applied physics. The handles of the Knipex 97 52 06 are shaped to produce a long lever arm. This also permits two-handed operation for large conductor cross-sections. Special leverage is also integrated in the crimping pliers, so that even a low level of manual force gets to the conductor in a carefully measured way. The user can produce stable connections from conductors and crimp connectors with little time and effort.
This is how it is done: three hand movements to produce a professional crimp connection

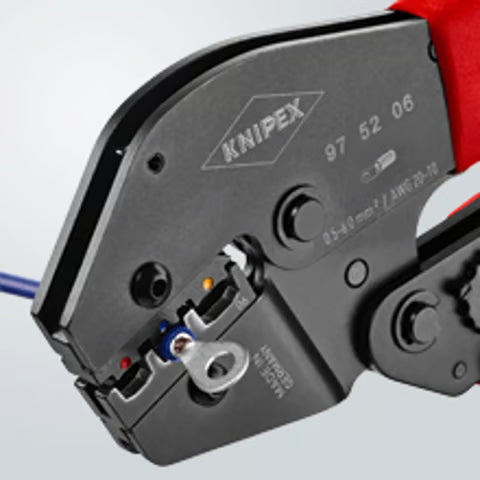

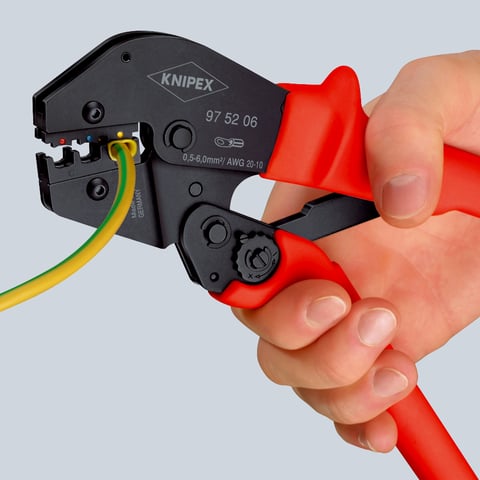

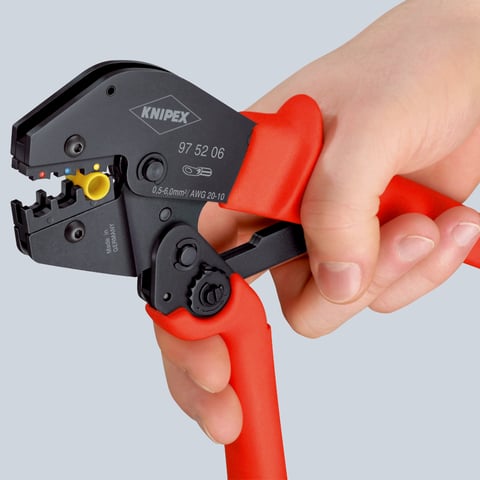

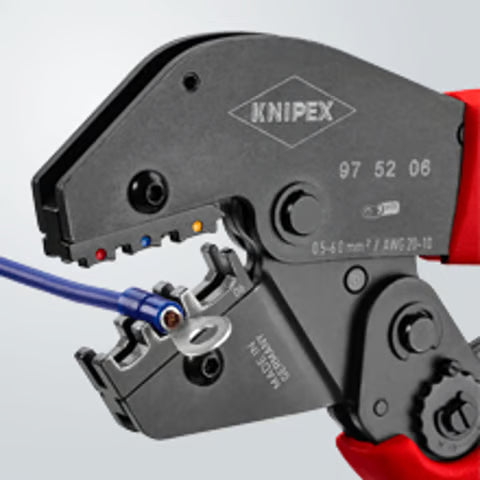

Depending on the application, an insulated cable lug, plug connector or butt connector is inserted in the relevant crimping die. The lower handle is pulled up using two fingers, until both jaws are resting on the connector to be crimped, thereby fixing it in the crimp profile. After inserting the stripped cable, crimping is carried out. The Knipex 97 52 06 has been designed for many years of use. The high Knipex quality standards and selection of materials with high-grade chrome vanadium electric steel ensure that all the qualities of these crimping pliers will last for a long time.
Discover the Knipex 97 52 06 Crimp Lever Pliers at Mektronics Australia – your trusted source for quality tools and equipment!
-
The lever transmission reduces the handforce up to 30% compared with regular crimping pliers
-
Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
-
Precise, factory calibrated crimping pressure
-

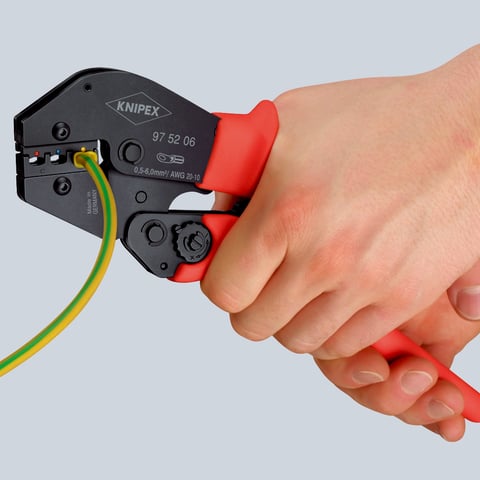

Two-hand operation for easy crimping of large conductor diameters
-
Easy handling as a result of well balanced centre of gravity, angled head and ergonomically shaped handles
-
Crimping die is not exchangeable
-
Extremely user-friendly crimping pliers with lever transmission
-
For insulated cable lugs, plug connectors and butt connectors with a capacity of 0.5 – 6.0 mm²
-
Long lever arm for one-handed and two-handed operation
-
Toggle lever system for high efficiency
-
Integral lock (with release mechanism) only triggers on reaching the optimal crimping pressure
-
Consistently high crimping quality due to (adjustable) crimping pressure calibration
-
Production in accordance with the highest standards for optimal work results and a long service life
-
Firm grip in the hand thanks to ergonomic shape of the handle
-
Chrome high-grade vanadium electric steel; oil-hardened
-
Handles with non-slip plastic grips
-
Part No: 97 52 06
-
EAN: 4003773025474
-
Pliers: burnished
-
Head: burnished
-
Handles: with non-slip plastic grips
-
Weight: 565g
-
Dimensions: 250 x 70 x 25mm
-
REACH compliant: contains SVHC
-
RoHS compliant: not applicable
-
Application: insulated connectors
-
Capacity in square millimetres: 0.5 — 6mm²
-

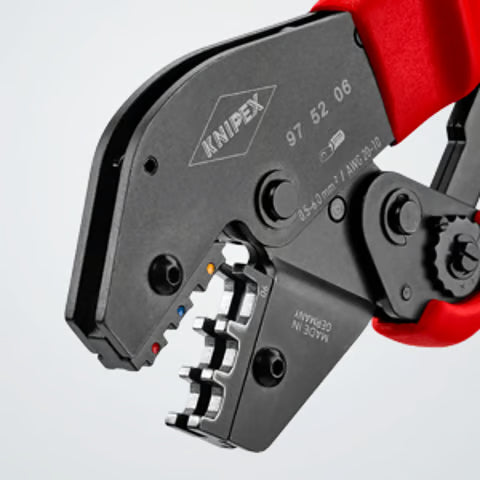

Number of crimp profiles: 3
- AWG: 20 — 10
