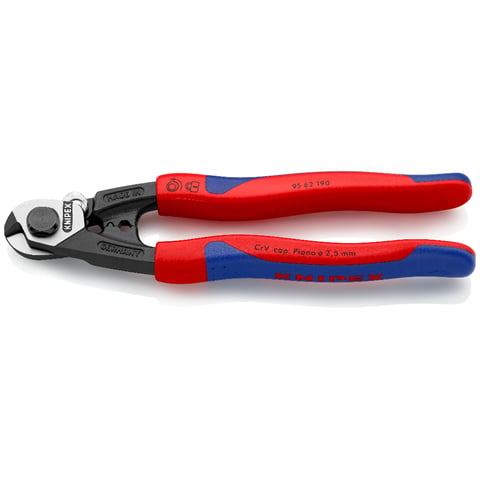

Knipex 95 62 190 Wire Rope Cutters
SKU: KNI9562190
95 62 190
DESCRIPTION
Features
Specifications
Shipping & Delivery
Knipex 95 62 190 Wire Rope Cutters
The wire rope cutters from Knipex are a tool, for example, for structural steelwork (railings, suspensions etc.), trade fair construction, agriculture, the motor trade, horticulture, apparatus engineering, servicing and repair work, with special additional functions for Bowden cable assembly.
Those who work professionally with tools every day expect a quality that permits simple and safe work. The tool must also last for many years of hard use. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment.
Every pair of Knipex pliers represents more than 130 years of specialist know-how.
-
Wire rope cutters with two crimping dies for end sleeves on Bowden sleeves and end caps for Bowden cables
-
Comfortable work due to manageable, slim design and inset opening spring
-
Screwed joint for accurate blade guidance, adjustable
-
Cutting edge hardness approx. 64 HRC
-
Cutting capacities: Cu cable, stranded up to Ø 7 mm; medium-hard wire up to Ø 4 mm, hard wire rope up to Ø 5 mm; piano wire up to Ø 2.5 mm
-
Chrome vanadium high-performance steel, forged, oil-hardened
-
Multi-component grips
-
Weight 314 g
- Length 190 mm
The high-performance tool for motor vehicle, bicycle and motorcycle repairs

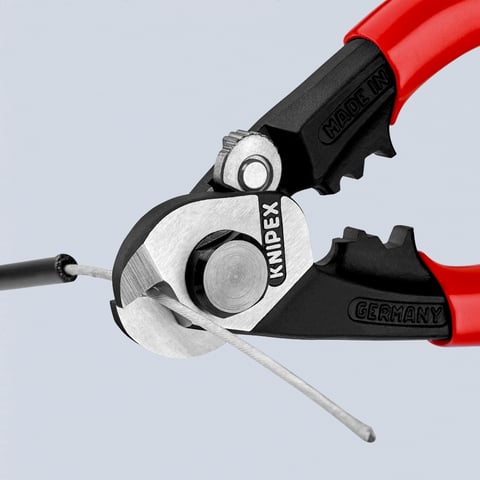

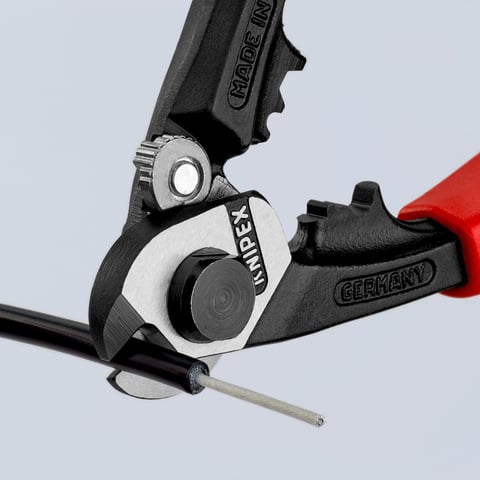

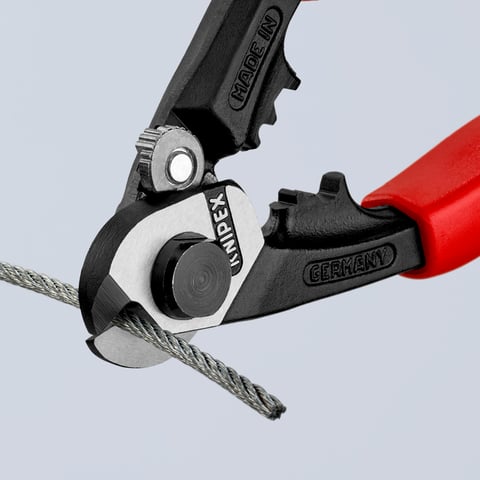

Typical application areas of the Knipex wire rope cutters include the following: the broken clutch cable of the classic car is replicated – no original parts are available. New handbrake cables on truck trailers are produced from cable sold by the metre. These wire rope cutters are the ideal tool in such cases. With cutting capacities of up to Ø 7 mm in the case of stranded Cu cable and up to Ø 5 mm with hard wire rope, they are suitable for all work in workshops and for installation work.

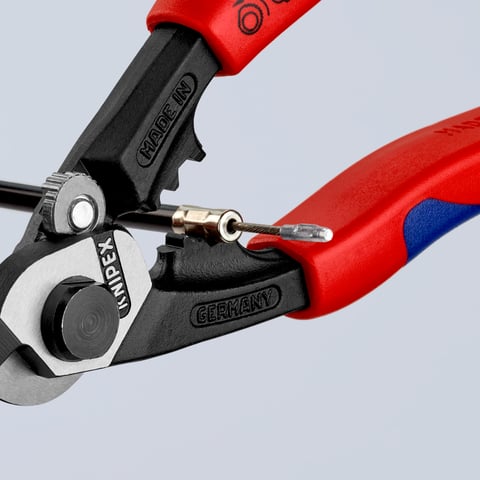

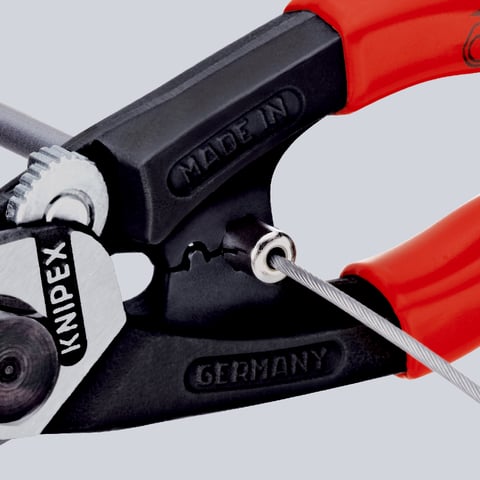

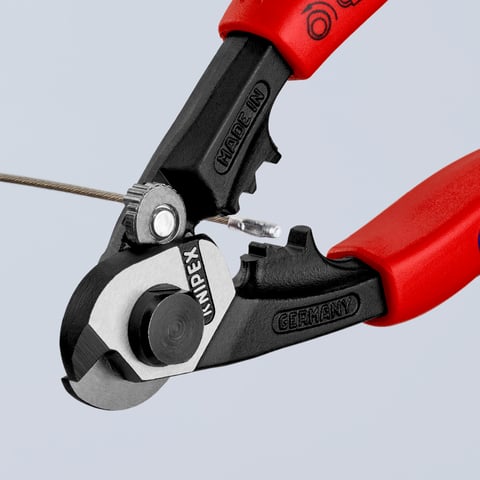

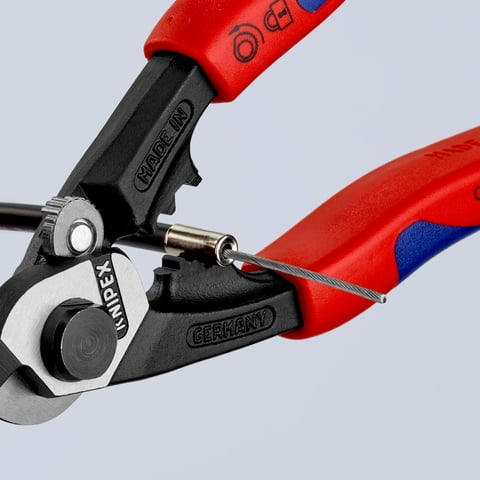

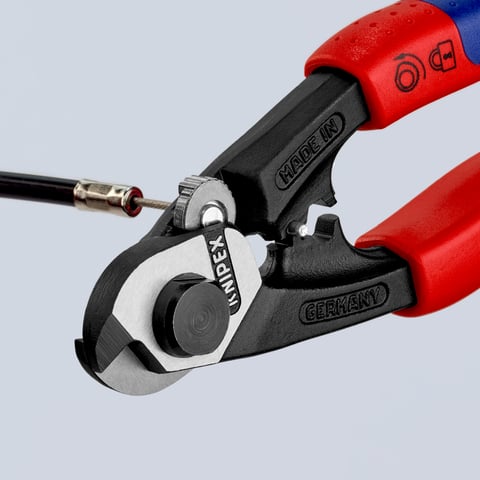

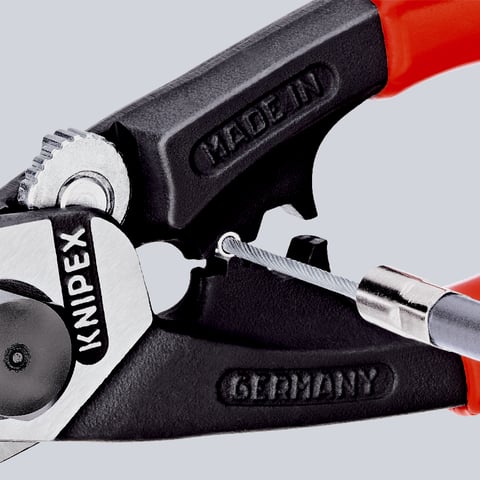

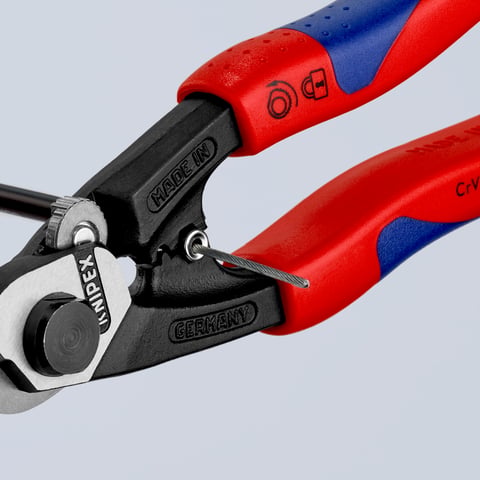

Press end caps on cables and end sleeves on Bowden sleeves
The Knipex wire rope cutters have two valuable added functions, thereby replacing two tools. The accurately shaped crimping dies for end sleeves and end caps enable Bowden cables and Bowden cable sleeves to be directly assembled after cutting. After shortening, an end sleeve is pressed on to the Bowden cable sleeve to prevent the risk of injuries; the Bowden cable is given the injury protection by pressing on the end cap.

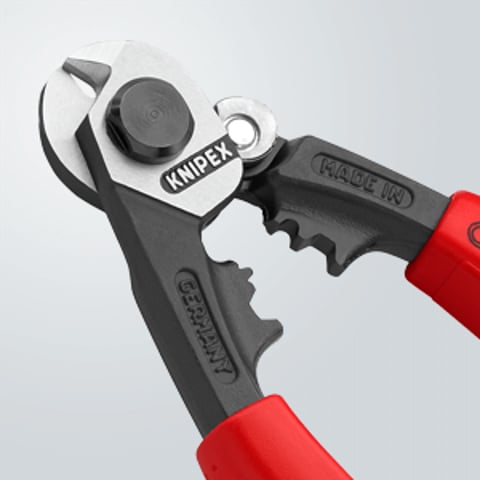

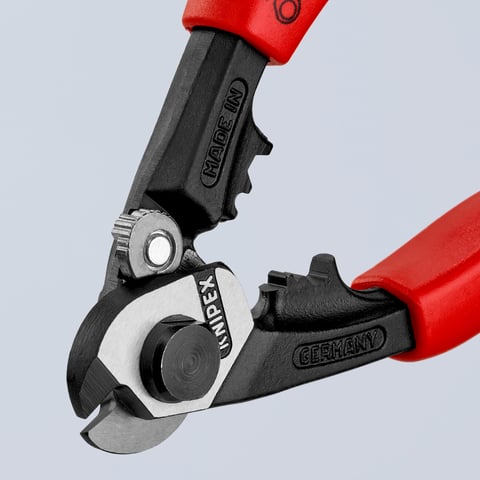

Comfort: adjustable screw joint, opening spring and pawl

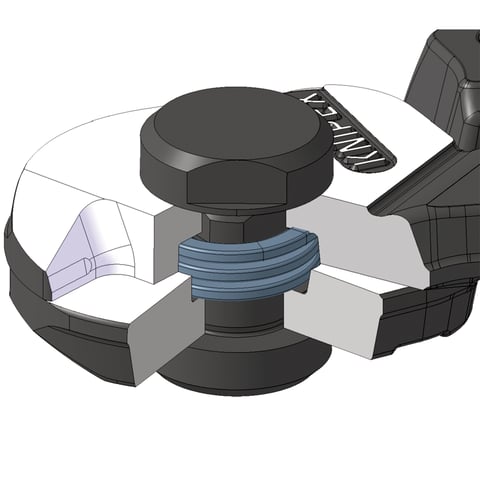

With the adjustable bolted joint, permanent zero backlash operation is possible. The space-saving inset opening spring provides added comfort, saving the user one hand movement during each cutting operation. As soon as manual force is withdrawn, it opens the pliers automatically. Those who cut wire rope frequently will quickly learn to value this feature. For transport, the wire rope cutters are secured using the pawl to prevent inadvertent opening.
Discover the Knipex 95 62 190 Wire Rope Cutters at Mektronics Australia – your trusted source for quality tools and equipment!
-
With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables
-
Comfortable work thanks to handy, slim design and internal opening spring
-
Bolted joint for precise blade guidance, re-adjustable
-
High leverage for reduced effort
-
Cutting edge hardness approx. 64 HRC
-
Article No.: 95 62 190
-
EAN: 4003773071976
-
Head: burnished
-
Handles: with multi-component handles
-
Weight: 314 g
-
Dimensions: 190 x 60 x 20 mm
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacities piano wire (diameter): Ø 2.5 mm
-
Cutting capacities wire rope (diameter): Ø 5.0 mm
-
Cutting capacities medium hard wire (diameter): Ø 4.0 mm
-
AWG: 8
