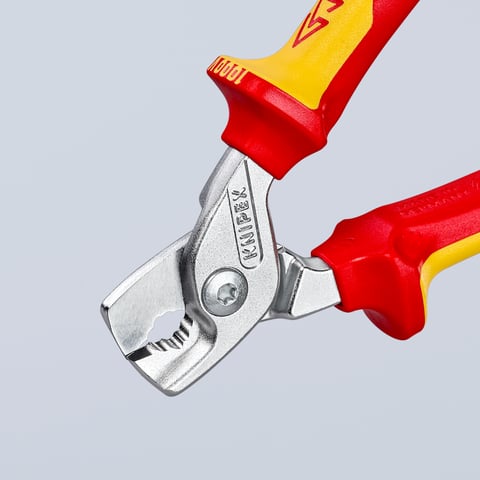

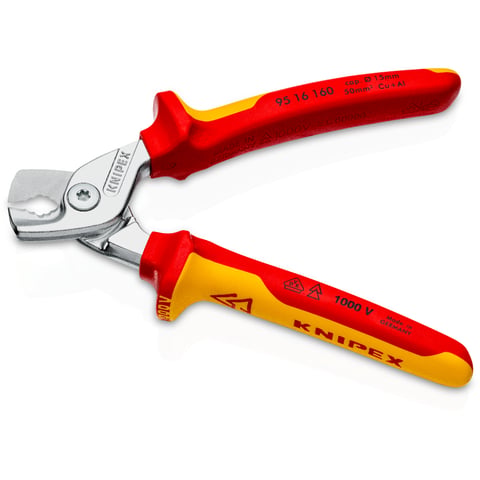

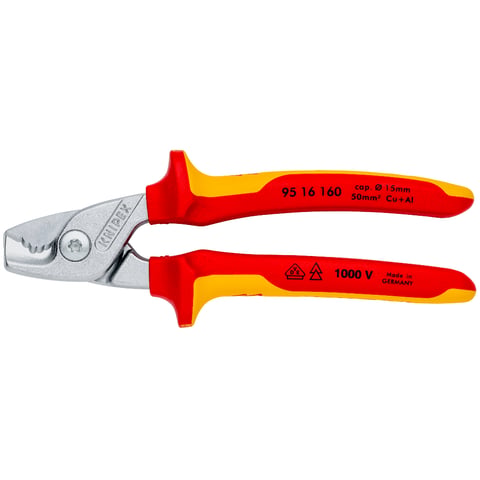

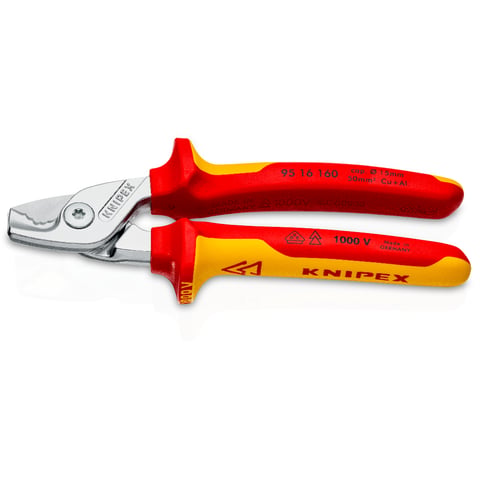

Knipex 95 16 160 StepCut® Cable Shears
SKU: KNI9516160
95 16 160
DESCRIPTION
Features
Specifications
Shipping & Delivery
Knipex 95 16 160 StepCut® Cable Shears

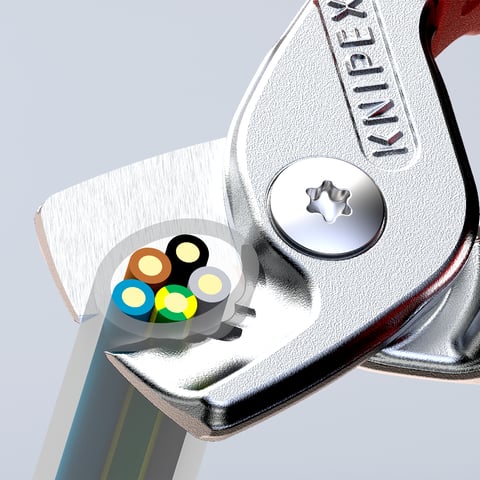

This is made possible by inductively hardened blades, with a milled serrated edge on the front and a flat edge on the back. Further plus points: The KNIPEX StepCut cuts surprisingly smoothly, mostly without crushing the cables; the pinch guard prevents injury; the bolted joint enables the cable cutter to work precisely and smoothly.
-
Small, light, strong: Comfortable cutting without crushing, despite measuring just 160 mm
-

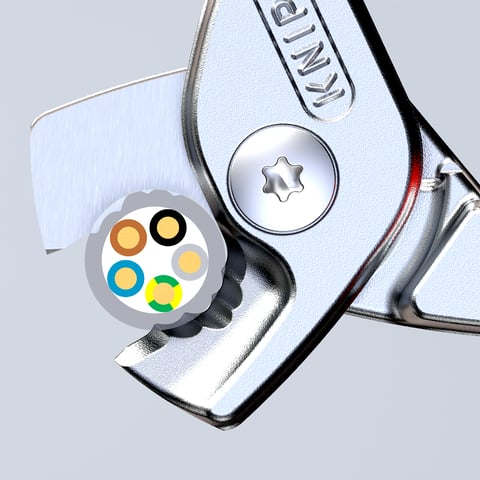

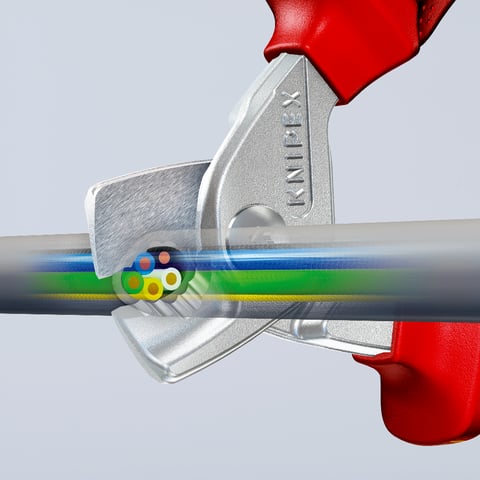

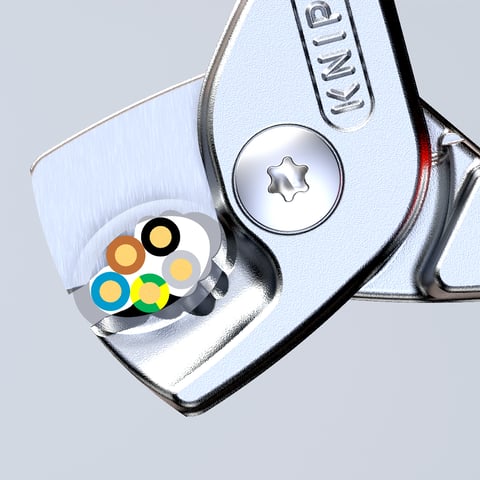

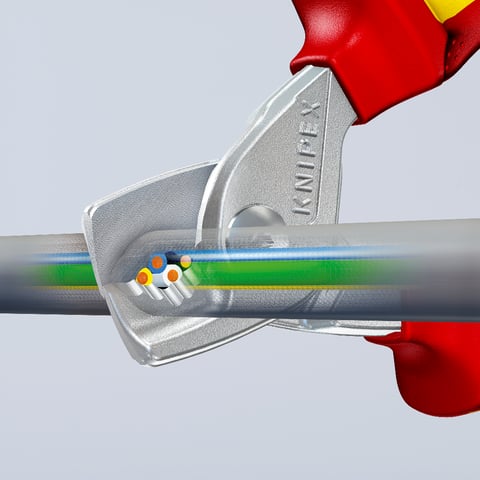

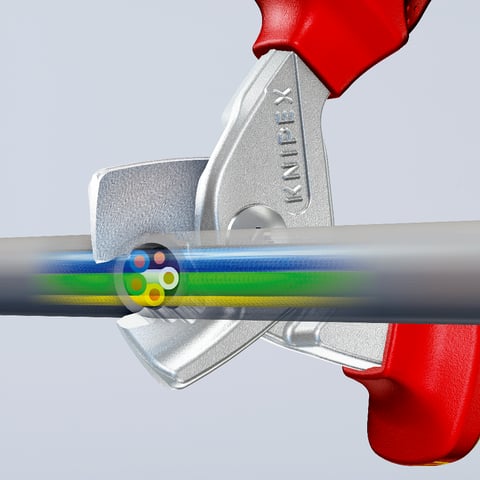

Noticeably less effort: The gradations cut wires one after the other
-
Ergonomic handle design: optimal cutting feel even for larger cable diameters
-

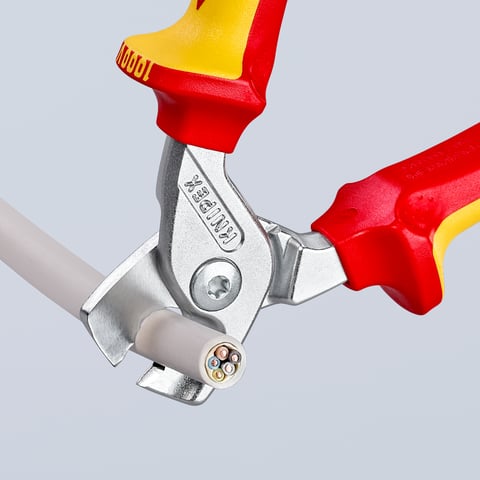

Cuts stranded Cu and AL multi-conductor cables up to Ø15 mm(50 mm²), solid core cables up to 5x4 mm²
-
Bolted joint: precise, effortless, durable
-
High-grade special tool steel, forged, oil-hardened, additionally induction-hardened cutting edges
-
Fast adjustment at the touch of a button on the workpiece
- Chrome vanadium heavy-duty steel, oil hardened
Makes cutting up to 40 percent easier
Good news for all electrical professionals: The KNIPEX StepCut 95 11 160 cuts multi-core cables substantially more easily than cable cutters of a comparable length. It cuts wires and strands one after the other, reducing the effort required by up to 40 percent. This gives the cable shears, which are only 16 centimetres long, a surprisingly high capacity: They easily and precisely cut single and multi-conductor copper and aluminium cables up to a diameter of 15 millimetres (50 mm²) and solid NYM cables up to a maximum of 5 x 4 mm².
Sits comfortably in your hand: Safety thanks to the VDE handle sleeves
The insulated handle sleeves for work on electrical installations - frequently referred to as VDE sleeves - insulate against an electric current up to 1,000 Volts when the cutting edges come in contact with live components. KNIPEX tools with VDE handles are once again subject to significantly stricter norms and safety standards with DIN EN / IEC 60900.
Discover the Knipex 95 16 160 StepCut® Cable Shears at Mektronics Australia – your trusted source for quality tools and equipment!
-
Small, light, strong: comfortable cutting without crushing and just 160 mm in size
-
Noticeably less effort: the gradations cut wires one after the other; cutting is up to 40% easier than with standard cable shears of the same length!
-
Ergonomic handle design: optimal cutting feel even for larger cable diameters
-
Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)
-
Cuts solid copper and aluminium cables up to 5 x 4 mm²
-
Cuts without crushing
-
Bolted joint: precise, effortless, durable
-
Pinch guard prevents operators' fingers being pinched
-
Not suitable for steel wire and hard drawn copper conductors
-
Cutting edges additionally induction-hardened, cutting edge hardness approx. 56 HRC
-
Article No.: 95 16 160
-
EAN: 4003773085966
-
Shears: chrome-plated
-
Head: chrome-plated
-
Handles: insulated with multi-component grips, VDE-tested
-
Weight: 225 g
-
Dimensions: 160 x 60 x 28 mm
-
Standard: DIN EN 60900 IEC 60900
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacity copper cable, multiple-stranded: 50 mm²
-
Cutting capacity copper cable, multiple-stranded: Ø 15 mm
-
AWG: 1 / 0
-
VDE tested: yes
