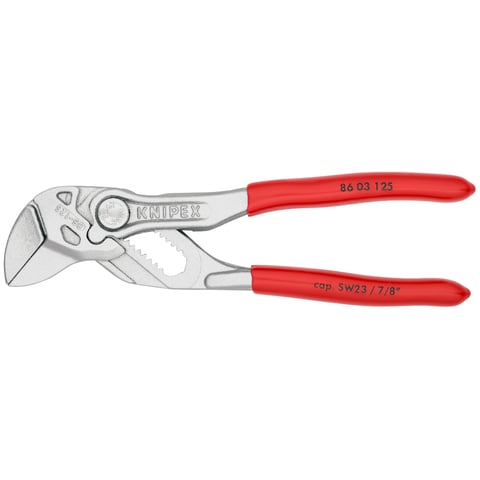

Knipex 86 03 125 SB Mini Pliers Wrench 125mm
SKU: KNI8603125SB
86 03 125 SB
DESCRIPTION
Features
Specifications
Shipping & Delivery

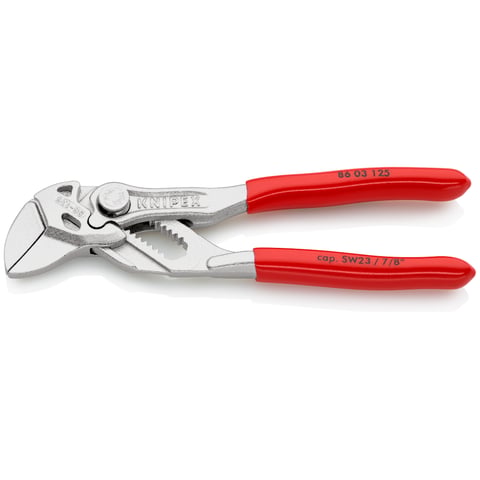

Knipex 86 03 125 SB Mini Pliers Wrench 125mm

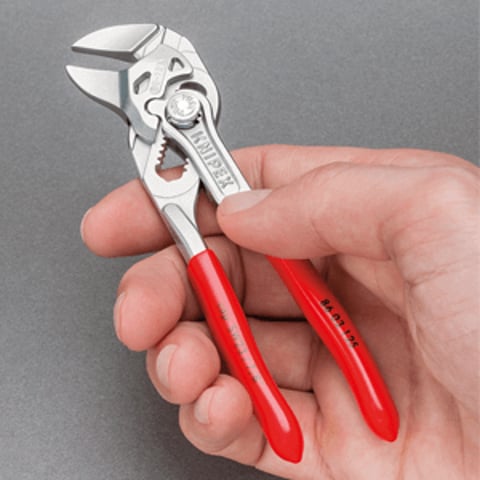

Knipex Mini Pliers Wrench, pliers and wrench in a single tool.
The Knipex 86 03 125 mini pliers wrench – for precision engineering applications

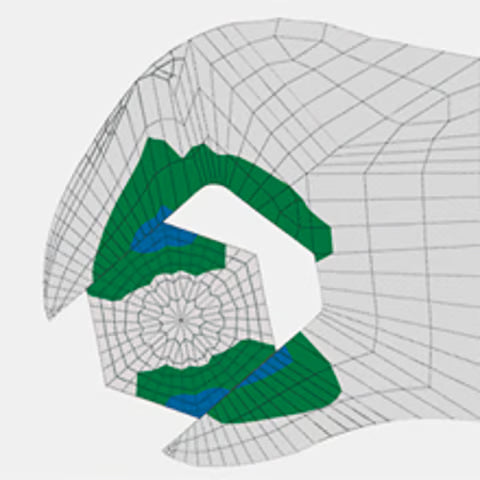

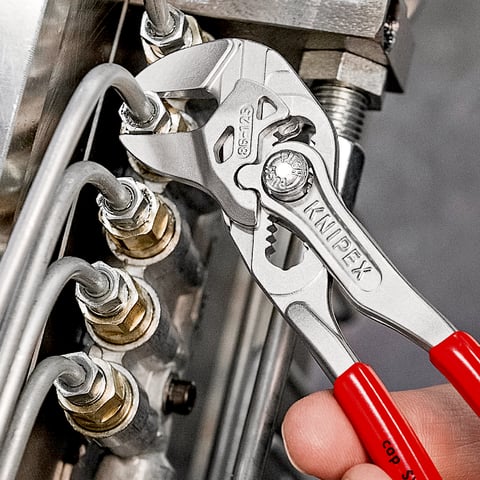

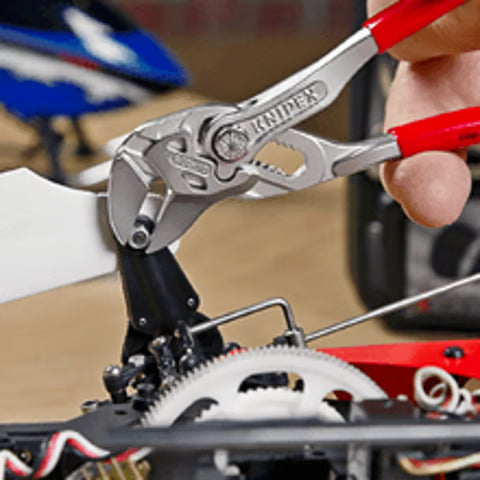

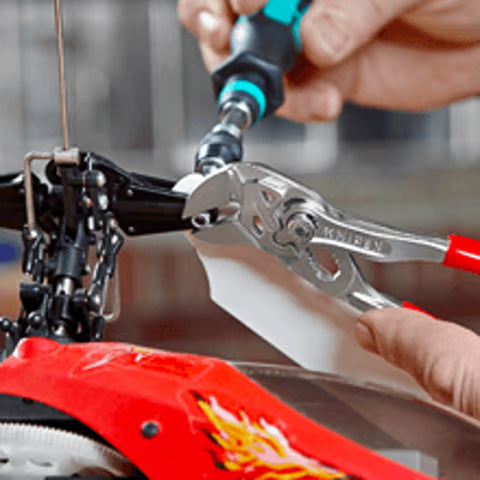

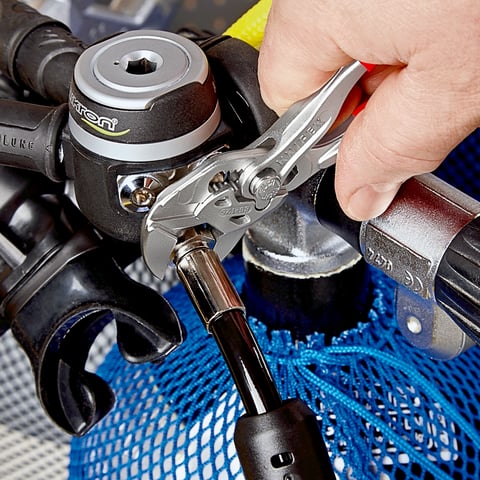

The mini pliers wrench is just 125 mm long, and is therefore suitable for working on precision screw joints, for example in model making. It is also ideal for small pipe and hose connections in industry. It grips all widths up to 23 mm or 7/8 inch, replaces a set of spanners – metric and imperial – and can be adjusted quickly and directly on the component at the push of a button. The hinge bolt then engages securely, preventing inadvertent adjustment. When under tension, the smooth gripping jaws are parallel to each other in every position, and hold the component accurately and with zero backlash, without damaging edges and sensitive surfaces such as chrome or brass.
10-fold reinforcement of manual force

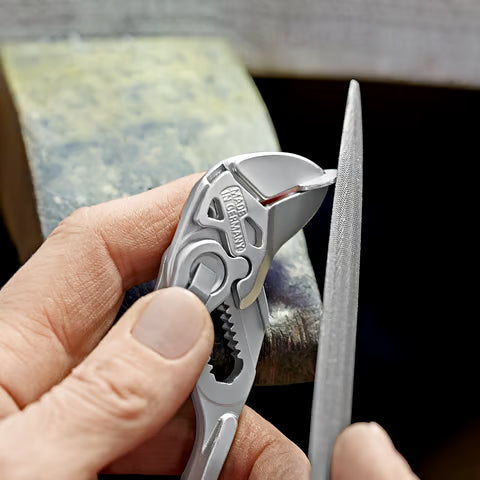

The excellent mechanics of the mini pliers wrench reinforce the manual force applied 10 times over. It also holds components as securely as a bench vice. Even flat objects can be gripped extremely well and processed simply thanks to the high pressing force and parallel jaws. The proven ergonomics of the handles with plastic coating guarantee an agreeably comfortable, non-slip grip – even with frequent use.
Work according to the ratchet principle: the ratchet function between the gripping jaws permits screwing in a similar way to a ratchet, enabling screw connections to be loosened or tightened quickly without the need to reapply the wrench after every screw movement.
Many additional application options
The mini pliers wrench grips, screws, bends and presses anything you cannot hold with your fingertips - including hot, sharp-edged, dirty, small or slippery objects. It holds objects powerfully and securely at all times, while also enabling sensitive and measured insertion, such as of connector halves or assembly components. It is a useful helper when working with contact adhesives (pressing to activate the adhesive force) or when breaking open cable ties.
Knipex quality: the 86 03 125 mini pliers wrench is manufactured in the Knipex factory in Wuppertal-Cronenberg using quality materials. As with the other models of pliers from the Knipex think tank, it stands for top quality and therefore - when used correctly - also for exceptional durability.
Discover the Knipex 86 03 125 SB Mini Pliers Wrench 125mm at Mektronics Australia – your trusted source for quality tools and equipment!
-
Replaces the need for sets of metric and imperial spanners
-
Smooth jaws for damage free installation of plated fittings - working directly on chrome!
-
Great for gripping, holding, pressing and bending workpieces
-

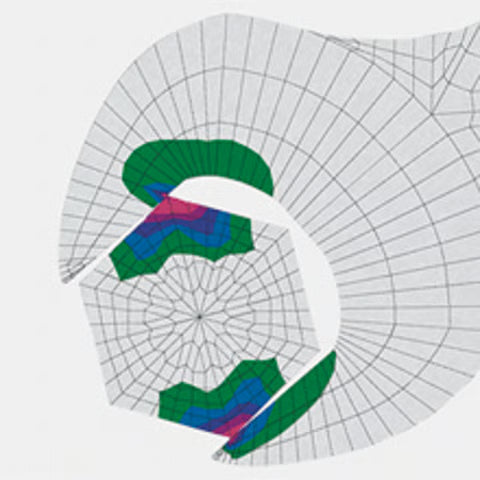

Zero backlash jaw pressure prevents damage to edges of sensitive components
-
Fast adjustment by pushing a button directly on the workpiece
-
No unintentional shift of the gripping jaws and no slipping of the joint
-

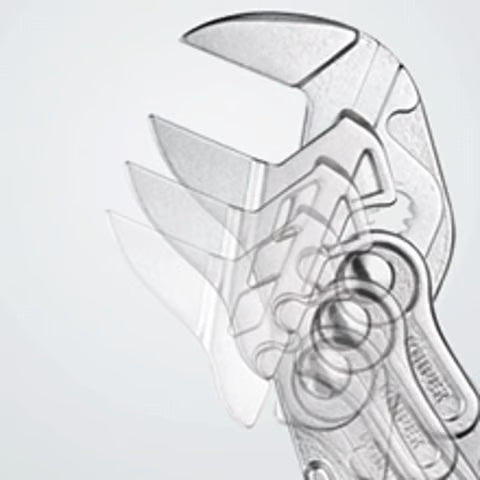

Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
-
The ratchet type principle allows quick and easy tightening and release of all bolted connections
-
High lever transmission for strong gripping power
-
Screws, grips, holds, bends and presses
-
For work on small screw joints
-
Replaces a whole set of spanners
-
Flexible gripping up to 23mm or 7/8"
-
Protects sensitive surfaces
-
Direct working on chrome, brass etc.
-
Fast adjustment on the component at the touch of a button
-
No inadvertent adjustment
-
Time-saving according to the ratchet principle.
-
10-fold reinforcement of manual force
-
Mobile mini bench vice
-
Reliable and durable
-
High performance chrome vanadium steel
-
Oil hardened
- Made in Germany
-
Part No.: 86 03 125 SB
-
EAN: 4003773077497
-
Pliers: chrome-plated
-
Head: chrome-plated
-
Handles: with plastic coating
-
Weight: 105g
-
Dimensions: 125 x 35 x 13mm
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-

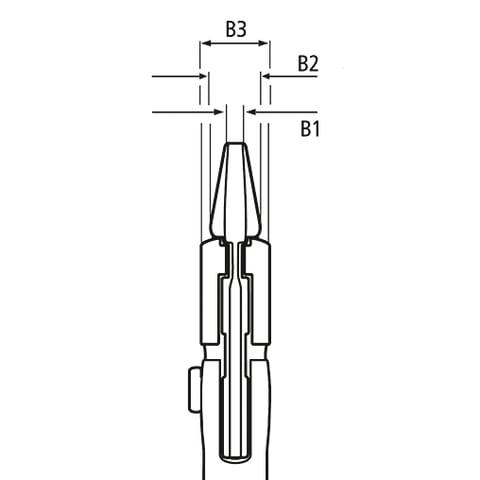

Jaw thickness (joint) (B2): 5.0mm
-
Joint thickness (B3): 9.5mm
-
Tips thickness (B1): 3.0mm
-
Adjustment positions: 11
-
Capacities for nuts: Ø 0 7/8"
-
Capacities for nuts: max. 23mm
