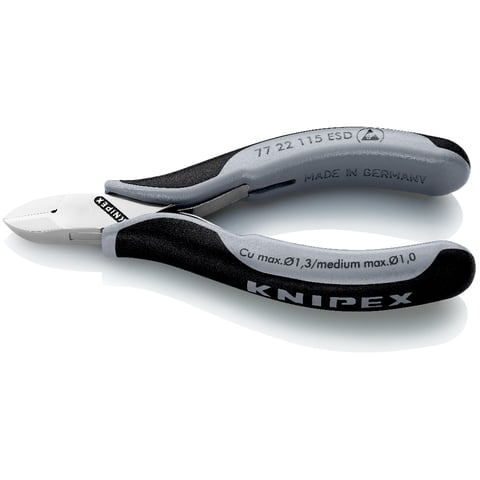

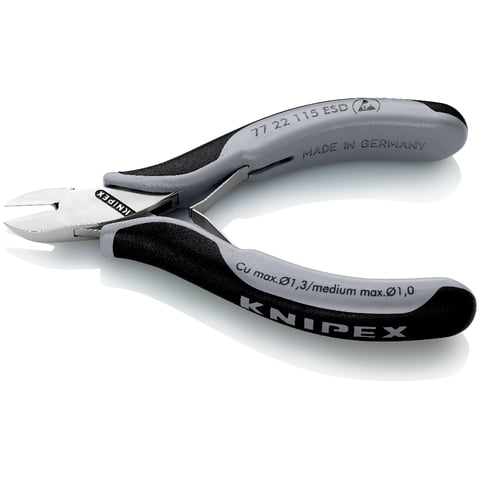

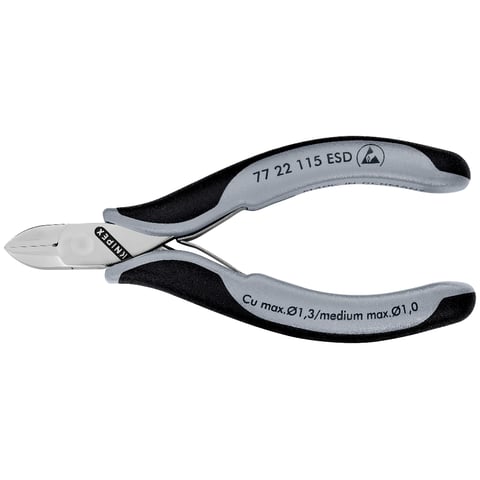

Knipex 77 22 115 ESD Electronics Diagonal Cutting Nippers ESD

Knipex 77 22 115 ESD Electronics Diagonal Cutting Nippers ESD

Knipex offers a comprehensive range of box joint electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by high precision and functionality – plus the proverbial Knipex durability.

Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Box joint Knipex electronics diagonal cutter are forged from special quality special tool steel and are carefully processed and gently heat-treated.

• Compact diagonal cutters with ESD protection for fine cutting

• Cutting values: medium-hard wire Ø1.0 mm, soft wire Ø0.3–1.3 mm

• Box joint

• Mirror polish plus fine oil film protect against rust

• Forged, oil-hardened with special quality special tool steel

• Cutting edges also induction-hardened, hardness approx. 57 HRC

• Handles with multi-component grips, dissipate electrostatic energy

• Length 115mm; Net weight 80 g

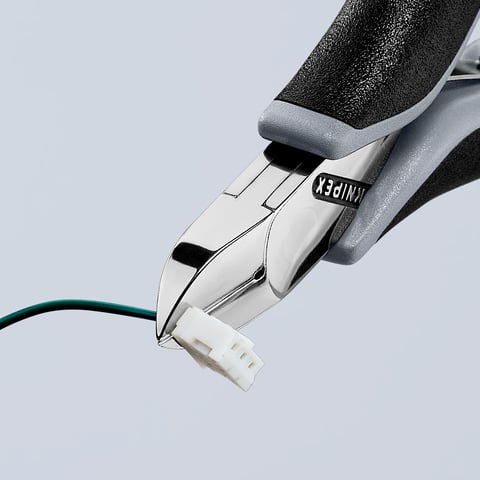

Excellent cutting capacity – also suited for flush cutting

Unlike diagonal cutters for use in domestic installations, this electronics diagonal cutter from Knipex is a real precision tool. With a length of 115 mm and weighing 80 g, it is extremely compact and lightweight, making it ideal for confined spaces, e.g. for PCBs or precision equipment. Cutting edge hardness approx. 57 HRC it cuts soft wires up to Ø1.3 mm. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force. Due to its design, the electronics diagonal cutter 77 22 115 ESD is unsuitable for hard wire; only for soft and medium-hard wires. As the cutting edges are not bevelled, flush cutting is possible.

Zero-backlash box joint. High cut quality and durability

The Knipex 77 22 115 ESD electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The tool is oil-hardened, while the cutting edges are induction-hardened to approx. 57 HRC.

ESD protection against electrostatic discharges; corrosion protection

Sudden discharges due to electrostatic charge differences can damage electronic components. Electronics diagonal cutter 77 22 115 ESD prevents this: electrostatic charges are discharged via the handles. Instead of chrome plating, the meticulously crafted diagonal cutter has a mirror polish.

Discover the Knipex 77 22 115 ESD Electronics Diagonal Cutting Nippers ESD at Mektronics Australia – your trusted source for quality tools and equipment!
