Knipex 13 86 200 SB Pliers for Electrical Installation
SKU: KNI1386200SB
13 86 200 SB
DESCRIPTION
Features
Specifications
Shipping & Delivery

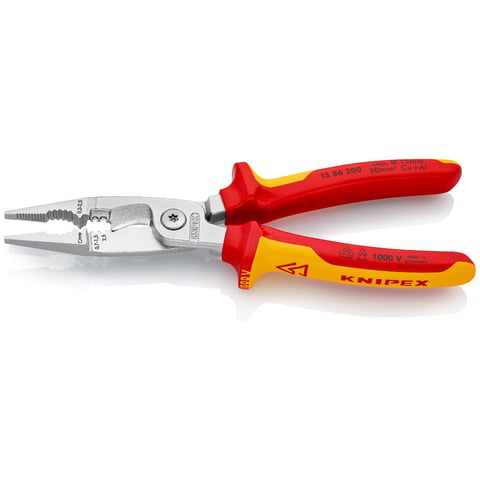

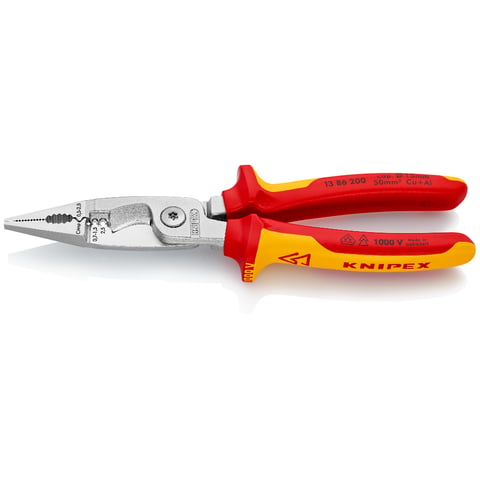

Knipex 13 86 200 SB Pliers for Electrical Installation
-
Compact multifunctional tool
-
Six functions combined in one tool
-
Cuts cable up to Ø 15 mm
-
Wire stripping capacities for single conductors: 0.75 – 1.5 mm² and 2.5 mm²
-
Crimp die for end sleeves (ferrules) 0.5 – 2.5 mm², low weight (280 g)
-
Handles with insulating multi-component grips, VDE tested
- Forged from high grade special tool steel, oil hardened in multiple stages and chrome-plated
For cutting cable, for wire stripping, deburring, bending, gripping and crimping
Due to their many functions, these universal pliers mean there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation.
Good ideas practically implemented
The electrical installation pliers save time, space and weight. At 200 mm long, they fit in any tool bag and with a weight of just 280 g they are light weight – especially compared to a number of individual tools.
Versatile tool for professional users

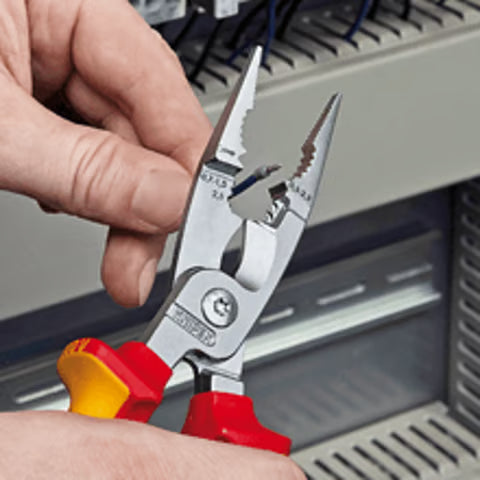

The tip of the gripping surfaces of the installation pliers are smooth, so that single conductors can be held and positioned without being damaged. Profiled gripping surfaces and a pipe grip are available for flat and round materials. The induction hardened precision tips produce clean cuts on Cu and Al cables up to Ø 15 mm. The installation pliers are comfortable and safe to use thanks to their insulating multi-component grips – with the right training also on live parts.
Knipex quality and engineering services – Made in Germany
Two aspects are vital to the quality of a tool: the performance and durability. At Knipex, pliers are developed from the point of view of the user, and focus on their direct application. Knipex electrical installation pliers replace several tools. Uses are equally diverse – and last for several years of tough work. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them carefully with multiple stage heat treatment. Every pair of Knipex pliers represents more than 130 years of specialist know-how.
Discover the Knipex 13 86 200 SB Pliers for Electrical Installation at Mektronics Australia – your trusted source for quality tools and equipment!
-
6 functions in one pair of pliers
-

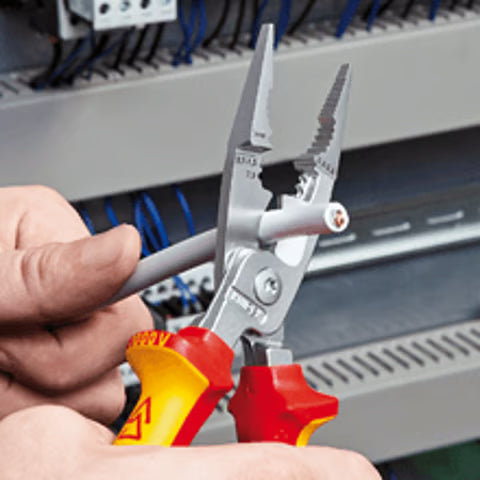

To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
-
Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
-

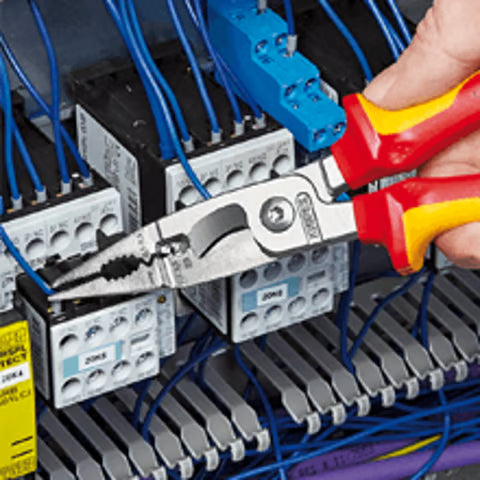

Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
-

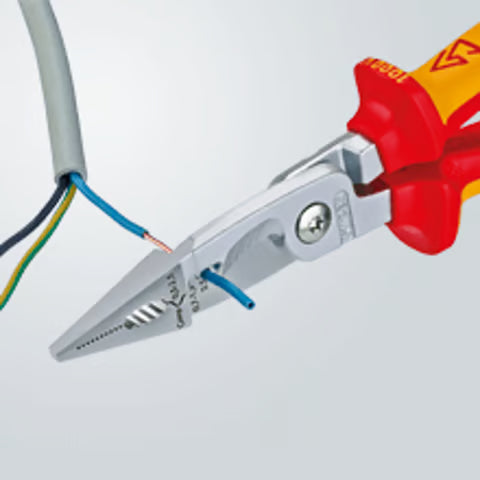

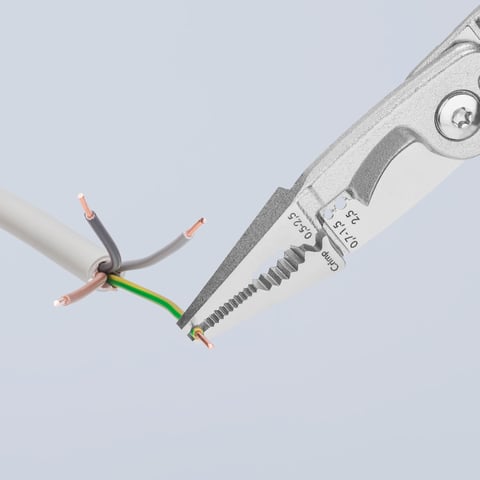

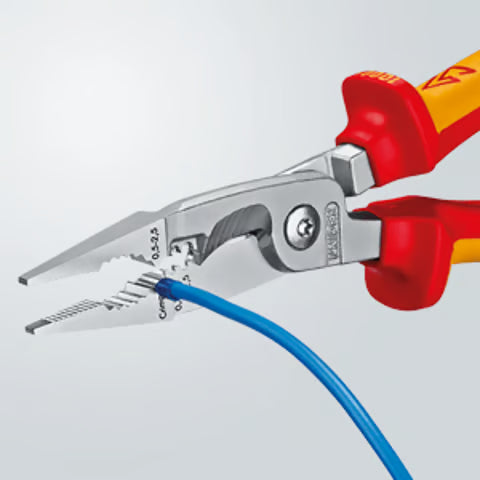

Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
-

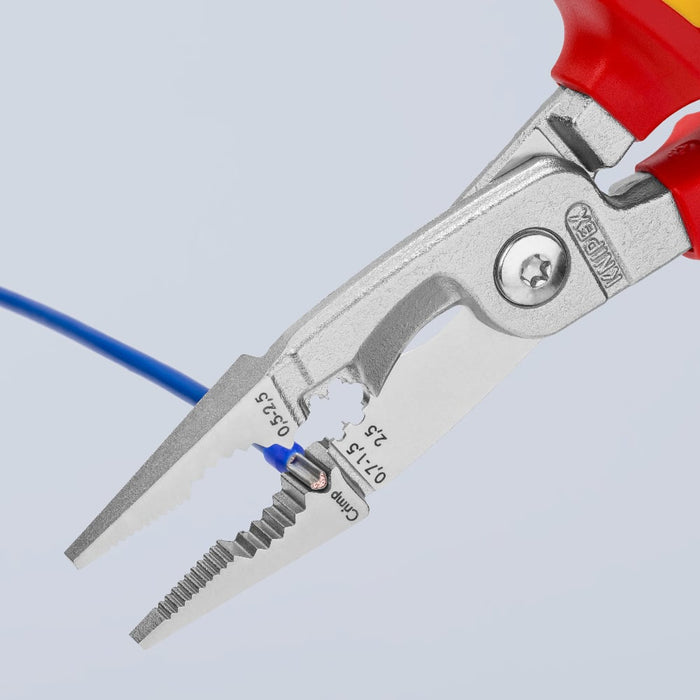

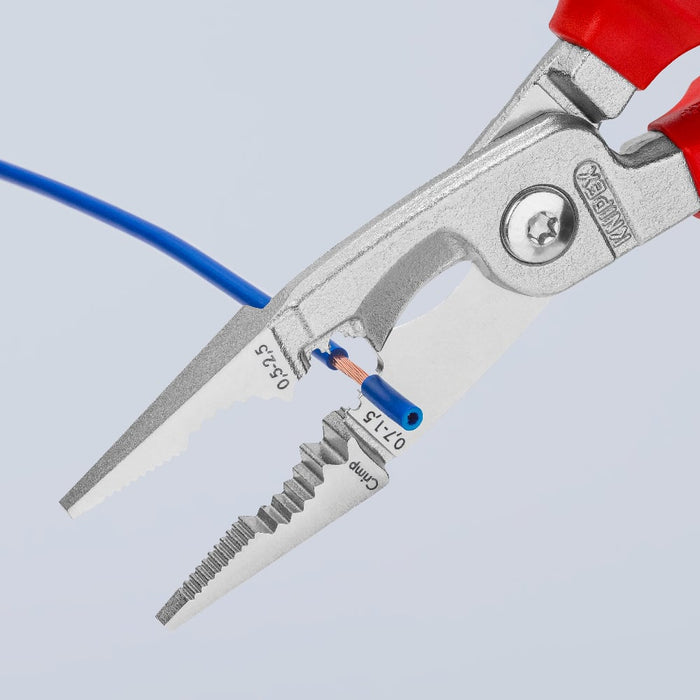

Crimping die for wire ferrules 0.5 - 2.5 mm²
-

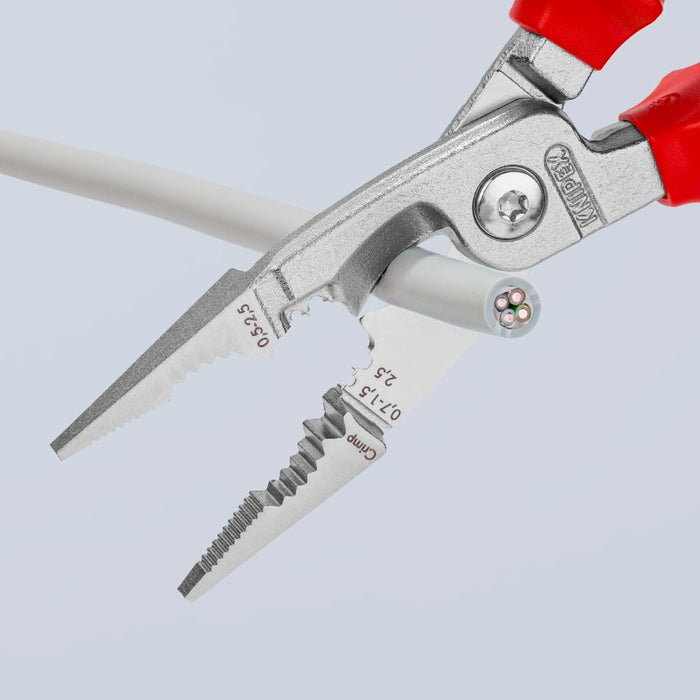

Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
-

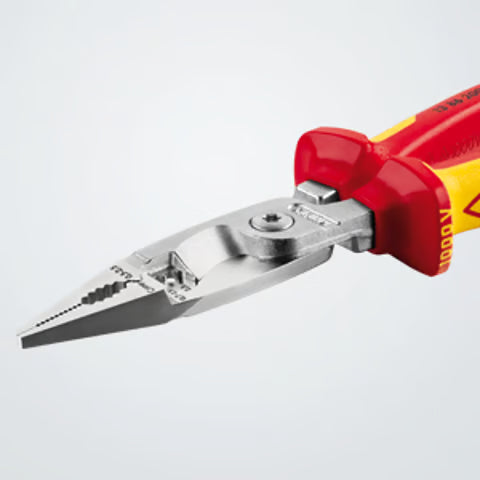

Slim dimensions for easy access
-
Bolted joint: precise, zero backlash operation of pliers
-
Part No.: 13 86 200 SB
-
EAN: 4003773075097
-
Pliers: chrome-plated
-
Head: chrome-plated
-
Handles: insulated with multi-component grips, VDE-tested
-
Weight: 272 g
-
Dimensions: 200 x 85 x 20 mm
-
Standard: DIN EN 60900 IEC 60900
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacity copper cable, multiple-stranded: Ø 15 mm
-
Cutting capacity copper cable, multiple-stranded: 50 mm²
-
Stripping capacity for single strands: 0.75 — 1.5 mm² / 2.5 mm²
-
Capacity in square millimetres: 0.5 — 2.5 mm²
-
AWG: 1 / 0
-
VDE tested: yes
