Knipex 08 22 145 SB Pointed Combination Pliers
SKU: KNI0822145SB
08 22 145 SB
DESCRIPTION
Features
Specifications
Shipping & Delivery
Knipex 08 22 145 SB Pointed Combination Pliers
Several functions and qualities are combined in the combination needle nose pliers from Knipex, and this wide range of uses means they are in great demand for everyday use as well as for the workshop. The great benefits of the tools, their safe, comfortable use and a long tool life are the results of over 130 years of experience in manufacturing pliers, constant product development and the commitment to high quality standards that Knipex is famous for.
Good for everyday use, good when out and about
Pulling a nail out of the wall or holding a nail to drive it in, cutting wire, pulling out the locking pin on a door handle, tightening the Bowden cable on a bike – there are several occasions when the needle nose combination pliers from Knipex prove to be a useful everyday helper. They are ideal for working in inaccessible places due to the slim head design. Small components such as pins, bolts and nails are held securely and safely in the milled groove in the handle area. Knipex has developed the 08 22 145 to be reliable, versatile needle nose combination pliers for use when out and about, but which of course perform just as well in the workshop.
Good for the workshop, because very secure and stable when gripping

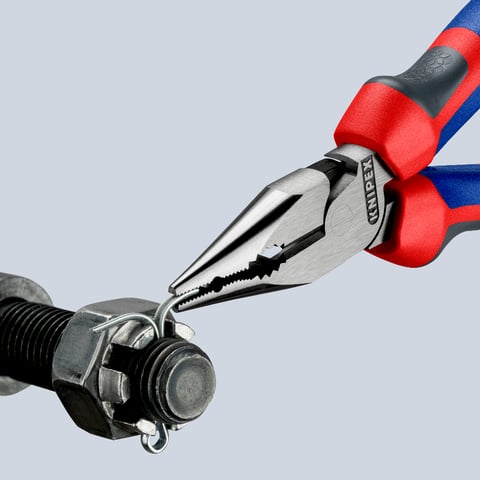

These pliers are also a useful asset in the professional workshop area. The castle nut is secured, the washer put in position; flat parts up to around 6 mm thick are held securely while working by the gripping surface that is convex on one side. The pointed jaws are also protected against rotation when holding and bending heavier components.
Forged from high-grade special tool steel

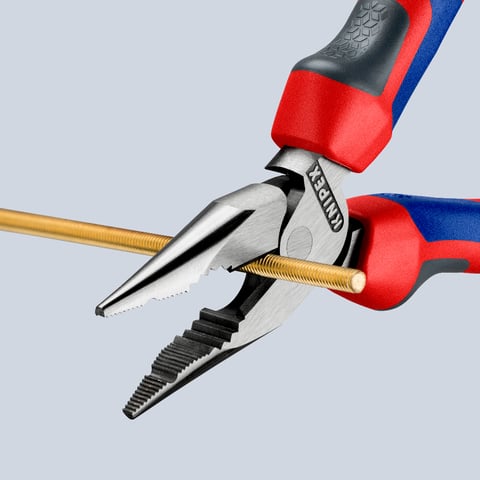

The needle nose combination pliers from Knipex can cut stranded Cu cable up to 16.0 mm², medium-hard wire (nails) up to Ø 3.0 mm and even hard wire (wire rope) up to Ø 2.0 mm. The high transmission, high leverage joint effectively helps the user generate the necessary force, and the pliers are extraordinarily stable. They are forged from special tool steel and are oil-hardened in multiple stages after forging. The sum total of all qualities produces reliable pliers with many possible applications – for many years thanks to the long tool life.
With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEX tend interfaces for extensions
High transmission, high cutting force
Cuts stranded Cu-cable up to 16.0 mm², nails up to Ø 3.0 mm and wire rope up to Ø 2.0 mm.

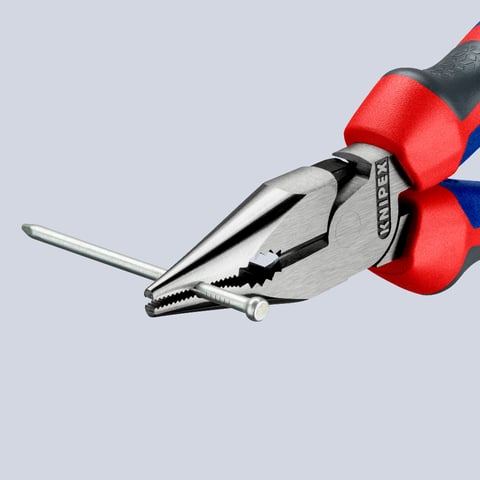

Milled groove in the grip area
Milled groove for the secure, safe holding and pulling of small components and wire

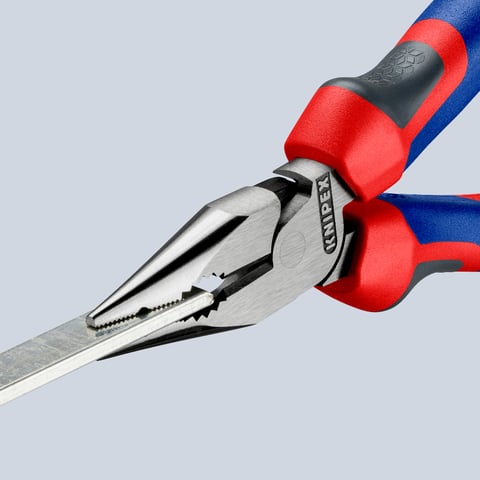

Three-point contact for flat parts
The convex profile of the serration on the transition to the pipe grip provides a stable three-point contact for flat parts.
Anti-twist gripping
The pointed, powerful gripping jaws produce a very firm, non-rotating hold on the component.
Discover the Knipex 08 22 145 SB Pointed Combination Pliers at Mektronics Australia – your trusted source for quality tools and equipment!
-
For all common installation and repair work
-
Handy use when working in confined areas thanks to slim head design and pointed jaws (anti-twist)
-
Gripping surfaces with special convex contour on one side for secure gripping of flat parts
-
Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled
-
The reliable and diverse combination pliers when out and about
-
Easy cutting thanks to the high leverage joint
-
With cutting edges for soft, medium-hard and hard wire
-
Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
-
Long service life and stable tips
-
With comfort handles made of three ergonomic components for optimised handling and with two KNIPEX tend interfaces for extensions
-
Part No: 08 22 145
-
EAN: 4003773078968
-
Pliers: black atramentized
-
Head: polished
-
Handles: with comfort handles
-
Weight: 145g
-
Dimensions: 145 x 54 x 17mm
-
Standard: DIN ISO 5746
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacities medium hard wire (diameter): Ø 3.0mm
-
Cutting capacities hard wire (diameter): Ø 2.0mm
-
Cutting capacity copper cable, multiple-stranded: Ø 8.0mm
-
Cutting capacity copper cable, multiple-stranded:16.0mm²
