Image for Illustrative Purposes Only
Knipex 03 02 180 Combination Pliers
SKU: KNI0302180
03 02 180
DESCRIPTION
Features
Specifications
Shipping & Delivery

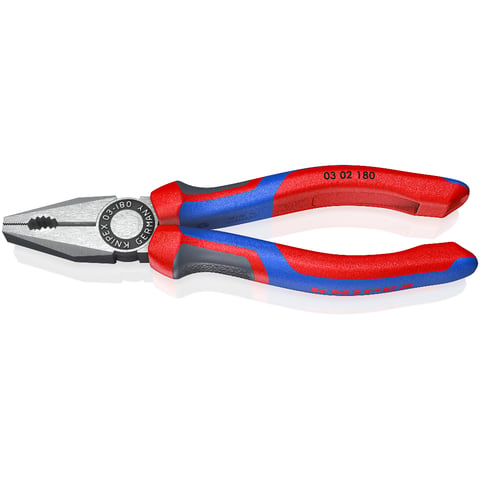

Knipex 03 02 180 Combination Pliers
Combination pliers from Knipex offer a high degree of functionality when gripping, holding and cutting. Professional users rightly expect high precision and quality for comfortable and safe working from Knipex based on its decades of experience in toolmaking. The accuracy and long service life of these pliers are impressive. The reason for this lies in the materials and the care taken in their manufacture. The machining meets Knipex's high quality standards. We manufacture our pliers in Wuppertal from high-quality materials, machine them with a high degree of precision on modern machine tools and harden them by means of multiple careful heat treatments. All pliers from Knipex embody over 130 years of specialist expertise.
-
Solid, excellently machined combination pliers
-
Serrated jaws for flat parts, serrated burner port for round parts
-
Long cutting edges for thick cables
-
Cutting value for soft wire, e.g. multi-strand copper cable: up to Ø 12 mm (16 mm²)
-
Cutting value for medium-hard wire Ø 3.4 mm
-
Cutting value for hard wire Ø 2.2 mm
-
Pliers black atramentised, head finely ground, handles with multi-component grips
- Net weight 254 g, length 180 mm
With gripping functions for flat and round parts and strong cutting edges

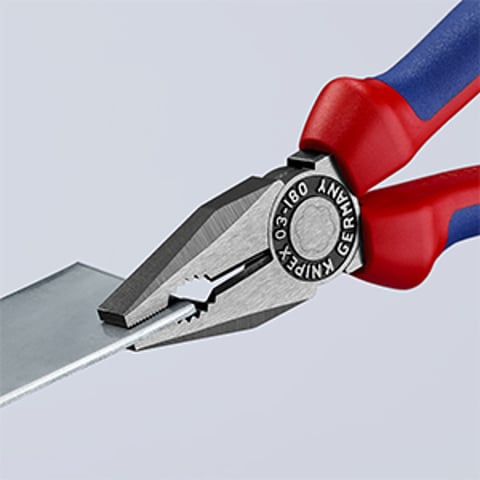

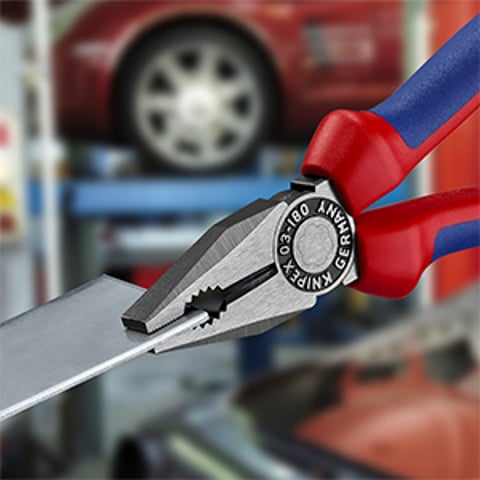

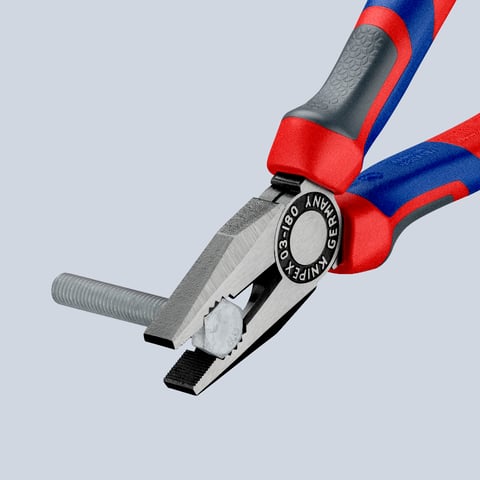

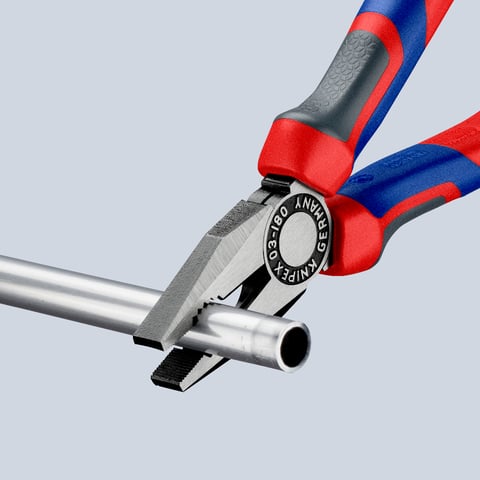

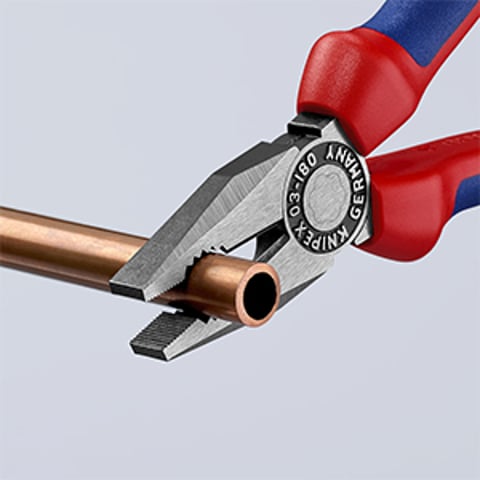

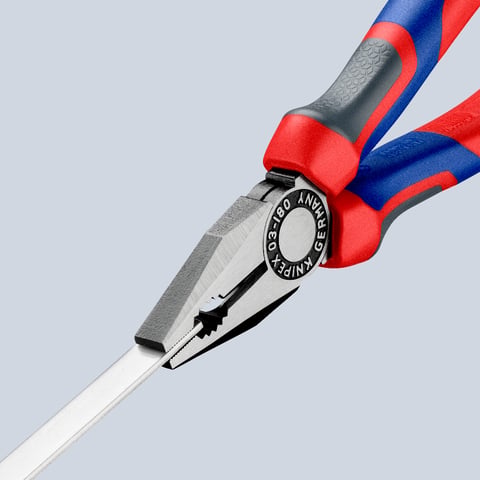

Flat workpieces are held firmly by the serrated gripping jaws, preventing twisting. There is a serrated, oval burner port for round and half-round objects. Several tool functions are possible through these two holding options: e.g. counter-holding small hexagonal nuts, pulling and holding sheet metal and angled steel, holding and turning pipes and conduits, bending locking pins and tensioning Bowden cables. The Knipex 03 02 180 combination pliers also prove to be a useful universal tool for cutting. They cut multi-strand copper cables up to Ø 12.0 mm, medium-hard wire up to Ø 3.4 mm and even hard wire (wire rope strand) up to Ø 2.2 mm. Thick copper cables (up to 16 mm²) can also be inserted between the long cutting edges and cut powerfully. The hardness of the cutting edges (approx. 60 HRC) and their sharpness ensure that the effort expended by the user is low.
Forged from special tool steel and oil hardened
The Knipex 03 02 180 combination pliers retain their high tool usefulness for a long time. Forged from special tool steel, they receive additional, multi-stage oil hardening, followed by black atramentising against corrosion. The combination pliers with their long tool life and many possible uses in trade and industry, typical for Knipex, are appealing factors when choosing which tools to use.
Discover the Knipex 03 02 180 Combination Pliers at Mektronics Australia – your trusted source for quality tools and equipment!
-
With gripping zones for flat and round material, suitable for versatile use
-

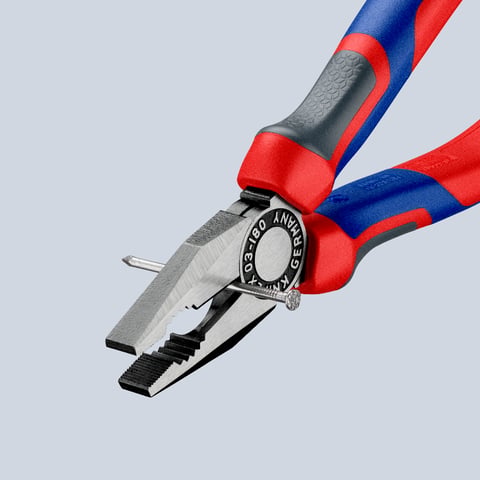

With cutting edges for soft and hard wire
-
Long cutting edges for thicker cables
-
Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
-

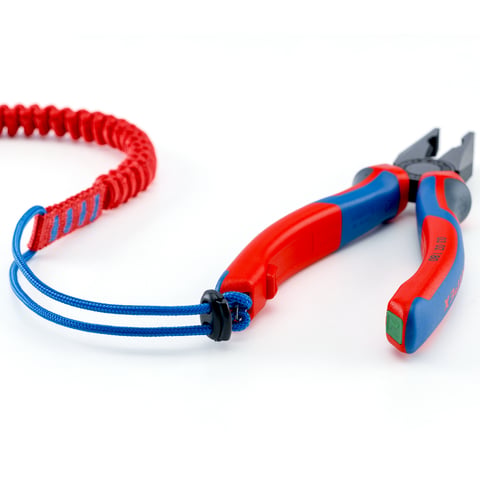

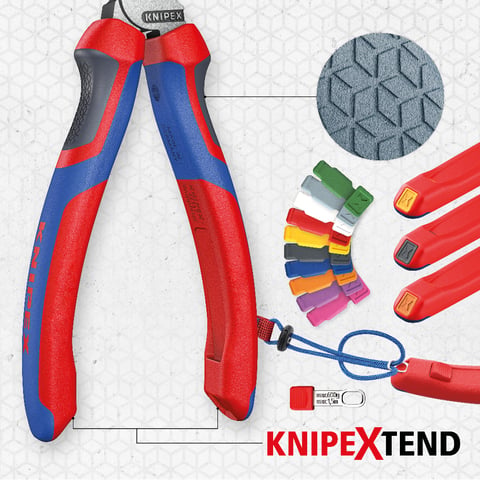

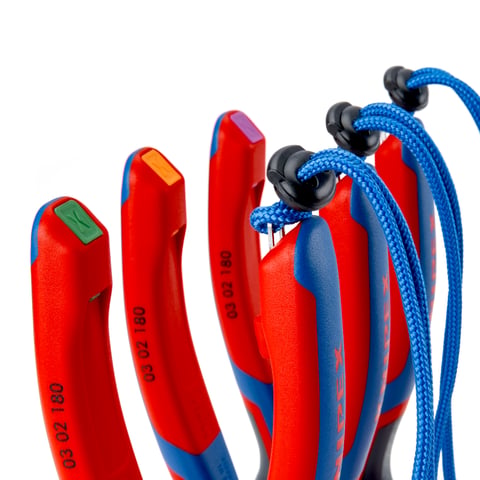

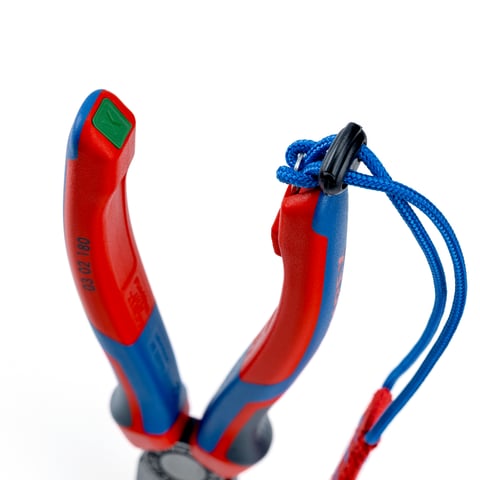

With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
-
Article No.: 03 02 180
-
EAN: 4003773023197
-
Pliers: black atramentized
-
Head: polished
-
Handles: with comfort handles
-
Weight: 254 g
-
Dimensions: 180 x 52 x 21 mm
-
Standard: DIN ISO 5746
-
REACH compliant: does not contain SVHC
-
RoHS compliant: not applicable
-
Cutting capacities medium hard wire (diameter): Ø 3.4 mm
-
Cutting capacities hard wire (diameter): Ø 2.2 mm
-
Cutting capacity copper cable, multiple-stranded: Ø 12.0 mm
-
Cutting capacity copper cable, multiple-stranded: 16.0 mm²
