JBC XL Preheater Set 230V for PCBs up to 51 x 61 cm / 20 x 24"
SKU: JBC-PHXLE-2KA
PHXLE-2KA
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC XL Preheater Set 230V for PCBs up to 51 x 61 cm / 20 x 24"
Indispensable for avoiding thermal shock on multilayer PCBs while reworking.

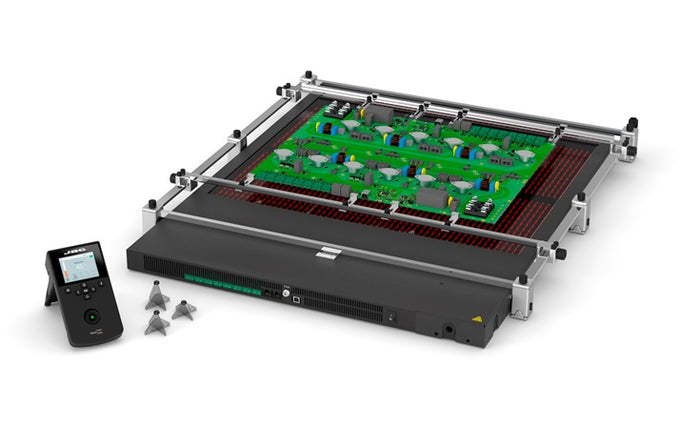

This is a complete system of Preheater and PCB support for preheating big-sized PCBAs such as communications boards, airplanes, etc. and ideal for repetitive soldering jobs. It features a heating area of 510 x 610 mm / 20.07 x 24 in. with 6 independent work zones (255 x 203 mm / 10.04 x 8 in) to be switched on/off.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 25 profiles of temperature.
Up to eight thermocouples can be connected to which enables the operator to work in any of the three work modes.

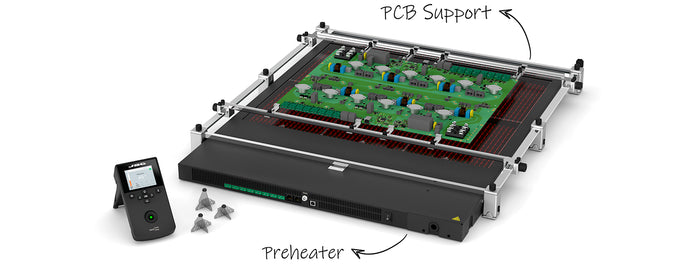

PHXLS Support is perfectly adaptable to any type of PCBs by means of its many adjustable components and its 3 adjustable clearance positions 28, 38 or 48 mm / 1.1, 1.5 or 1.9 in.
NOTE: BULKY PRODUCTS MAY INCUR ADDITIONAL FREIGHT CHARGES
Discover the JBC XL Preheater Set 230V for PCBs up to 51 x 61 cm / 20 x 24" at Mektronics Australia – your trusted source for quality tools and equipment!
-
Heater unit
-
Console
-
PHXLS Support for PCBs up to 51 x 61 cm / 20 x 24 in
-
PH204 Metallic PCB Support L1 for PHXLS
-
PH205 Metallic PCB Support L2 for PHXLS
-
PH206 Metallic PCB Support L3 for PHXLS
-
PH218 Thermocouple Type K
-
PH217 Kapton Tape
-
Peak power: 5400 W
-
Selectable temperature: 50 to 250 ºC / 120 to 482 ºF
-
Heating area: 255 x 203 mm / 10.04 x 8 in - 1 zone / 510 x 610 mm / 20 x 24 in - 6 zones
-
Type K TC connector: 8 for Control & Protection
-
Profiles: 22 (up to 16 steps for each)
-
Set temperature profiles: 3 profiles (2,3 or 4 steps)
-
Maximum work time: 50 min or indefinite
-
ESD safe: Meet ANSI/ESD S20.20-2021
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
Robot connector: Remote control
-
Aux. connector: Console connection
-
Pedal connector: Connect a pedal (ref. P-005) to control the heater
Weights & Dimensions
-
Preheater Unit: 790 x 664 x 42mm / 23.00kg
-
Package: 1200 x 800 x 374mm / 71.00kg
