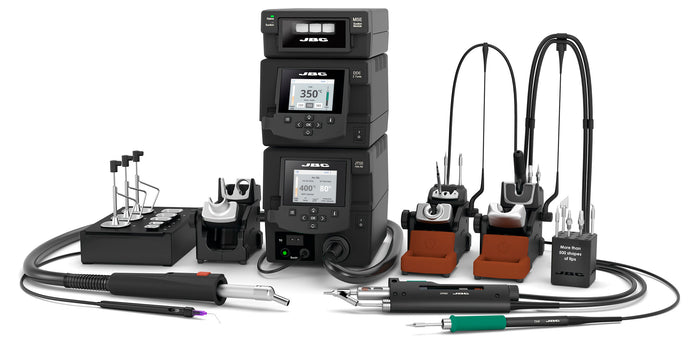

JBC RMSE-2QJ Rework System 230V
Image for Illustrative Purposes Only
JBC Logo

JBC RMSE-2QJ Rework System 230V

SKU: JBC-RMSE-2QJ

RMSE-2QJ

$10,418.35

EX. GST
$11,460.19
INC GST
Out of stock: Available to order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Contents
Specifications
Shipping & Delivery

JBC RMSE-2QJ Rework System 230V

RMSE Station, equipped with MSE Module, ensures efficient and precise solder removal with its powerful suction system. It provides the fastest and safest solution for soldering and rework, including hot air applications. The station features stackable modules and it includes all the necessary accessories to simplify your work.

It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation Modes help to extend tip life and reduce energy consumption.

Includes:

  • DDE 2-Tool Control Unit managing up to two tools simultaneously and fully compatible with 13 different JBC Tools, delivering up to 150 W per tool.

  • RMSE working simultaneously with DR560 Desoldering Iron, T245 General Purpose Handle and JTT Heater Hose Set.

  • MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.

  • JTSE Hot Air Station controlling the rework task using temperature and airflow profiles.

Discover the JBC RMSE-2QJ Rework System 230V at Mektronics Australia – your trusted source for quality tools and equipment!

  • DDE 2-Tool Control Unit

  • JTSE Power Hot Air Control Unit

  • MSE Electric Desoldering Module for DDE & DME

  • T245 General Purpose Handle (cartridge not included)

  • DR560 Desoldering Iron (C560003 already inserted)

  • JTT Heater Hose Set

  • ADS Stand for T210 & T245

  • DRS Stand for DR560

  • JTS Stand for JTT

  • SCH for Cartridge & Tips Holder

  • ESHT Magazine with Protectors & Extractors

  • T260 Pick & Place Handle

  • PH218 Thermocouple Type K
DDE Control Unit

  • Nominal power: 200 W

  • Peak power: 150 W per tool

  • Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

  • Idle temp. stability (still air): ±1.5 ºC / ±3 ºF / Meets and exceeds / IPC J-STD-001F

  • Temperature accuracy: ±3 % (using reference cartridge)

  • Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu

  • Tip to ground vol./ resist.: Meets and exceeds / ANSI/ESD S20.20 and IPC J-STD-001F

  • Ambient Operating Temp: 10 - 40 ºC / 50 - 104 ºF
Connections

  • USB-A: Firmware Update, Graphics and Profiles, Dino-Lite USB Microscope (models AM2011, AM2111)

  • USB-B: PC Communication

  • RJ12:

    Fume Extractor/Peripherals/Robot
JTSE Control Unit

  • Nominal power: 700 W

  • Selectable temperature: 150 to 450 °C / 300 to 840 °F

  • Air flow regulation: 5 to 50 SLPM

  • Vacuum: 30% / 228 mmHg / 9 inHg

  • Profiles: 25 (up to 10 steps for each), 1 preset profile

  • Type K TC connector: 1 for Control & Protection

  • ESD safe: Meet ANSI / ESD S20.20-2021

  • Equipotential bonding: Connection to EPA

  • USB-A: Firmware update / Graphics and profiles

  • USB-B: PC communications

  • RJ12 Connector: Remote control or FAE Fume Extractor connection

  • Pedal connector: Tool control
MSE Module

  • Power: 42 W

  • Vacuum: 85 % / 640 mmHg / 25.4 inHg

  • Flow rate: 35 SLPM

  • Ambient Operating Temp: 10 - 40 °C / 50 - 104 °F

  • Pedal connector: Yes

  • Complies with CE standards: ESD safe
Weight and dimensions

  • Control Unit: 232 x 148 x 295 mm / 12.50 kg

  • Package: 700 x 410 x 390 mm / 18.55 kg
