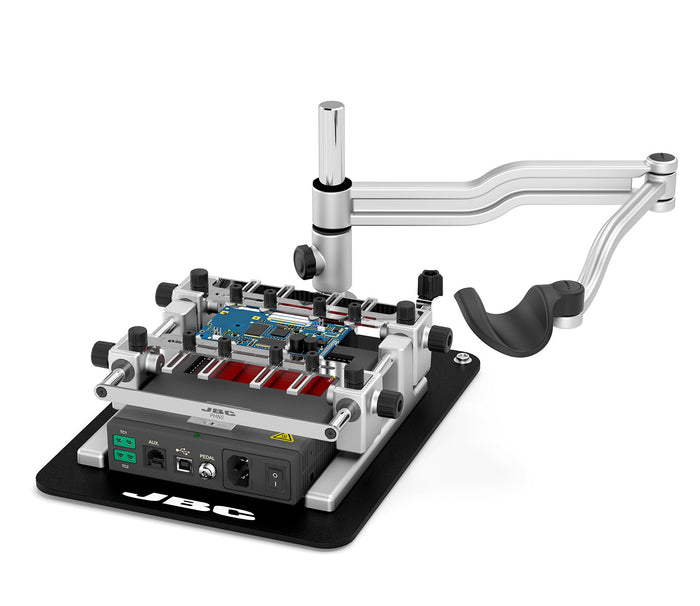

JBC RBN Rework Bench for PCBs up to 11 x 7cm / 4 x 3"
SKU: JBC-RBN-2A
RBN-2A
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
JBC RBN Rework Bench for PCBs up to 11 x 7cm / 4 x 3"
This solution facilitates complete rework of small PCBAs, such as those commonly used in smartphones.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
Discover the JBC RBN Rework Bench for PCBs up to 11 x 7cm / 4 x 3" at Mektronics Australia – your trusted source for quality tools and equipment!
-
PHNE Preheater indispensable for avoiding thermal shock on multilayer PCBAs while reworking. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in.
-
PHNS Support for PCBs allowing fast, easy and precise PCB changing, guaranteeing a proper positioning, ideal for repetitive soldering jobs.
-
RHN Articulated Hand Rest providing a point of support for the hand close to the working zone. It makes the work more comfortable and reduces fatigue, ensuring precise working processes.
-
Peak power: 300 W
-
Selectable temperature: 50 to 250 ºC / 120 to 482 ºF
-
Heating area: 108 x 70 mm / 4.25 x 2.75 in
-
Type K TC connector: 2 for Control & Protection
-
Profiles: 22 (up to 16 steps for each)
-
Set temperature profiles: 3 profiles (2, 3 or 4 steps)
-
Maximum work time: 50 min or indefinite
-
ESD safe: Meet ANSI/ESD S20.20-2021
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
Robot connector: Remote control
-
Aux. connector: Console connection
-
Pedal connector: Connect a pedal (ref. P-005) to control the heater
Weight and dimensions
-
Rework Bench: 310 x 239 x 205mm / 7.60kg / 12.20 x 9.41 x 8.07" / 16.75 lb
-
Package: 480 x 370 x 380mm / 11.20kg / 18.90 x 14.57 x 14.96" / 24.69 lb
