JBC TESE Precision Hot Air Station
SKU: JBC-TESE-2B
TESE-2B
DESCRIPTION
Contents
Specifications
Shipping & Delivery

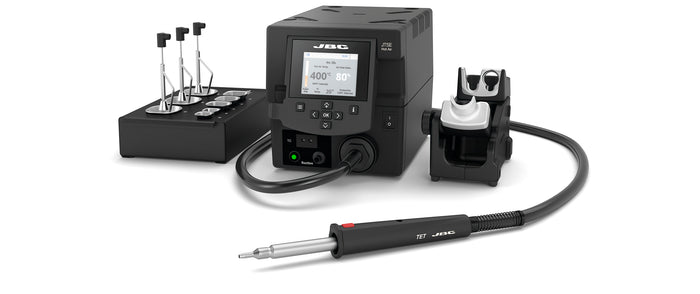

JBC TESE Precision Hot Air Station
TESE is a precision hot air station capable of reworking small and medium SMDs.
The combination of the exclusive JBC hot air system with protectors, tripods and extractors ensures desoldering components easily and safety, concentrating the heat on the selected component.
Discover the JBC TESE Precision Hot Air Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
JTSE Power Hot Air Control Unit
-
TET Precision Heater Hose Set
-
TES Stand for TET
-
ESHT Magazine for Protectors & Extractors
-
E2052 Extractor 52 (20 x 20 mm)
-
E2064 Extractor 64 (20 x 26 mm)
-
E2184 Extractor 80 (24 x 24 mm)
-
P2220 Protector 32 (10 x 10 mm)
-
P2235 Protector 24 (12 x 17 mm)
-
P4000 Protector 44 (12.5 x 12.5 mm)
-
P2230 Protector 48 (15 x 15 mm)
-
P4010 Protector 60 (17 x 17 mm)
-
T2050 Tripod Ø 39 mm
-
T2250 Tripod Ø 85 mm
-
CU110 Cups for Extractors & Tripods
-
A2330 Suction Tube for Protectors & Extractors
-
TN9209 Straight Nozzle Ø3 for TET
-
TN9208 Straight Nozzle Ø4 for TET
-
TN9080 Straight Nozzle Ø5 for TET
-
PH218 Thermocouple Type K
-
PH217 Kapton Tape
-
Nominal power: 300W
-
Selectable temperature: 150 to 450 °C / 300 to 840 °F
-
Air flow regulation: 2 to 17 SLPM
-
Vacuum: 30% / 228 mmHg / 9 inHg
-
Profiles: 25 (up to 10 steps for each), 1 preset profile
-
Type K TC connector: 1 for Control & Protection
-
ESD safe: Meet ANSI / ESD S20.20-2021
-
Equipotential bonding: Connection to EPA
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
Pedal connector: Tool control
-
Control Unit: 232 x 148 x 160mm / 4.72kg
-
Package: 490 x 485 x 278mm / 5.68kg
