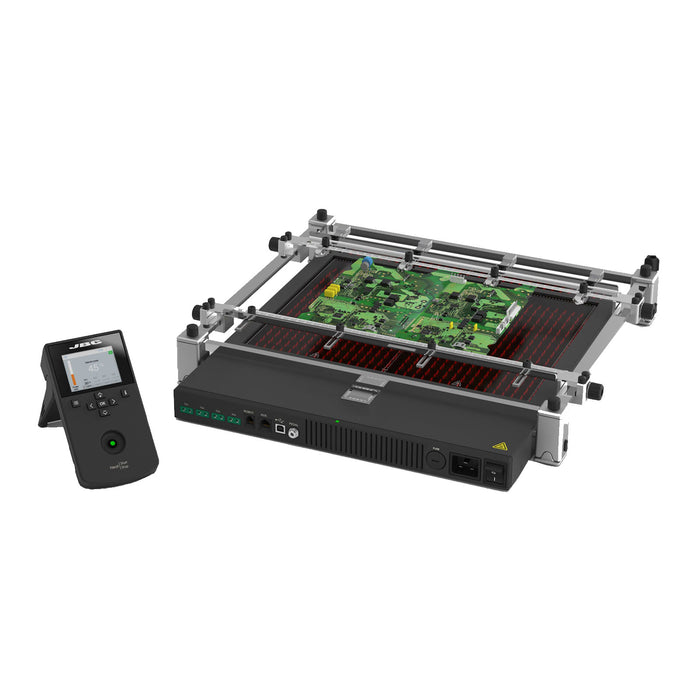

JBC PHBE-2KB Large Preheater Set 230V
Image for Illustrative Purposes Only
JBC Logo

JBC PHBE-2KB Large Preheater Set 230V

SKU: JBC-PHBE-2KB

PHBE-2KB

$7,746.48

EX. GST
$8,521.13
INC GST
Out of stock: Available to order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Contents
Specifications
Shipping & Delivery

JBC PHBE-2KB Large Preheater Set 230V

Indispensable for avoiding thermal shock on multilayer PCBs while reworking.

Its composition, Preheater and PCB Support, is a complete solution to rework medium / large PCBAs, such as the ones commonly used in laptops or PCB panels. It features a heating area of 360 x 277 mm / 14.2 x 10.9 in. and four TC connections.

Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.

It features three work modes:

Power Mode allows working at a fixed power level with the option of using protection thermocouple.

Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.

Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.

Up to four thermocouples can be connected in any of the three work modes.

PHBS Support is perfectly adapted to any type of PCBs by means of its many adjustable components and its 3 adjustable clearance positions 28, 38 or 48 mm / 1.1, 1.5 or 1.9 in.

Discover the JBC PHBE-2KB Large Preheater Set 230V at Mektronics Australia – your trusted source for quality tools and equipment!

  • 1 x Heater Unit

  • 1 x Console

  • 1 x PHBS Support for PCBs up to 36 x 28cm / 14 x 11"

  • 2 x PH218 Thermocouple Type K

  • 1 x PH217 x Kapton Tape

  • Peak Power: 1800W (120V & 230V) / 1400W (100V)

  • Selectable temperature: 50 to 250 ºC / 120 to 482 ºF

  • Heating area: 180 x 277 mm / 7.1 x 10.9 in - 1 zone; 360 x 277 mm / 14.2 x 10.9 in -2 zones

  • Type K TC connector: 4 for Control & Protection

  • Profiles: 22 (up to 16 steps for each), 3 preset profiles

  • Maximum work time: 50 min or indefinite

  • ESD safe: Meet ANSI/ESD S20.20-2021

  • USB-A: Firmware update; Graphics and profiles

  • USB-B: PC communications

  • Robot connector: Remote control

  • Aux. connector: Console connection

  • Pedal Connector: Connect a pedal (ref. P-005) to control the heater

  • Dimensions: 426 x 444 x 41mm / 9.70kg (preheater unit)
