JBC Micro Tweezers Station CP-2QF

SKU: JBC-CP-2QF

CP-2QF

$1,578.22

EX. GST
$1,736.04
INC GST
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

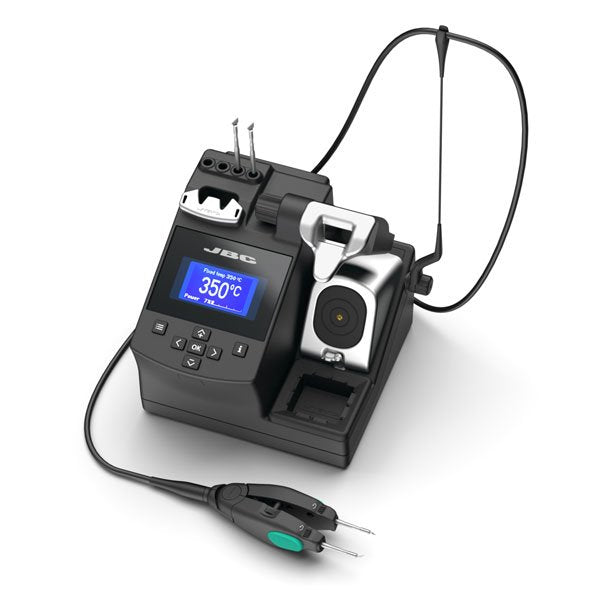

JBC Micro Tweezers Station CP-2QF

More intuitive and well-connected

The best solution for soldering and rework of SMD components such as chips, small/medium SOP components and dual line components.

It uses the AM120-A Adjustable Micro Tweezers for fast and precise SMD rework which requires the highest precision.

The new F version includes:

  • Fast and easy configuration of the station thanks to the 7-key keypad

  • Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector

  • Connectivity to JBC Fume Extractor (connector RJ12)

It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the Sleep & Hibernation Modes help to extend the life of tips.

Discover the JBC Micro Tweezers Station CP-2QF at Mektronics Australia – your trusted source for quality tools and equipment!

  • Selectable Temperature: 90 to 450 ºC / 190 to 840 ºF

  • Idle temp. stability (still air): ±1.5 ºC ( ±3 ºF) Meets and exceed IPC J-STD-001F

  • Temp accuracy" ±3% ( using reference cartridge)

  • Temp adjustment: ±50 ºC ( ±90 ºF) Through station menu setting

  • CONNECTIVITY

  • USB-B: Software PC / Firmware update

  • RJ12 Connector Earthing Fuse: F 1.25A

  • ESD/EOS

  • ESD safe

  • Tip to ground vol./ resist.: Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

  • POWER SUPPLY: Peak power 80 W - 23.5 V; Ambient operating temp. 10 to 50 ºC / 50 to 122 ºF
Dimensions & Weight
  • Compact Stations: 145 x 150 x 175 mm / 2.70 kg, 5.71 x 5.91 x 6.89 in / 5.96 lb.

  • Package: 234 x 234 x 258 mm / 3.14 kg, 9.21 x 9.21 x 10.16 in / 6.92 lb.

Product Composition
  • 1 x control unit

  • 1 x AM120-A Adjustable Micro Tweezers (cartridge not included)
