JBC PHBE for PCBs up to 36 x 28cm/14 x 11" 230V PHBE-2B
SKU: JBC-PHBE-2B
PHBE-2B
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC PHBE for PCBs up to 36 x 28cm/14 x 11" 230V PHBE-2B
Indispensable for avoiding thermal shock on multilayer PCBs while reworking.

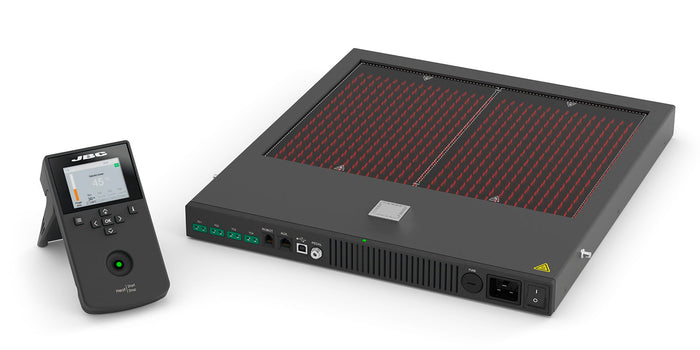

It is a complete solution to rework medium / large PCBAs, such as the ones commonly used in laptops or PCB panels. It features a heating area of 360 x 277 mm / 14.2 x 10.9 in. and four TC connections.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 25 profiles of temperature.
Up to four thermocouples can be connected in any of the three work modes.
Discover the JBC PHBE for PCBs up to 36 x 28cm/14 x 11" 230V PHBE-2B at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
Heater unit
-
Console
-
2 x PH218 Thermocouple Type K
-
PH217 Kapton Tape
-
Peak power: 1800W (120V & 230V), 1400W (100V)
-
Selectable temperature: 50 to 250 ºC / 120 to 482 ºF
-
Heating area: 180 x 277mm / 7.1 x 10.9" - 1 zone, 360 x 277mm / 14.2 x 10.9" - 2 zones
-
Type K TC connector: 4 for Control & Protection
-
Profiles: 22 (up to 16 steps for each)
-
Set temperature profiles: 3 profiles (2, 3 or 4 steps)
-
Maximum work time: 50 min or indefinite
-
ESD safe: Meet ANSI/ESD S20.20-2021
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
Robot connector: Remote control
-
Aux. connector: Console connection
- Pedal connector: Connect a pedal (ref. P-005) to control the heater
Weight and dimensions
-
PreHeater Unit: 426 x 444 x 41mm / 6.90kg, 16.77 x 17.48 x 1.61" / 15.21 lb.
-
Package: 705 x 625 x 365mm / 12.60kg, 27.76 x 24.61 x 14.37" / 27.78 lb.
