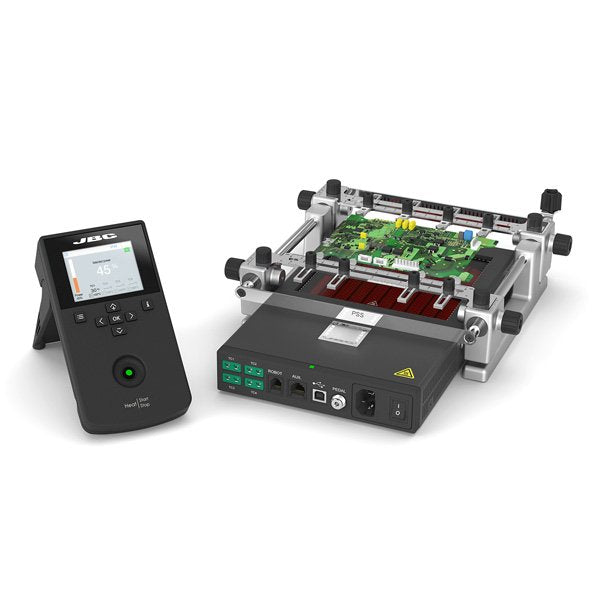

JBC IR Preheater Set 230V
Image for Illustrative Purposes Only
JBC Logo

JBC IR Preheater Set 230V

SKU: JBC-PHSE-2KB

PHSE-2KB

$3,027.55

EX. GST
Regular price $5,462.09
$3,330.31
INC GST
Regular price $5,462.09
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

JBC IR Preheater Set 230V

  • PHSK Small Preheater Set is the best solution for rework on small / medium PCBAs, such as the once commonly used in electronic industries. It features a heating area of 130 x 135 mm / 5.12 x 5.31 in and four TC connections.

  • Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.

  • The Preheater can be operated easily and conveniently via the intuitive menu navigation.

  • It features three work modes:

  • Power Mode allows working at a fixed power level with the option of using protection thermocouple.

  • Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.

  • Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.

  • Up to four thermocouples can be connected in any of the three work modes.

  • PSS Small PCB Support is perfectly adapted to any type of PCBs by means of its many adjustable components and its 3 adjustable clearance positions 28, 50 or 70 mm / 1.1, 2 or 2.8 in.

  • By means of JBC Software, the Preheater can be synchronized with other JBC Hot Air, Soldering Stations as well as Fume Extractor equipment in order for them to work jointly and to perform your rework process optimally.

Product Composition

  • PSS Small PCB Support

  • PHS Small Preheater

  • PH218 Thermocouple Type K

  • PH217 Kapton tape

Discover the JBC IR Preheater Set 230V at Mektronics Australia – your trusted source for quality tools and equipment!

  • Net weight: 4,78 kg (10.54lb)

  • Dimensions (Heater Unit): 195 x 288 x 41 mm (7.7 x 11.3 x 1.6 in)

  • Voltage: 230 V

  • Maximum power: 500W

  • Heating area: 65 x 135 mm (2.6 x 5.3 in) - 1 zone / 130 x 135 mm (5.1 x 5.3 in) - 2 zones

  • Temperature range: 50 to 250 ºC (120 to 482 ºF)

  • Temperature measurement: Thermocouple type K

  • JBC-Set temperat. profiles: 3 profiles ( 2, 3 or 4 steps)

  • User temperature profiles: 22 (up to 6 steps for each)

  • Maximum work time: 600 min. or indefinite

  • Fuse: 8 A T (100V & 120V), 4 A T (230V)
