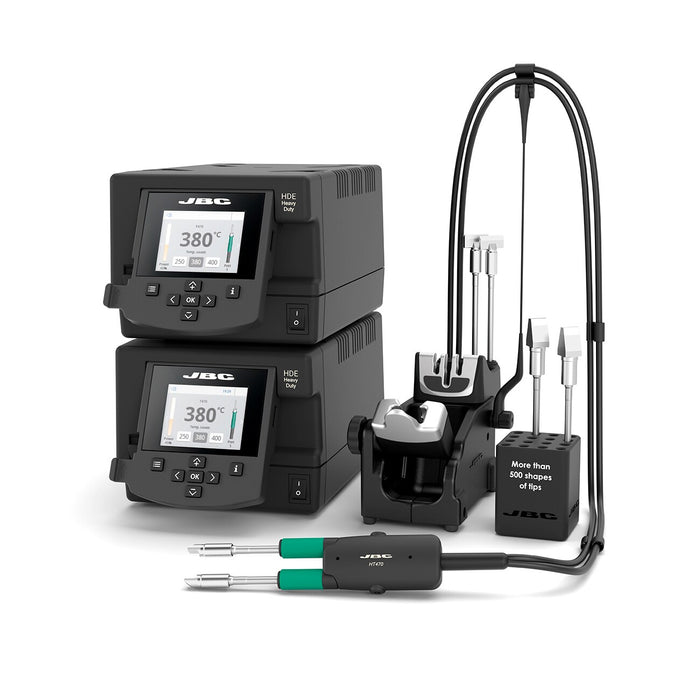

JBC Heavy Duty Rework Station HDE-2KE
SKU: JBC-HDE-2KE
HDE-2KE
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC Heavy Duty Rework Station HDE-2KE
HDP Heavy Duty Tweezers Station has been designed to reduce the soldering time in applications that require a large amount of heat span.
Some examples of applications are: coaxial cable shields soldering in telecommunication antennas, soldering of large copper conductors in medical imaging scanners, battery terminals, large-size capacitors, etc.
This station is supplied with 2 HDU Control Units, the most powerful soldering unit in the JBC range, and with HT470 HD Thermal Tweezers which use C470 Cartridge Range.
The Control Unit provides the best soldering quality thanks to JBC Exclusive Heating System and, additionally, the intelligent Sleep & Hibernation Modes help to extend life of tips. It also allows direct connection with JBC Fume Extractors.
Additionally, includes SCH Cartridge Holder to store up to 16 cartridges and tips nearby.
Discover the JBC Heavy Duty Rework Station HDE-2KE at Mektronics Australia – your trusted source for quality tools and equipment!
-
2 x HDE Heavy Duty Control Unit
-
1 x HT470 Heavy Duty Thermal Tweezers (cartridge not included)
-
1 x HDTS Stand for HT470
-
1 x SCH for Cartridge & Tips Holder
-
Selectable temperature: 90 to 500 ºC / 190 to 932 ºF
-
Idle temp. stability (still air): ±1.5ºC (±3ºF), meets and exceed IPC J-STD-001F
-
Temperature accuracy: ±3% ( using reference cartridge)
-
Temperature adjustment: ±50ºC (±90ºF), through station menu setting
-
Connectivity - USB-B: Software PC / Traceability
-
USB-A: Firmware update Soldering Graphics management
-
RJ12 Connector: ESD/EOS
-
Tip to ground vol./ resist.: Meets and exceed, ANSI/ESD S20.20-2014 IPC J-STD-001F
-
Power supply peak power: 250 W - 42 V
-
Operating temp. range: 10 to 50 ºC / 50 to 120 ºF
-
Dimensions: 585 x 512 x 220 mm
