JBC FAE1-2K1D Fume Extractor Kit 1WB 230V
SKU: JBC-FAE1-2K1D
FAE1-2K1D
DESCRIPTION
Contents
Specifications
Shipping & Delivery

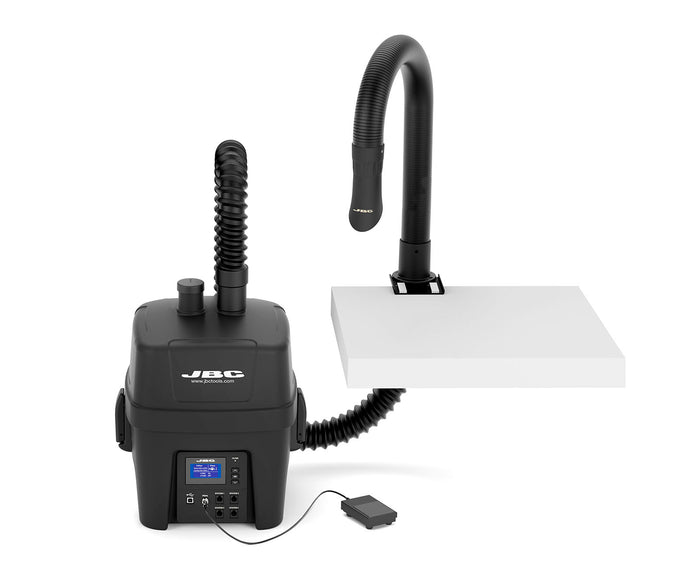

JBC FAE1-2K1D Fume Extractor Kit 1WB 230V
FAE is the most effective solution to avoid exposure to solder fumes. Fume extraction starts up when the tool is lifted from the stand, operating only when soldering. This function saves power and extends filter life.
Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.
It includes:
-
FAE1100 Filter (FAE1110 Pre-filter + HEPA H13 + Carbon). This three-layered system achieves a certified efficiency of 99.95% in filtering soldering fumes, meeting EN 1822 standards.
-
FAE010 - a flexible extraction hose which connects FAE1 to FAE022 or FAE072 Flexible Arms.
-
FAE072 - a completely flexible arm to be fixed to your workbench by a clamp.
-
P405 allowing you to activate the vacuum system without connection to a JBC Station.
Discover the JBC FAE1-2K1D Fume Extractor Kit 1WB 230V at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
P405 Pedal
-
FAE1100 Filter with HEPA H13 for FAE1
-
FAE1 Fume Extractor with FAE1100 for 1 Workbench
-
FAE010 Flexible Hose
-
FAE072 Flexible Arm with Clamp
-
Blower type: Brushless
-
Max. flow rate: 230m3/h (135 CFM)
-
Max. vacuum: 3.2 kPa (0.46 psi) - 100 V / 4.3 kPa (0.62 psi) - 120 V / 6 KPa (0.87 psi) - 230 V
-
Work areas: 1 or 2
-
Noise Level: 55 dB @ 1m
-
ESD safe: Meet ANSI/ESD S20.20
-
Pre-filter: Medium Dust Filter M5 (EN 779)
-
Compact filters: HEPA filter H13 (EN 1822) and Active Carbon filter
-
Connections: USB-B / Pedal connector / Station connectors RJ12 (4x)
- Input power: 200W. Fuse 4A - 100 V / 270W. Fuse 4A - 120 V / 300W. Fuse 2.5A - 230 V
Weight and dimensions
-
Unit: 380 x 340 x 475 mm / 13.90 kg
- Package: 620 x 460 x 715 mm / 20.42 kg
