Image for Illustrative Purposes Only
JBC FAE1 Fume Extractor with FAE1100 for 1 Workbench
SKU: JBC-FAE1-2C
FAE1-2C
DESCRIPTION
Inclusions
Specifications
Shipping & Delivery

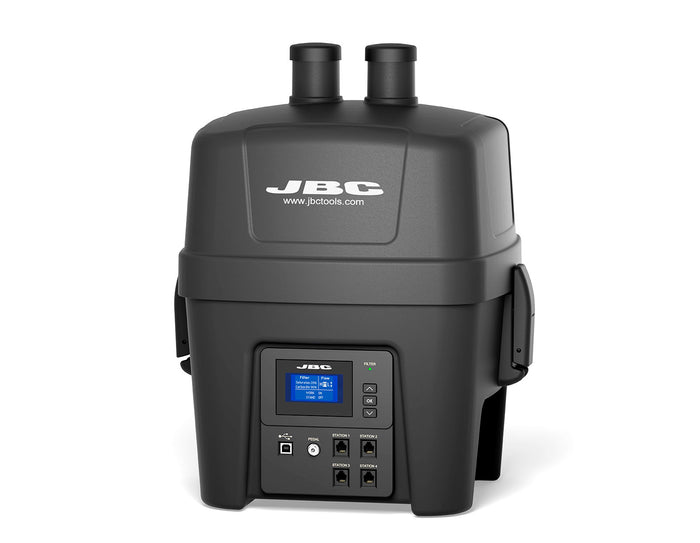

JBC FAE1 Fume Extractor with FAE1100 for 1 Workbench
FAE1 is the most effective solution to avoid exposure to solder fumes. FAE1 only operates when soldering and features a unique vacuum system integrated into the stand.
Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.
It consists of FAE1100 Filter (FAE1110 Pre-filter and HEPA H13 + Carbon). This three-layered system achieves a certified efficiency of 99.95% in filtering soldering fumes, meeting EN 1822 standards.
FAE1 can be controlled via JBC Stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).
Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.
It consists of FAE1100 Filter (FAE1110 Pre-filter and HEPA H13 + Carbon). This three-layered system achieves a certified efficiency of 99.95% in filtering soldering fumes, meeting EN 1822 standards.
FAE1 can be controlled via JBC Stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).
Discover the JBC FAE1 Fume Extractor with FAE1100 for 1 Workbench at Mektronics Australia – your trusted source for quality tools and equipment!
-
Blower type: Brushless
-
Max. flow rate: 230m3/h (135 CFM)
-
Max. vacuum: 3.2 kPa (0.46 psi) for 100 V / 4.3 kPa (0.62 psi) for 120 V / 6 KPa (0.87 psi) for 230 V
-
Work areas: 1 or 2
-
Noise Level: 55 dB @ 1m
-
ESD safe: Meet ANSI/ESD S20.20-2014
-
Pre-filter: Medium dust filter M5 (EN 779)
-
Compact filters: HEPA filter H13 (EN 1822) and Active Carbon filter
-
Connections: USB-B, Pedal connector, Station connectors (4x)
-
Input power: 95W. Fuse 2A (100 V), 110W. Fuse 2A (120 V), 110W. Fuse 1.25A (230V)
Weight and dimensions
-
Unit: 380 x 340 x 475mm / 10.87kg / 14.96 x 13.39 x 18.70" / 23.96 lb
- Package: 425 x 425 x 545mm / 12.90kg / 16.73 x 16.73 x 21.46" / 28.44 lb
