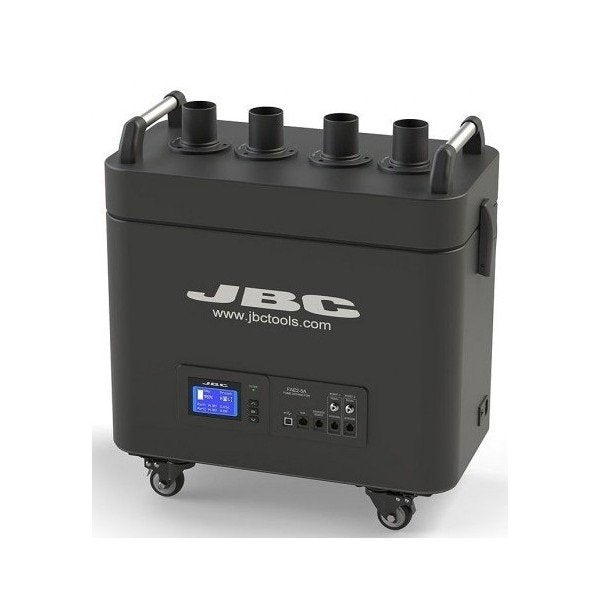

JBC FAE2-5B Fume Extractor




Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

Shipping & Delivery

JBC FAE2-5B Fume Extractor

  • FAE is the most effective solution to avoid exposure to solder fumes. The extractor activates and operates only when soldering.

  • The extractor starts up only when soldering. This function not only saves power, but also extends the life span of the equipment, including the filter.

  • FAE2 stand has an integrated vacuum system that detects when the tool is at rest and automatically absorbs excess fumes.

  • It can be controlled via JBC Stations, a pedal, a robotic system or a PC.

  • It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).

Discover the JBC FAE2-5B Fume Extractor at Mektronics Australia – your trusted source for quality tools and equipment!

  • Aspiration flow rate: Low / Medium / High / Custom

  • Operation modes: Automatic (JBC Stations), Continuous, Pedal

  • Blower type: Brushless

  • Max. flow rate: 290m3/h (170.7 CFM)

  • Max. vacuum: 6.1 KPa (0.88 psi)

  • Work areas: 2

  • Noise Level: 54 dB @ 1m

  • Pre-filter: Medium dust filter M5 (EN 779)

  • Compact filters: H13 particle filter (EN 1822) + activated carbon filter

  • ESD Safe


  • USB-B: Firmware update

  • RJ12 Connector: Direct connection for 4 stations

  • Pedal: Up to 2 tools control

Power Supply

  • Peak Power: 400 W (120V-230V), 320 W (120V)

  • Operating Temp Rate: 10 to 40 ºC / 50 to 104 ºF


  • Unit: 560 x 320 x 590mm / 33.60kg

  • Package: 725 x 485 x 760mm / 36.00kg
